RF Amplifier (9KHz-3GHz)

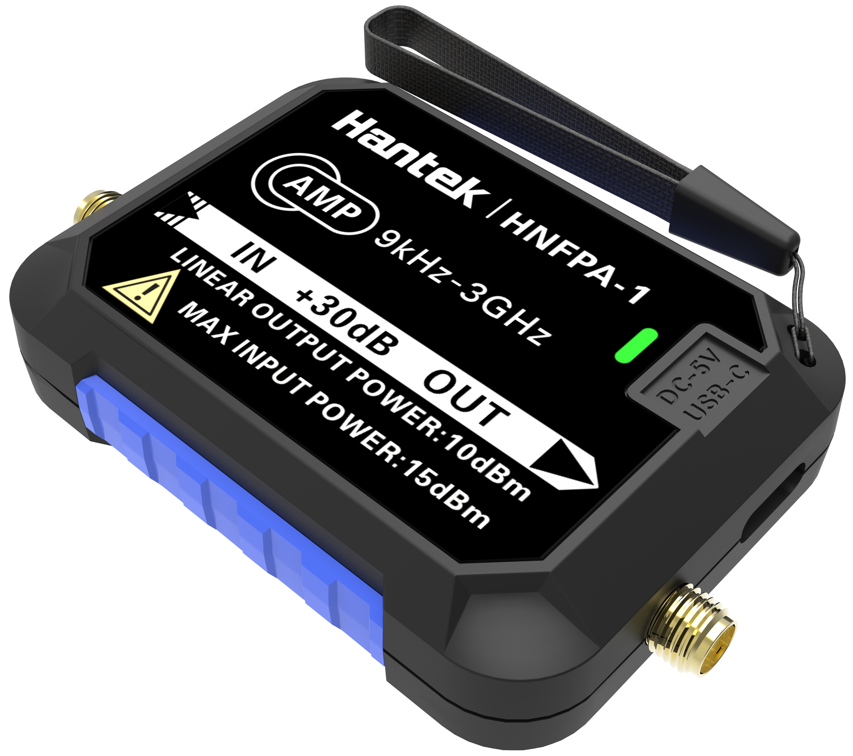

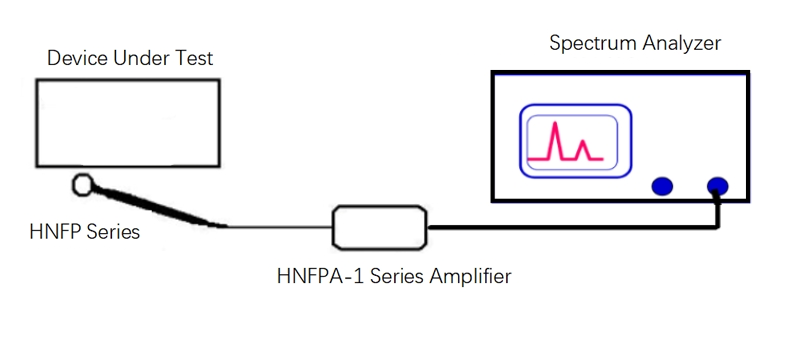

HNFPA-1 preamplifier with our HNFP series of near-field probes, mainly for the test of the weak signal amplification, the frequency range of 9kHz-3GHz; HNFPA-1 gain of about 30dB, can greatly improve the sensitivity of the system test. Standard with USB adapter and USB boost power adapter cable, you can directly through the spectrum analyser or receiver comes with the USB interface power supply, more convenient to use. With the company's HNFP series of near-field probe can quickly and accurately determine the source of electromagnetic interference, to avoid blind changes in EMI design, can significantly improve product development efficiency and reduce development costs.

Overview
Parameters
Comparison
Accessories
Download
Probe
Video

Frequency range 9kHz - 3GHz
Typical gain approx. 30dB
Maximum input power 15dBm

Model	HNFPA-1
Frequency Range	9KHz-3GHz
Typical Gain	30dB
Flatness	±1.5dB

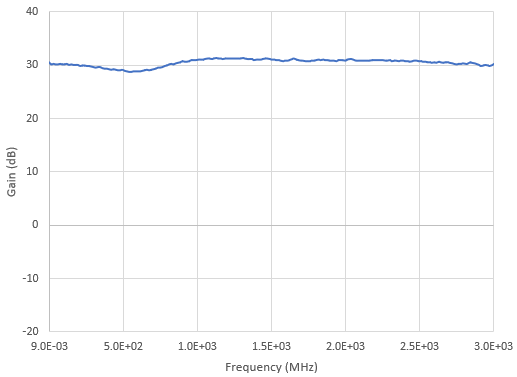

Amplitude-frequency Curve	Figure below
Maximum Linear Output Power	10dBm
Typical noise figure @2GHz	4dB
Maximum Input Power	15dBm
Operating Voltage	DC12V
Input-Output interface	SMA (Female)
Dimension	Approx. 664816mm

APPLICATIONS

EMI source location test systems

Small Signal Amplification

Model	HNFPA-1
Frequency Range	9KHz-3GHz
Typical Gain	30dB
Flatness	±1.5dB
Amplitude-frequency Curve	Figure below
Maximum Linear Output Power	10dBm
Typical noise figure @2GHz	4dB
Maximum Input Power	15dBm
Operating Voltage	DC12V
Input-Output interface	SMA (Female)
Dimension	Approx. 664816mm

【Tip: up to 4 products can be compared】

Select	Model	Bandwidth	Channels	Sampling rate	Other
	HSA2016 Series	9KHz-1.6GHz	RF IN + TG OUT	--	Frequency range 9KHz-1.6GHz， Sensitivity -161dBm， RBW:10Hz~1MHz, FMAM audio demodulator frequency counter
	HSA2030 Series	9KHz-3.2GHz	RF IN + TG OUT	--	Frequency range 9KHz-3.2GHz， Sensitivity -161dBm， RBW:10Hz~1MHz, FMAM audio demodulator frequency counter
	High Frequency Magnetic Field Probes (30MHz to 3GHz)	30MHz to 3GHz	4 probe shapes	Resolution: HNFP-1: 25mm HNFP-2: 10mm HNFP-3: 5mm HNFP-4: 2mm	Accurate testing of high-frequency magnetic fields (H), effective shielding of electric field interference (E) Electromagnetic compatibility rectification, accurate positioning of magnetic field interference sources
	Low Frequency Magnetic Field Probes (9kHz-50MHz)	9kHz-50MHz	3 probe shapes	Resolution: HNFP-5: 25mm HNFP-6: 10mm HNFP-7: 25mm	Accurate testing of low-frequency magnetic fields (H), effective shielding of electric field interference (E)
	High Frequency Electric Field Probes (30MHz to 3GHz)	30MHz～3GHz	2 probe shapes	--	Accurate testing of electric field (E) Electromagnetic compatibility rectification with precise location of electric field interference sources
	RF Amplifier (9KHz-3GHz)	9KHz-3GHz	IN:1 OUT:1	Typical Gain: 30dB Flatness: ±1.5dB Maximum Linear Output Power: 10dBm Maximum Input Power: 15dBm	Used to amplify the weak signals to be tested Improves the sensitivity of the system to be tested Comes standard with USB adapter and USB boost power adapter cable

Standard Accessories

Power Adapter

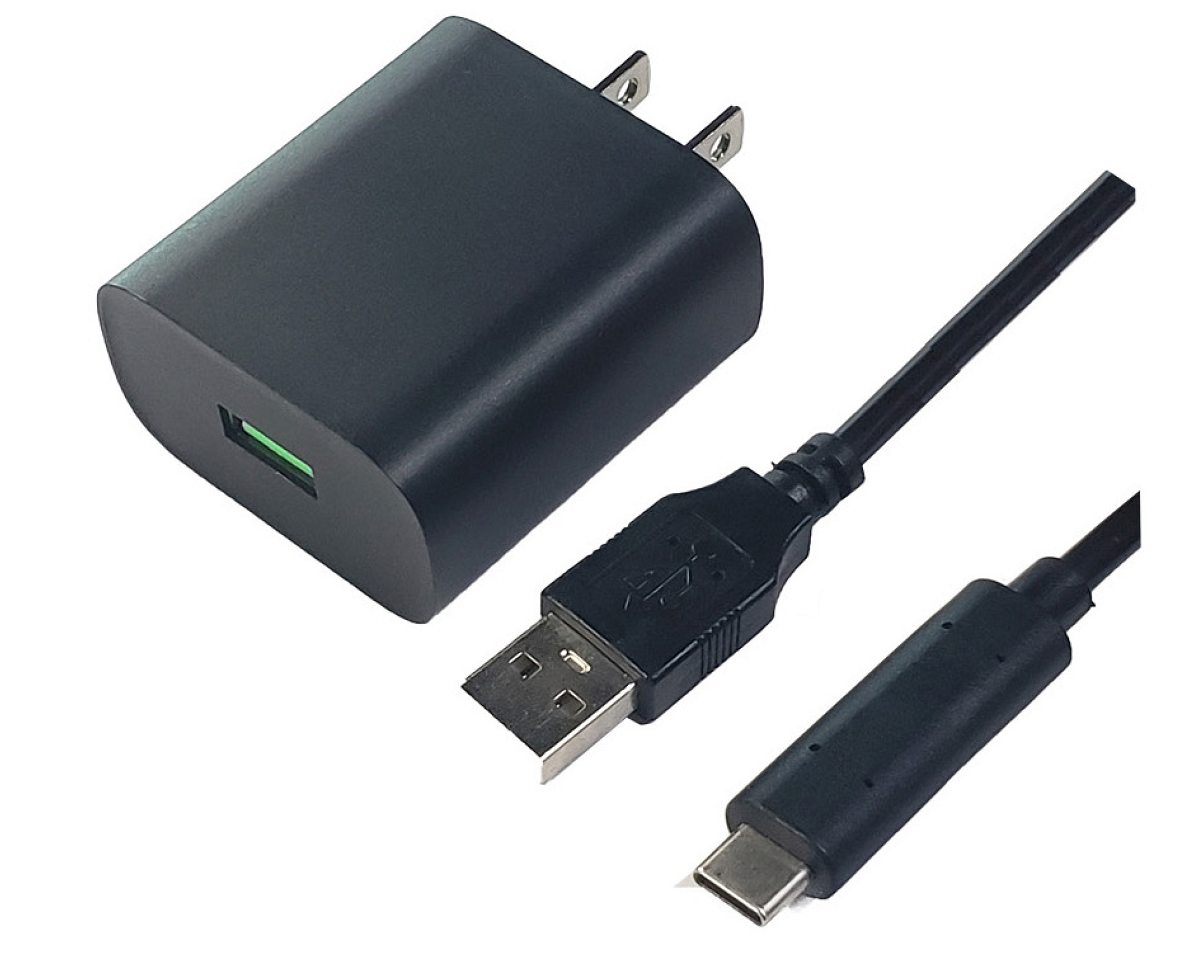

Power Adapter*1, Type-C Charging Cable*1

Adaptor

SMA(Male) to N Connector*2
