DSO5000B Series
Feature:

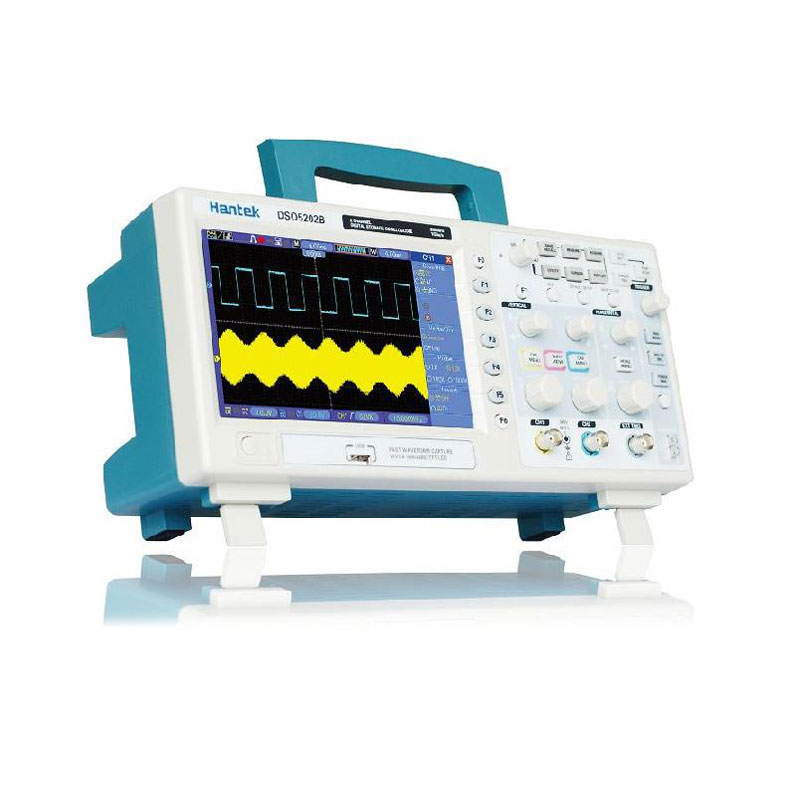

Function Picture:
|
|
|
|
|
|
|
|
|
|
 |
 |
Detailed technical index please refer to "DSO5000B Series Datasheet"
Model
DSO5202B
DSO5102B
DSO5062B
Acquisition
Sample Rate
Real-Time Sample: 1GS/s
Equivalent Sample: 25GS/s
Acquisition Modes
Normal
Normal data only
Peak Detect
High-frequency and randon glith capture
Average
Wavefom Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling
AC, DC, GND
Inpits Impendance
1MΩ±2% ‖20pF±3pF
Probe Attenuation
1X, 10X
Supported Probe Attenuation Factor
1X, 10X, 100X, 1000X
Maximum Input Voltage
CAT I and CAT II: 300VRMS (10×), Installation
Category;
CAT III: 150VRMS (1×);
Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC
at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less
than 450V. Excursion above 300V should be of less than 100ms duration. RMS
signal level including all DC components removed through AC coupling must be
limited to 300V. If these values are exceeded, damage to the oscilloscope may
occur.
Horizontal
Sample Rate Range
500MS/s--1GS/s
Waveform Interpolation
(sin x)/x
Record Length
Maximum 1M samples per single-channel;
maximum 512K samples per
dual-channel (4K,40K optional)
SEC/DIV Range
2ns/div
to 40s/div
Sample Rate and
Delay Time Accuracy
±50ppm（at over any ≥1ms time interval)
Position Range
2ns/div
to 8ns/div;
(-8div x s/div) to 20ms;
20ns/div to 80us/div; (-8div x s/div) to 40ms;
200us/div to 40s/div; (-8div x s/div) to 400s
Delta Time Measurement Accuracy
(Full Bandwidth)
Single-shot, Normal mode:± (1 sample interval
+100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200
Vertical
Vertical Resolution
8-bit resolution, all channel sampled
simultaneously
Offset Range
2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V
500mV/div to 2V/div, ±40V; 5V/div to 10V/div, ±50V
Bandwidth
200MHz
100MHz
60MHz
Rise Time at BNC( typical)
1.8ns
3.5ns
5.8ns
Math
+, -, *, /, FFT
FFT
Windows: Hanning, Flatop, Rectamgular,
Bartlett, Blackman;
1024 sample point
Bandwidth Limit
20MHz
Low Frequency Response (-3db)
≤10Hz at BNC
DC Gain Accuracy
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
DC Measurement Accuracy,
Average Acquisition Mode
When vertical displacement is zero, and N ≥16:±
(3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected;
When vertical displacement is not zero, and N≥16: ± [3% × (reading +
vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings
from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 10V/div
Volts Measurement Repeatability,
Average Acquisition Mode
Delta volts between any two averages of ≥16
waveforms acquired under same setup and ambient conditions
Trigger System
Trigger Types
Edge,
Video, Pulse, Slope, Over time, Alternative
Trigger Source
CH1,
CH2, EXT, EXT/5, AC Line
Trigger Modes
Auto,
Normal, Single
Coupling Type
DC,
AC, Noise Reject, HF Reject, LF Reject
Trigger Sensitivity
(Edge Trigger Type)
DC(CH1,CH2):
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to
Full;
DC(EXT):
200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;
DC(EXT/5):
1V from DC to 100MHz;1.75V from 100MHz to 200MHz;
AC: Attenuates signals below 10Hz;
HF Reject: Attenuates signals above 80kHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150kHz;
attenuates signals below 150kHz
Trigger Level Range
CH1/CH2:
±8 divisions from center of screen;
EXT: ±1.2V;
EXT/5:±6V
Trigger Level Accuracy( typical)Accuracy is for signals having
rise and fall times ≥20ns
CH1/CH2:
0.2div × volts/div within ±4 divisions from center of screen;
EXT: ± (6% of setting + 40mV);
EXT/5: ± (6% of setting + 200mV);
Set Level to 50%(typical)
Operates
with input signals ≥50Hz
Video Trigger
Video Trigger Type
CH1,
CH2: Peak-to-peak amplitude of 2 divisions;
EXT: 400mV;
EXT/5: 2V
Signal Formats and Field Rates, Video Trigger Type
Supports
NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range
100ns
~ 10s
Pulse Width Trigger
Pulse Width Trigger Mode
Trigger
when (< , >, = , or ≠); Positive pulse or Negative pulse
Pulse Width Trigger Point
Equal:
The oscilloscope triggers when the trailing edge of the pulse crosses the
trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger
point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse
continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when
a pulse continues longer than the time specified as the Pulse Width
Pulse Width Range
20ns
~ 10s
Slope Trigger
Slope Trigger Mode
Trigger
when (< , > , = , or ≠ ); Positive slope or Negative slope
Slope Trigger Point
Equal:
The oscilloscope triggers when the waveform slope is equal to the set
slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal
to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than
the set slope.
Greater than: The oscilloscope triggers when the waveform slope is greater
than the set slope.
Time Range
20ns ~ 10s
Overtime Trigger
Over Time Mode
Rising
edge or Falling edge
Time Range
20ns
~ 10s
Alternative Trigger
Trigger on CH1
Internal
Trigger: Edge, Pulse Width, Video, Slope
Trigger on CH2
Internal
Trigger: Edge, Pulse Width, Video, Slope
Trigger Frequency Counter
Readout Resolution
6
digits
Accuracy (typical)
±30ppm
(including all frequency reference errors and ±1 count errors)
Frequency Range
AC
coupled, from 4Hz minimum to rated bandwidth
Signal Source
Pulse
Width or Edge Trigger modes: all available trigger sources
The Frequency Counter measures trigger source at all times, including when
the oscilloscope acquisition pauses due to changes in the run status, or
acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant
magnitude inside the 1s measurement window that qualify as triggerable
events, such as narrow pulses in a PWM pulse train if set to < mode and
the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient
magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work.
Measure
Cursor Measurement
Voltage
difference between cursors: △V
Time difference between cursors: △T
Reciprocal of △T in
Hertz (1/ΔT)
Auto Measuerment
Frequency,
Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time,
+Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase,
Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot,
RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
Display
Display Type
7
inch 64K color TFT (diagonal liquid crystal)
Display Resolution
800
horizontal by 480 vertical pixels
Display Contrast
Adjustable
(16 gears) with the progress bar
Probe Compensator Output
Output Voltage( typical)
About
5Vpp into ≥1MΩ load
Frequency(typical)
1kHz
Power Supply
Supply Voltage
100-120VACRMS(±10%),
45Hz to 440Hz, CATⅡ
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power Consumption
<30W
Fuse
2A, T
rating, 250V
Environmental
Temperature
Operating:
32℉ to 122℉ (0℃ to 50℃);
Nonoperating: -40℉ to
159.8℉ (-40℃ to +71℃)
Cooling Method
Convection
Humidity
+104℉ or below (+40℃ or below): ≤90% relative
humidity;
106℉ to 122℉ (+41℃ to 50℃):
≤60% relative humidity
Altitude
Operating:
Below 3,000m (10,000 feet);
Nonoperaring: Below 15,000m(50,000 feet)
Mechanical
Size
Length
385mm, Width 200mm, Height 245mm
Weight
3.5KG(with
Packing); 2.08KG(without Packing）
