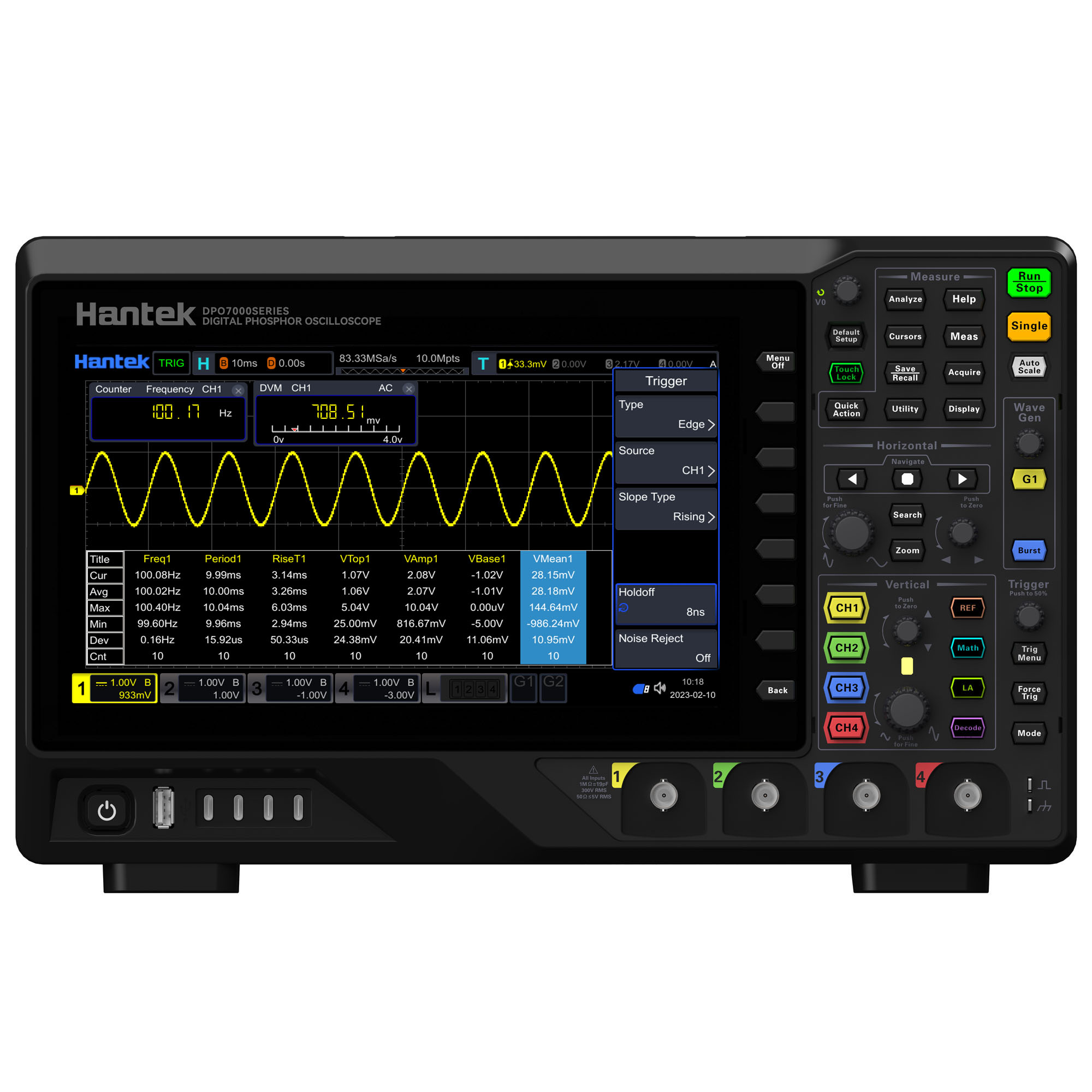

DPO7000 Series - Hantek Electronic & Your testing solution provider

Set 7 independent instruments in one, including: oscilloscope / 16-channel logic analyzer/spectrum analyzer/arbitrary wave generator/digital voltmeter / 6-bit frequency meter and accumulator/protocol analyzer;

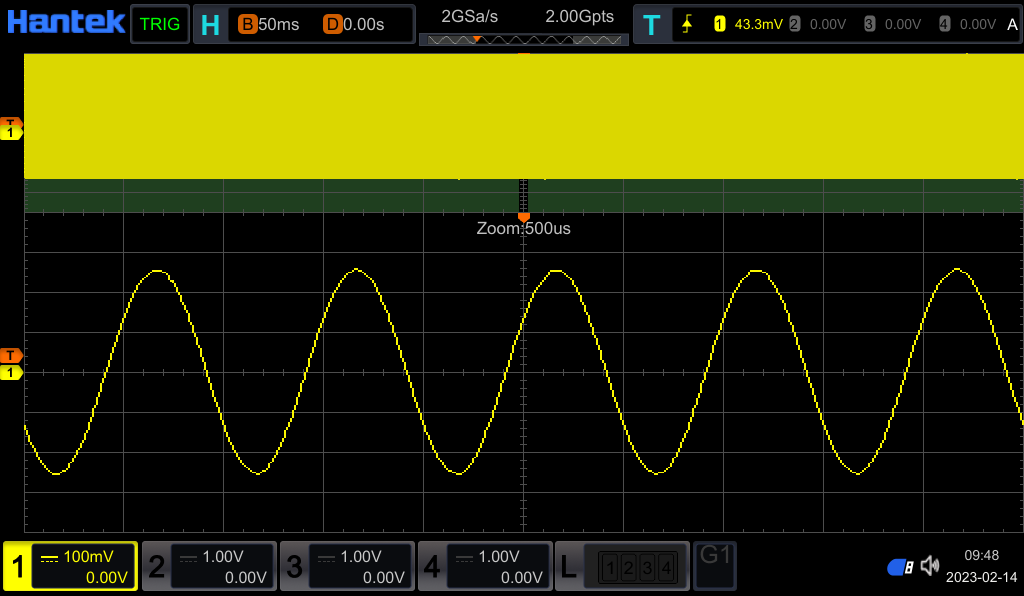

Real-time sampling rate up to 2GSa/s, 2G memory depth, hardware real-time waveform recording and playback up to 2 million frames;
10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
Rich serial protocol triggering and decoding functions;
Waveform capture rate is higher than 500,000 waveforms per second;

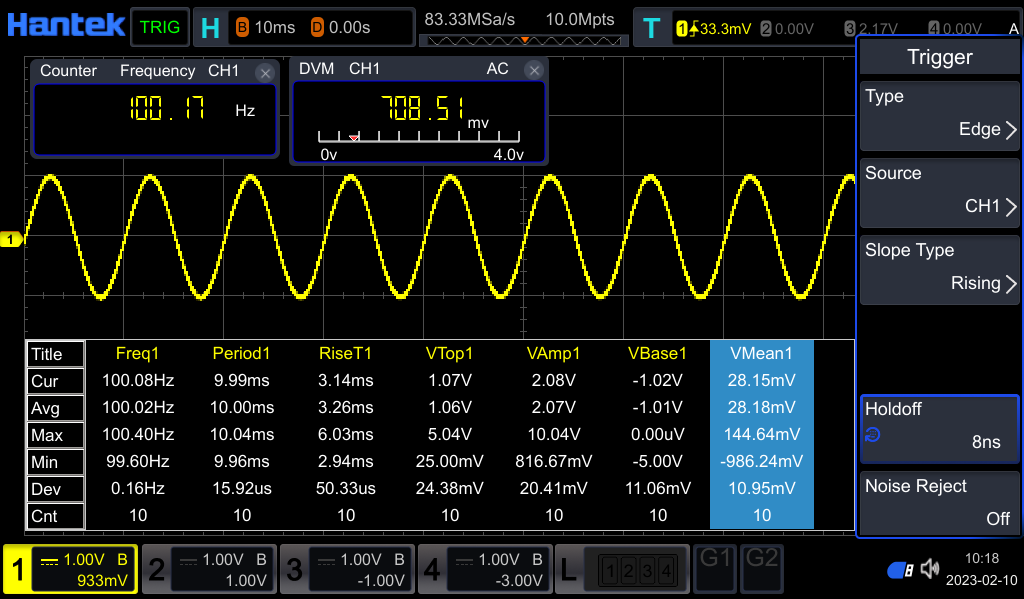

Up to 51 kinds of waveform parameters are automatically measured, and full memory hardware measurement function is also provided;
Multiple data analysis and processing functions: independent search, navigation keys and event list, histogram, baud chart, power analysis, counter.

2G memory depth

Ultra-long memory depth of 2G. Fully understand waveform overall and details, will not lose any accidental events and waveform changes.

Serial bus triggering and decoding

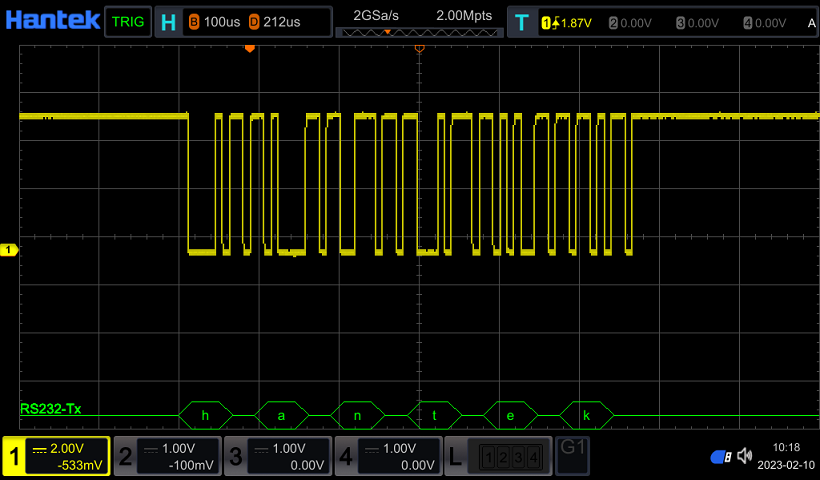

Provides bus triggering and decoding functions, supports multiple protocols RS232, I2C, SPI, LIN, CAN and can decode and display bus protocol information quickly and intuitively.

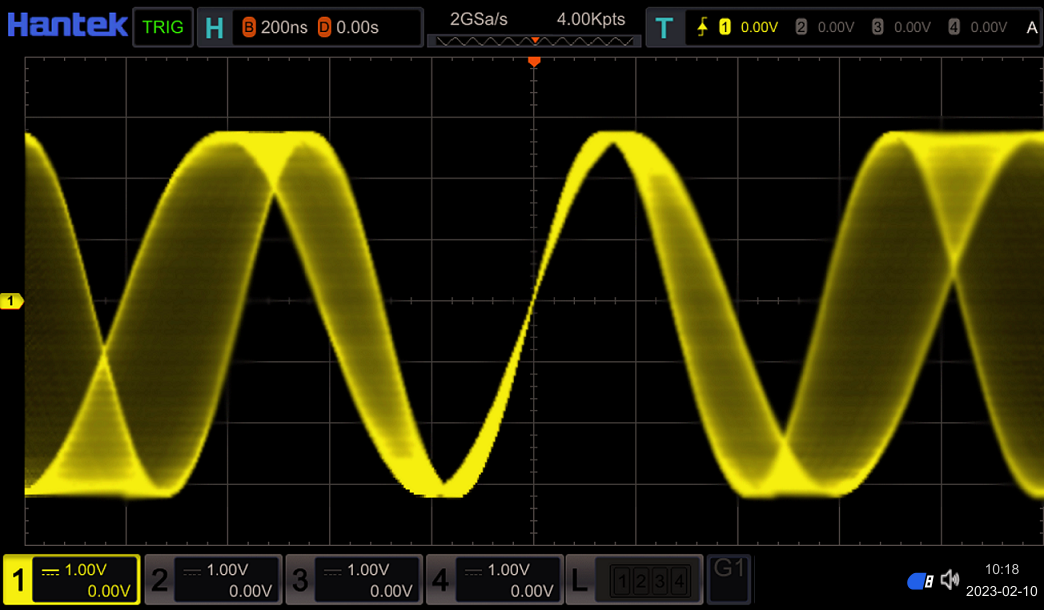

Waveform digital fluorescent display

Provide digital fluorescence multi-level waveform grayscale display effect, which can help users quickly find potential anomalies in the signal.

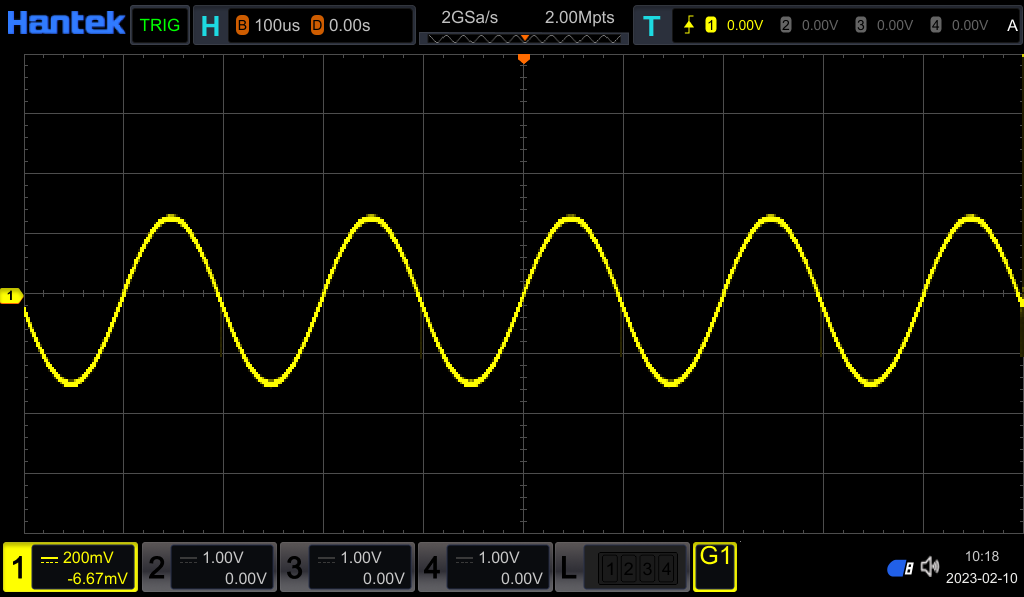

25MHz function/arbitrary waveform generator

Waveform generator, integrated with a variety of commonly used built-in waveforms, supports customized arbitrary waveform, arbitrary wave burst output, and modulated waveform output.

Area trigger function

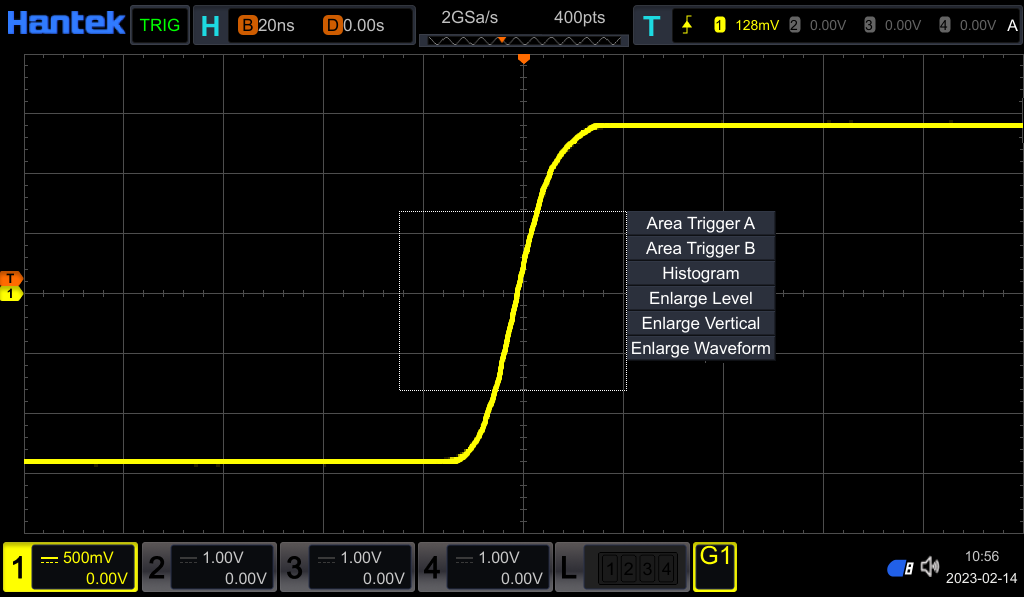

By drawing the region, you can set the region trigger. The region trigger can simplify the operation of advanced trigger and quickly isolate the waveform of interest.

Test parameter function

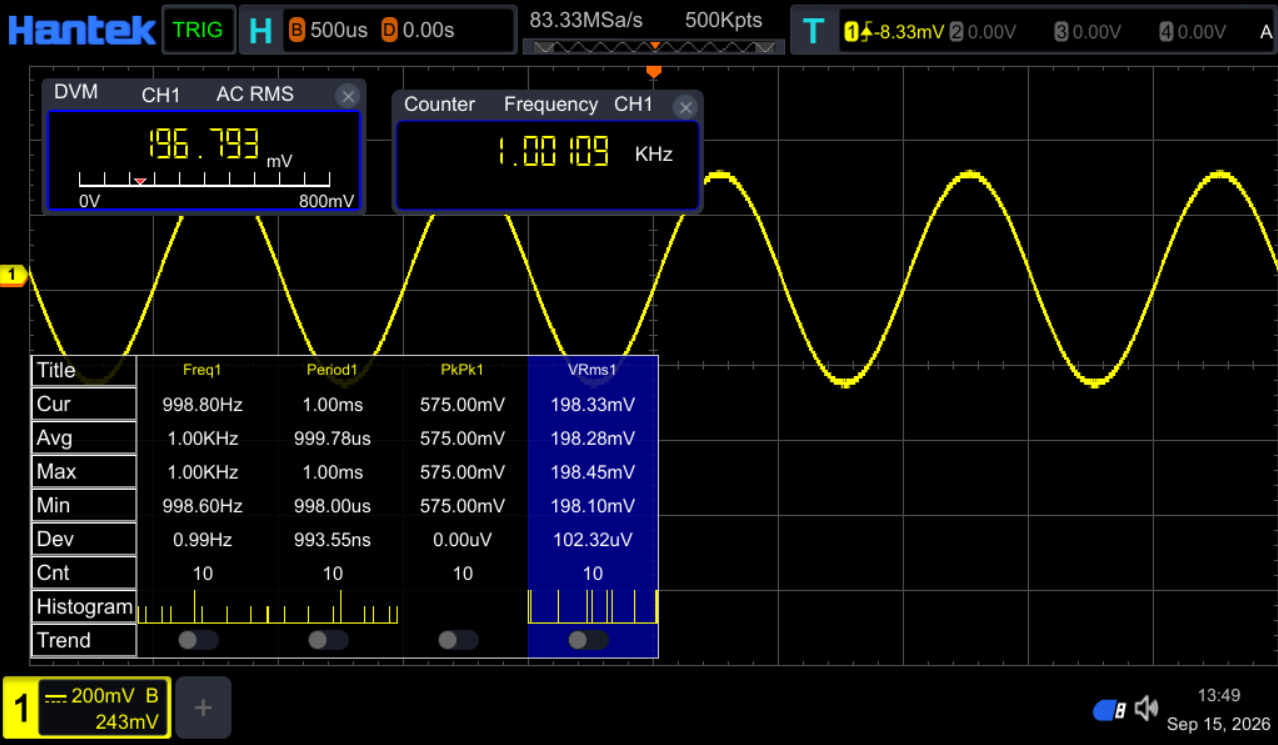

5-digit digital voltmeter and 6-digit hardware frequency meter function; Real-time statistics of minimum, maximum, average, standard deviation and other information enable you to execute tests more efficiently.

Waveform recording and playback

The waveform recording function option is provided to record the waveform changes in real time without interruption, and mark the time on the signal, so as to play back the waveform conveniently and find out the fault.

Quick operation function

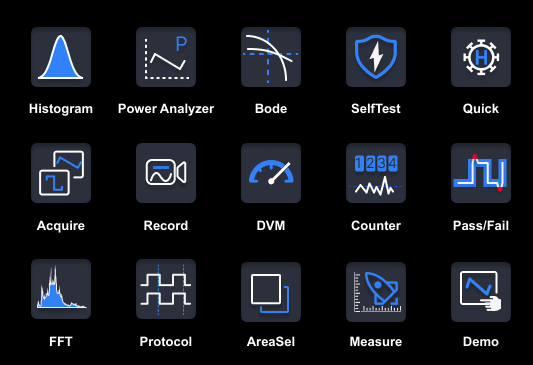

The shortcut operation panel including 15 common functions can be opened with one button without searching. Make the operation faster and the measurement more efficient.

Model	Channel	Bandwidth	Highest real-time Sampling rate	Maximun memory depth	Maximum waveform capture rate	Logical analyzer	Waveform generator
DPO7102C	2CH	100MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7202C	2CH	200MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7352C	2CH	350MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7502C	2CH	500MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7104C	4CH	100MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7204C	4CH	200MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7354C	4CH	350MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--
DPO7504C	4CH	500MHz	2GSa/s	2Gpts	500,000 wfms/s	--	--

Model	Channel	Bandwidth	Highest real-time Sampling rate	Maximun memory depth	Maximun memory depth	Logical analyzer	Waveform generator
DPO7102E	2CH	100MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7202E	2CH	200MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7352E	2CH	350MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7502E	2CH	500MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7104E	4CH	100MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7204E	4CH	200MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7354E	4CH	350MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH
DPO7504E	4CH	500MHz	2GSa/s	2Gpts	500,000 wfms/s	16CH	25MHz,1CH

Model	DPO7504E	DPO7354E	DPO7204E	DPO7104E
Channel	4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth	500MHz	350MHz	200MHz	100MHz
Real-time Sampling Rate	2GSa/s single channel, 1GSa/s half channel, 1GSa/s all channel
Memory Depth	2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate	500,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution	8 bit
Vertical Sensitivity	1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range	500ps/div~1ks/div	1ns/div~1ks/div	2ns/div~1ks/div	5ns/div~1ks/div
Time Base Accuracy	±1 ppm ± 1 ppm/year
Bandwidth limitation	20 MHz, 100MHz, 200MHz, 350MHz；Independent optional for each channel
Trigger Type	Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I2C
Bus and Decoding	RS232, I2C, SPI, LIN, CAN
Mathematical Operation	A+B, A-B, A*B, A/B, FFT, A&&B, A\|\|B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement	41 kinds of parameter measurement, supporting statistics and analysis
Analysis Function	Frequency meter, digital voltmeter, power analysis, histogram, search, navigation, history, baud chart
Hardware Recording and Playback	More than 2 million frames (single channel)
Input Coupling	DC, AC or GND
Input Impedance and Capacitance	1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Arbitrary Waveform Generator	Sampling rate 200 MSa/s, vertical resolution 12 bit, maximum output frequency 25 MHz, sine, square wave, pulse, triangle wave, noise, DC, Sinc, exponential, half-distortion, Lorentz, DTMF, Gaussian, ECG and other 13 standard waveforms
Digital Channel	16CH, 1GSa/s sampling rate
Interface	USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen	10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow

Model	DPO7504E	DPO7354E	DPO7204E	DPO7104E
Channel	4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth	500MHz	350MHz	200MHz	100MHz
Real-time Sampling Rate	2GSa/s single channel, 1GSa/s half channel, 1GSa/s all channel
Memory Depth	2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate	500,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution	8 bit
Vertical Sensitivity	1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range	500ps/div~1ks/div	1ns/div~1ks/div	2ns/div~1ks/div	5ns/div~1ks/div
Time Base Accuracy	±1 ppm ± 1 ppm/year
Bandwidth limitation	20 MHz, 100MHz, 200MHz, 350MHz；Independent optional for each channel
Trigger Type	Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I2C
Bus and Decoding	RS232, I2C, SPI, LIN, CAN
Mathematical Operation	A+B, A-B, A*B, A/B, FFT, A&&B, A\|\|B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement	51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function	Frequency meter, digital voltmeter, power analysis, histogram, search, navigation, history, baud chart
Hardware Recording and Playback	More than 2 million frames (single channel)
Input Coupling	DC, AC or GND
Input Impedance and Capacitance	1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Arbitrary Waveform Generator	Sampling rate 200 MSa/s, vertical resolution 12 bit, maximum output frequency 25 MHz, sine, square wave, pulse, triangle wave, noise, DC, Sinc, exponential, half-distortion, Lorentz, DTMF, Gaussian, ECG and other 13 standard waveforms
Digital Channel	16CH, 1GSa/s sampling rate
Interface	USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen	10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
DPO7000 Series	500MHz 350MHz 200MHz 100MHz	4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer	2GSa/s single channel 1GSa/s half channel 1GSa/s full channels	Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth
DSO2000 Series	150MHz 100MHz	2	1GSa/s	2 CH oscilloscope 1 CH 25MHz waveform generator 5 kinds of serial protocol trigger and decode 32 kinds of auto measurements with statistics SCPI remote control 2 sets of DVM
DPO6004B(C)/MPO6004D Series	80MHz 100MHz 200MHz	4CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder	1GSa/s	400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen
DPO6002B(C)/MPO6002D	80MHz 100MHz 200MHz	2CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder	1GSa/s	400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen
DSO4004C Series	80-250MHz	4CH +1CH WG+ EXT	1GSa/s	Oscilloscope + waveform generator 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range
DSO4004B Series	80-250MHz	4CH + EXT	1GSa/s	Oscilloscope 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range
DSO4000C Series	200/100/70MHz	2CH DSO +1CH GENERATOR + External Trigger	1GSa/s	Oscilloscope+Waveform Generator , 40K Record Length; 7 inch 64K color LCD display (WVGA 800x480), Integrated USB Host/Device
MSO5000D Series	200/100/60MHz	2CH+16CH(LA)+EXT	1GSa/s(Analog) 500MSa/s(LA)	7powerful trigger function, 1M Record Length, USB interface system upgrade, 16CH Logic Analyzer, 7'' LCD WVGA 800*480; VGA Optional
DSO5000P Series	200/100/70MHz	2CH + EXT	1GSa/s	40K Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, Powerful trigger function;
DSO5000B Series	200/100/60MHz	2CH+EXT	1GSa/s	1M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, 7powerful trigger function; VGA Optional
DSO5000BM Series (Discontinued)	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480 7powerful trigger function; VGA Optional
DSO5000BMV Series (Discontinued)	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, Video Help function; Built in 4G SD Card 7'' LCD WVGA 800*480 7powerful trigger function, USB interface system upgrade; VGA Optional
DPO8000 Series	1GHz 800MHz 500MHz 300MHz	4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer	8GSa/s single channel 8GSa/s half channel 4GSa/s full channels	Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth

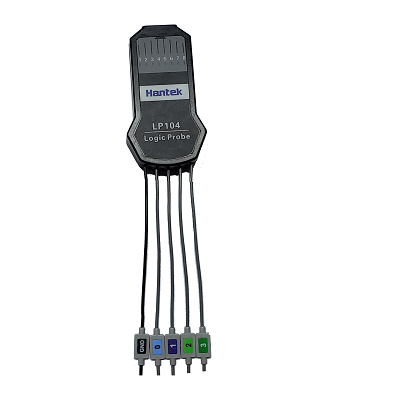

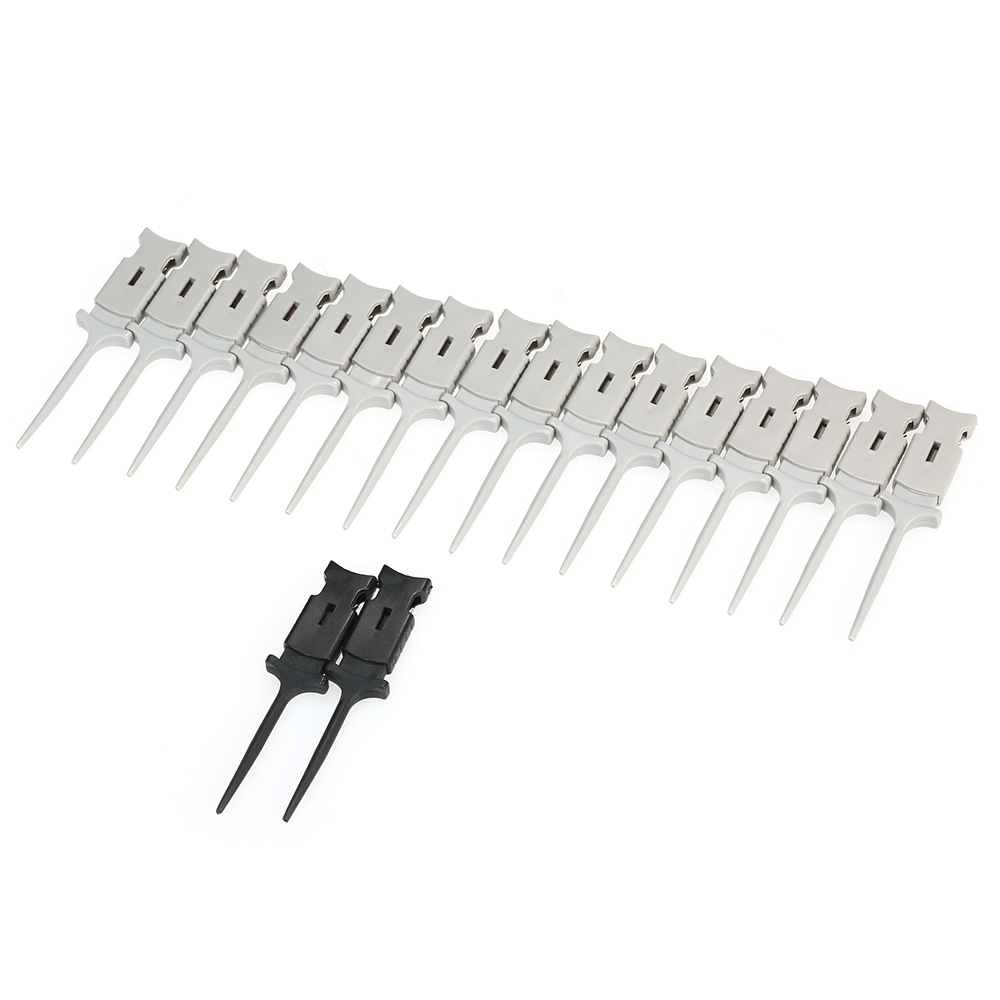

Standard Accessories

Data cable

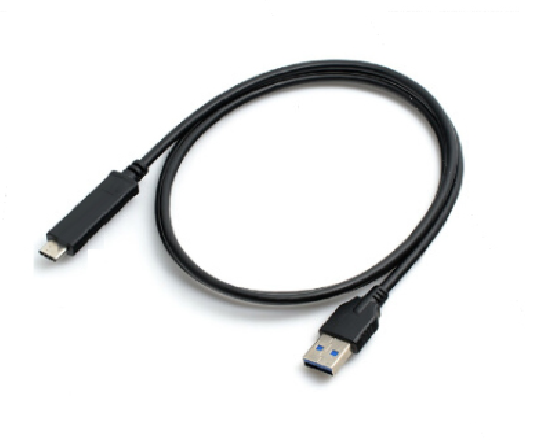

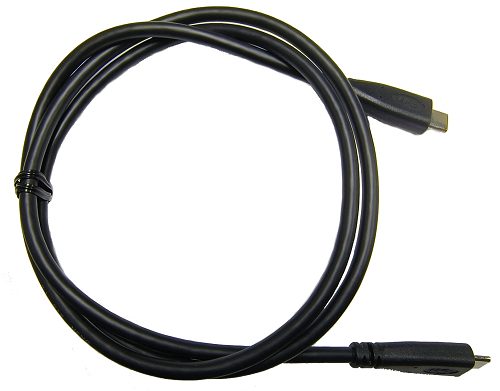

Type-C data cable, used for instrument and PC communication. Before use, it is necessary to install Keysight IO software on the PC.

Passive probe

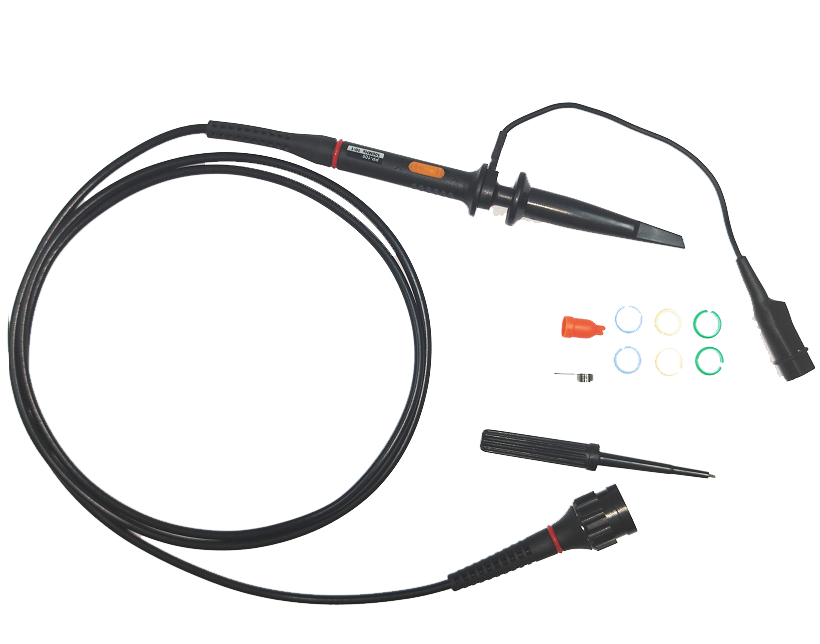

Two channel machines equipped with two passive probes; Four channel machines equipped with four passive probes; 100MHz machine equipped with PP100; 200MHz machine equipped with PP200; 350MHz machine equipped with HT300B; 500MHz machine equipped with HT500B

Power line

The instrument comes with a standard power cord from the user's country, which can also be purchased separately.

Packing list

Including: calibration certificate, packing list, warranty card, and certificate of conformity

Optional Accessories

DPO7000-BW10T20

100MHz to 200MHz upgrade option (applicable to DPO7104/DPO7102)

DPO7000-BW10T35

100MHz to 350MHz upgrade option (applicable to DPO7104/DPO7102)

DPO7000-BW10T50

100MHz to 500MHz upgrade option (applicable to DPO7104/DPO7102)

DPO7000-BW20T35

200MHz to 350MHz upgrade option (applicable to DPO7204/DPO7202)

DPO7000-BW20T50

200MHz to 500MHz upgrade option (applicable to DPO7204/DPO7202)

DPO7000-BW35T50

350MHz to 500MHz upgrade option (applicable to DPO7354/DPO7352)

DPO7000-PWR

Power Analysis Option

DPO7000-AWG

50MHz AWG Option

DPO7000-TA

I2C/SPI/RS232/UART/CAN/LIN Serial Triggering and Analysis

DPO7000-BD

Baud Chart Option

Oscilloscope rack kit

Used to secure the machine to the testing cabinet for use.

Hantek Catalogue 2023

2023-09-15

DPO7000 UserManual

2023-12-28

DPO7000 QuickGuide

2023-12-28

DPO7000 PerformanceVerificationGuide

2023-05-30

DPO7000 DataManual

2023-12-28

Probe

Model	Description	View Manual
HT300B,HT500B	350Mhz,500MHz,10:1/1:1	Download
HT100B，HT200B	100MHz,200MHz,10:1/1:1	Download
PP-80,PP-150,PP-200	60MHz,100MHz,200MHz,10:1/1:1	Download
PP80B, PP150B, PP200B, PP300B	80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1	Download
PP-90	80MHz,10:1/1:1	Download
T3100	100MHz，100：1，2000VDC Peak AC	Download
