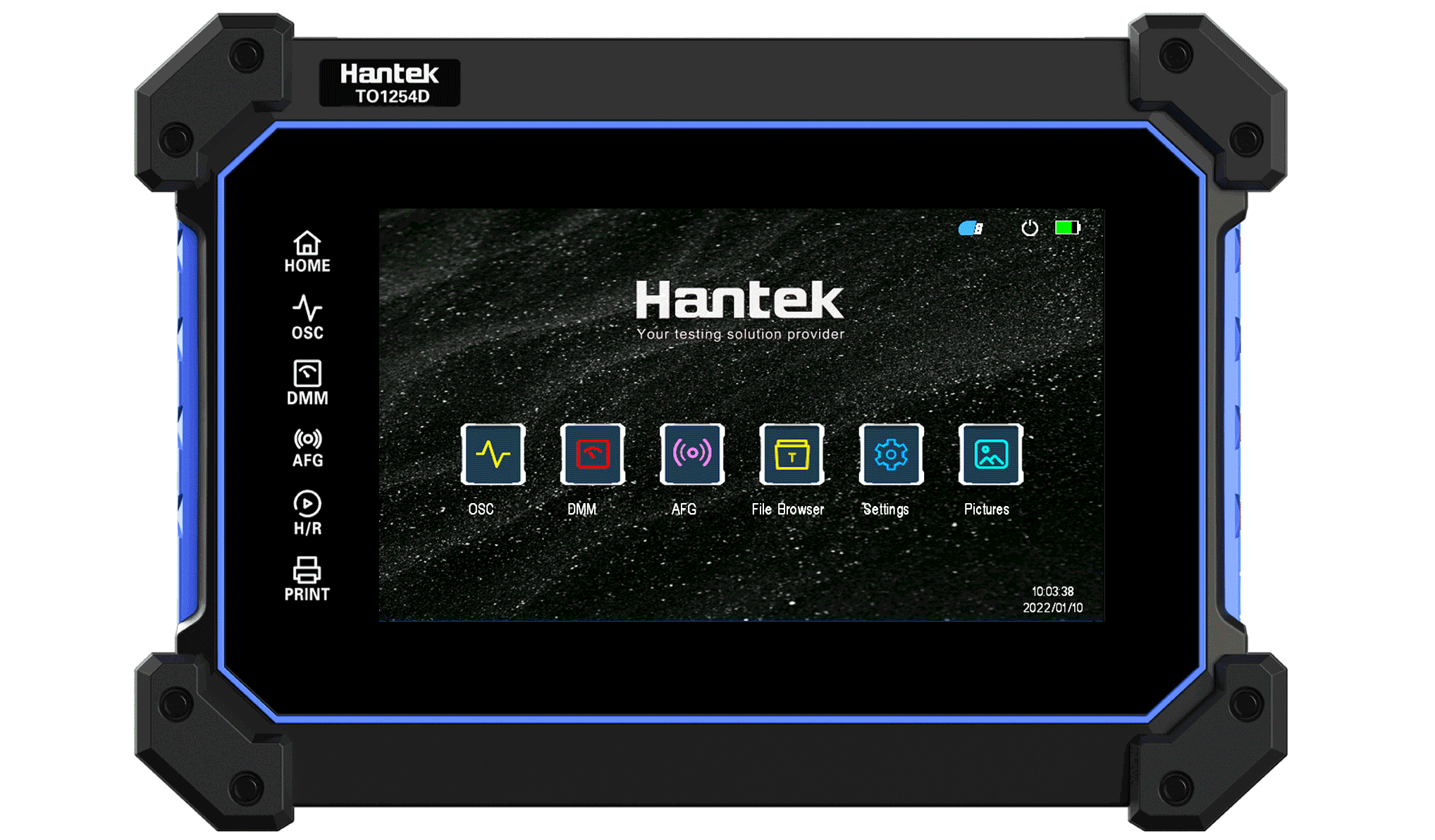

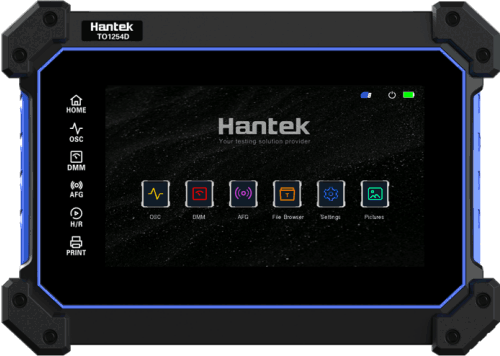

Multi touch large screen, resolution up to 800 * 480, friendly and easy-to-use UI, good interaction experience.
Standard configuration of 4 or 2-channel oscilloscope, maximum bandwidth of 250MHz, maximum sampling rate of 1GSa/s, 8M large storage.
Provide high-precision multimeter with data recording, storage, trend chart, statistical analysis and other functions.
A variety of arbitrary waveforms are built into the signal generator, and the highest output frequency is 25MHz.
One key waveform storage, convenient and fast.
Suspension foot design, multi angle adjustment, anti falling and anti-seismic, put it on the go.
Built in super large capacity lithium battery, full power, long endurance, standby for up to half a year.
The standard 18W charger supports type-C fast charging, and can also share a set of charging equipment with mobile phones.

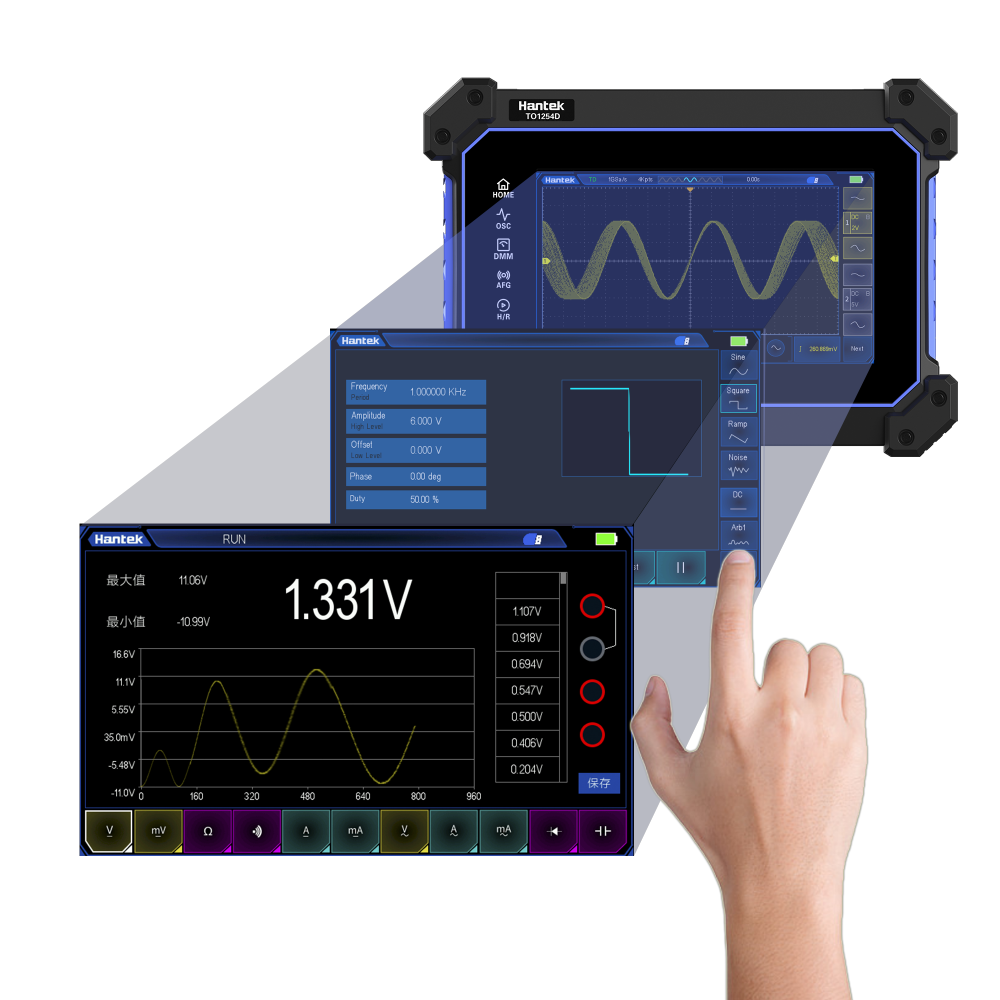

Integrates multiple functions

Digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.

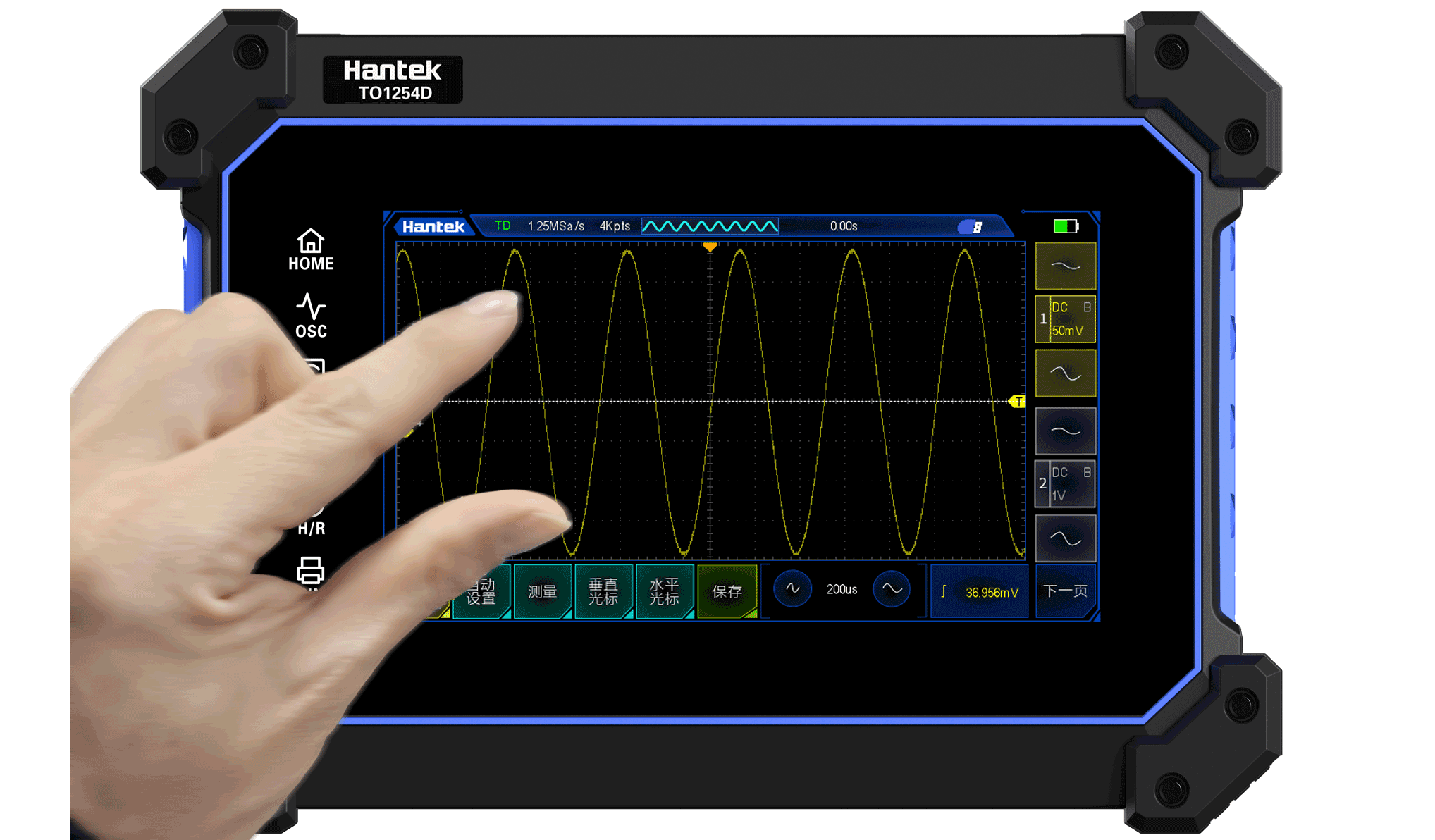

Four channel digital storage oscilloscope

Bandwidth up to 250MHz, 1GSa/ s high sampling rate, 8M large storage depth;
Edge, slope, pulse width, video, timeout and other triggers;
Up to 42 measurement functions.

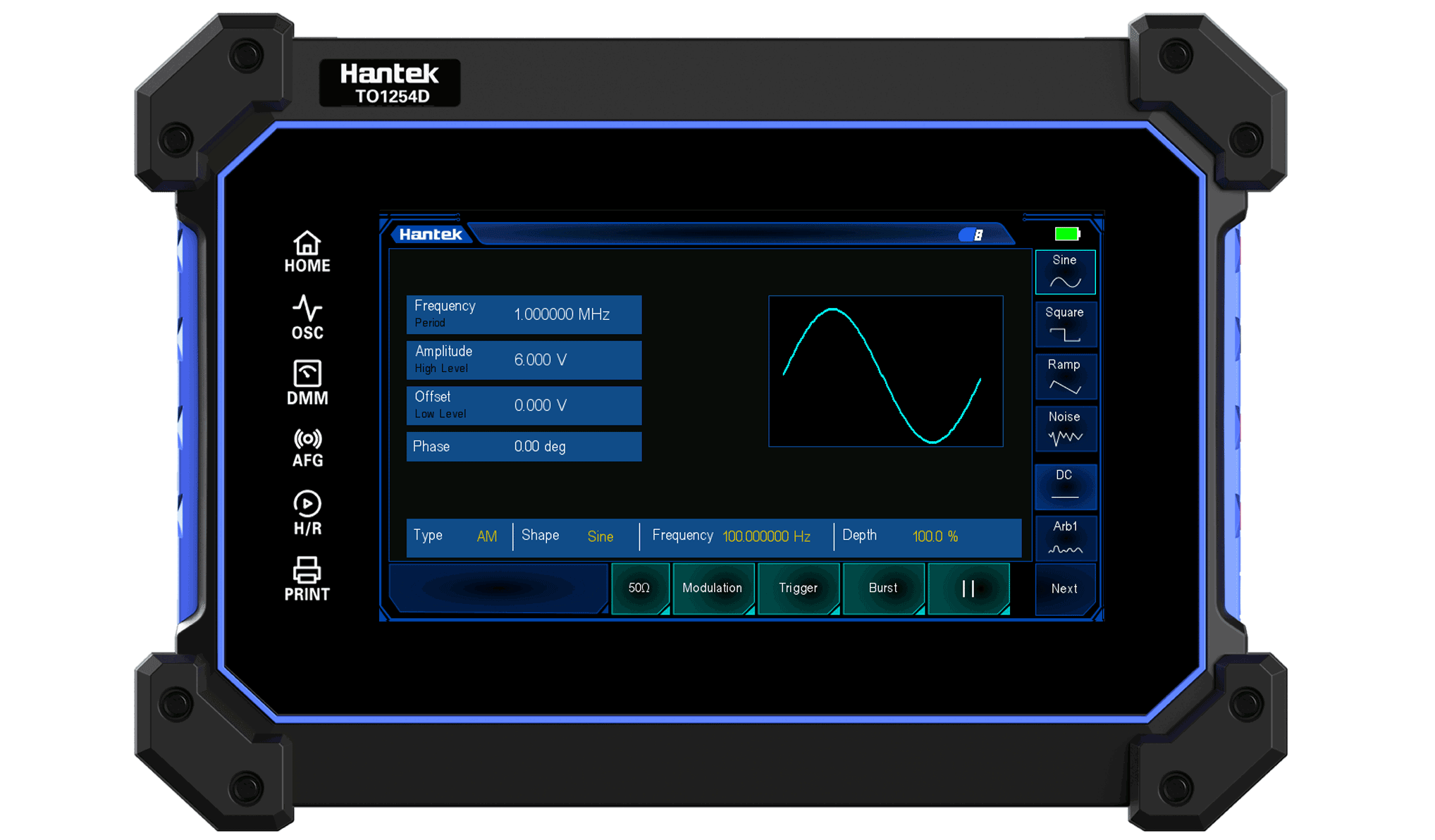

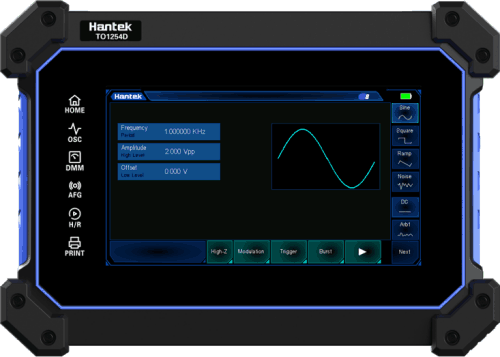

Function of arbitrary function signal generator

The highest output frequency reaches 25MHz, 12bit high resolution, 200Ms / s high sampling rate;
Built in a variety of arbitrary waves, support AM / FM modulation, output high resistance and low resistance can be switched.

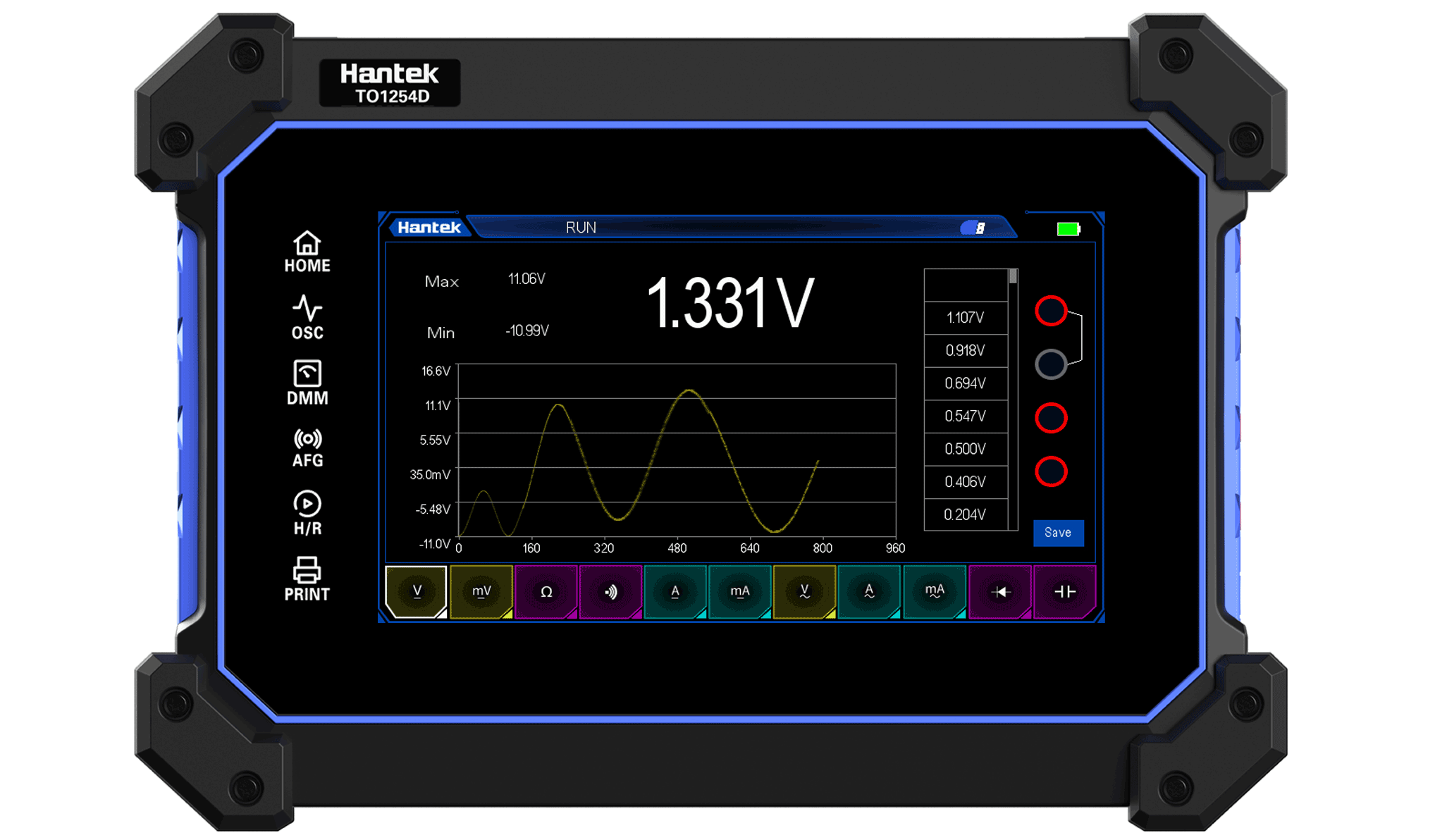

Digital multimeter function

AC and DC voltage, current, resistance, capacitance, diode, on-off measurement;
The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

Suspension foot、hands-free

Unique suspension foot design, free hands;
It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.

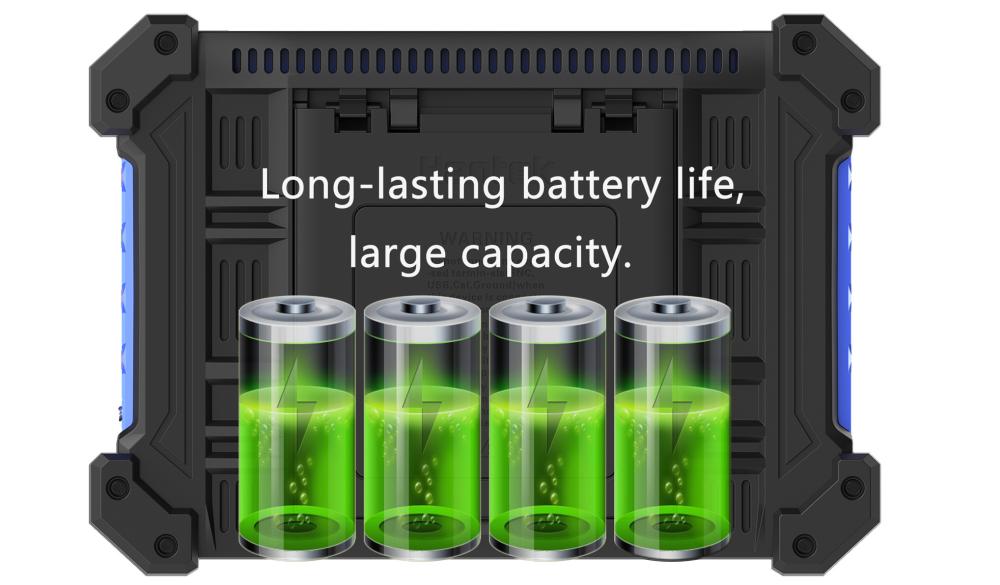

High power and long endurance

Built in 10000mah detachable lithium battery;
Full power, long endurance and standby time of up to half a year.

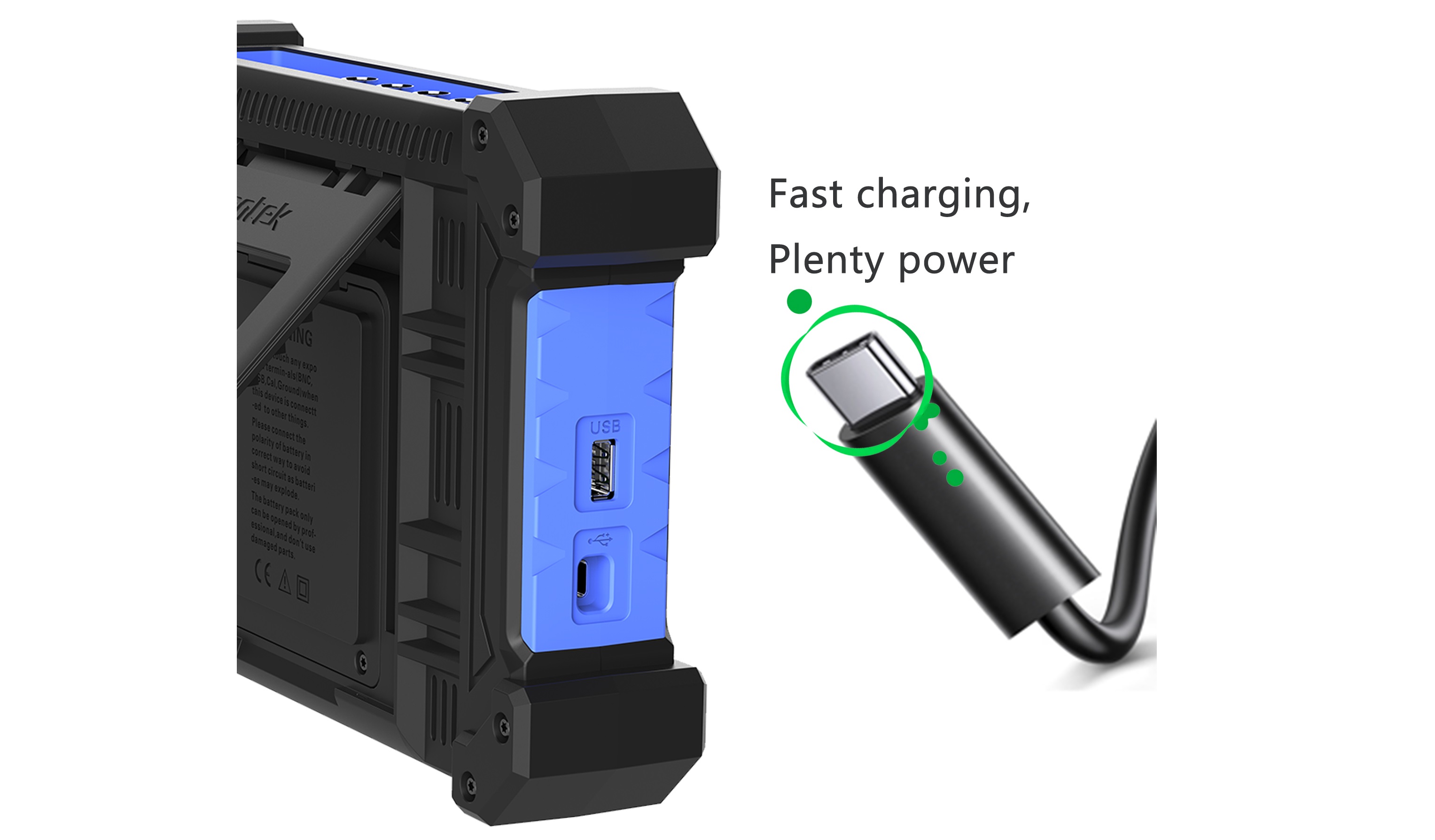

Support multiple fast charging protocols

Standard 18W charger for fast charging;
The type-C interface is compatible with mobile phones and can share a set of charging equipment.

Model	Oscilloscope channel	Bandwidth	Sampling rate	Storage depth	Signal source	Multimeter
TO1112	2 CH	110 MHz	250MSa/S	8M	-	-
TO1112C	2 CH	110 MHz	250MSa/S	8M	-	√
TO1112D	2 CH	110 MHz	250MSa/S	8M	有	√

Model	Oscilloscope channel	Bandwidth	Sampling rate	Storage depth	Signal source	Multimeter
TO1154C	4 CH	150 MHz	1GSa/s	8M	-	√
TO1204C	4 CH	200 MHz	1GSa/s	8M	-	√
TO1254C	4 CH	250 MHz	1GSa/s	8M	-	√
TO1154D	4 CH+1CH	150 MHz	1GSa/s	8M	25MHz	√
TO1204D	4 CH+1CH	200 MHz	1GSa/s	8M	25MHz	√
TO1254D	4 CH+1CH	250 MHz	1GSa/s	8M	25MHz	√

Model	Oscilloscope channel	Bandwidth	Sampling rate	Storage depth	Signal source	Multimeter
TO1152C	2 CH	150 MHz	1GSa/s	8M	-	√
TO1202C	2 CH	200 MHz	1GSa/s	8M	-	√
TO1252C	2 CH	250 MHz	1GSa/s	8M	-	√
TO1152D	2 CH+1CH	150 MHz	1GSa/s	8M	25MHz	√
TO1202D	2 CH+1CH	200 MHz	1GSa/s	8M	25MHz	√
TO1252D	2 CH+1CH	250 MHz	1GSa/s	8M	25MHz	√

Series		TO1000 Series (1G Sampling)		TO1112 Series (250M Sampling)
Level
Horizontal Scale Range		2ns/div~100s/div1、2、5 sequence		2ns/div~100s/div1、2、5 sequence
Incremental Time Measurement Accuracy (Full Bandwidth)		Single, "Sampling" mode		Single, "Sampling" mode
		± (1 sampling interval +100ppm× reading +0.6ns)		± (1 sampling interval +100ppm× reading +0.6ns)
		＞16 times on average		＞16 times on average
		±(1 sampling interval +100ppm× reading +0.4ns)		±(1 sampling interval +100ppm× reading +0.4ns)
		Sampling interval = seconds/grid ÷200		Sampling interval = seconds/grid ÷200
Vertical
A/D Converter		8-bit resolution,each channel sampled simultaneously		8-bit resolution,each channel sampled simultaneously
Vertical Cale Range		2mV/div~10V/div at input BNC		10mV/div~10V/div at input BNC
Vertical Resolution		8bit		8bit
Vertical Sensitivity Range		2mV/div~10V/div		10mV/div~10V/div
Offset Range		±1V（2mV/div~100mV/div）		±1Vmax(100mV/div)
		±10V（200mV/div~1V/div）		±10Vmax (1V/div)
		±50V（2V/div~10V/div）		±50Vmax (10V/div)
Dynamic Range		±5div（8bit）		±5div（8bit）
Optional Analog Bandwidth Limitation, Typical		20MHz,Each channel is independently selectable		20MHz，Each channel is independently selectable
DC Gain Accuracy		±3% FullScale		±3% FullScale
Isolation Between Channels		40dB，DC to the maximum rated bandwidth of each model		40dB，DC to the maximum rated bandwidth of each model
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Sampling Rate Range		1GSa/s		250MSa/s
Acquisition Modes		Normal, Average, Peak, High resolution		Normal, Average, Peak, High resolution
Waveform Interpolation		（sinx）/x		（sinx）/x
Single Sequence	Acquisition Modes	Collection Stop Time		Collection Stop Time
	Normal and Peak	All channels perform single collection at the same time.		Simultaneous single acquisition of all channels
	Average	All channels perform collections for N times at the same time. N can be 2, 4, 8, 16, 32, 64, 128, or 256.		All channels conduct n acquisitions at the same time, and N can take the values of 2, 4, 8, 16, 32, 64, 128, 256
Storage Depth		8Mpts		8Mpts
Trigger
Mode		Automatic, Normal, Single		Automatic, Normal, Single
Level		CH1~CH4 ±4 divisions from center of screen		CH1/CH2 ±4 divisions from center of screen
Release Inhibition Range		8ns~10s		8ns~10s
Trigger Level Accuracy		CH1~CH4 / CH1~CH2		CH1/CH2
Trigger Sensitivity		±0.87div(2mV/div) ±0.78div(5mV/div) ±0.69div(10mV/div) ±0.52div(20mV/div) ±0.47div(50mV/div) ±0.26div(100mV/div) ±0.26div(200mV/div) ±0.47div(500mV/div) ±0.26div(1V/div) ±0.26div(2V/div) ±0.26div(5V/div) ±0.26div(10V/div)		±0.87div(2mV/div) ±0.78div(5mV/div) ±0.69div(10mV/div) ±0.52div(20mV/div) ±0.47div(50mV/div) ±0.26div(100mV/div) ±0.26div(200mV/div) ±0.47div(500mV/div) ±0.26div(1V/div) ±0.26div(2V/div) ±0.26div(5V/div) ±0.26div(10V/div)
Edge-triggered
Slope		Rising, Falling, Rising & Falling		Rising, Falling, Rising & Falling
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Pulse Width Trigger
Polarity		Positive polarity, negative polarity		Positive polarity, negative polarity
Condition		<、>、!=、=		<、>、!=、=
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Pulse width range		8ns~10s		8ns~10s
Video Trigger
Signal standard		NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i		NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i
Source		CH1~CH4 / CH1~CH2		CH1~CH2
Synchronization		Scan line, Line number, Odd field, Even field, All fields		Scan line, Line number, Odd field, Even field, All fields
Slope Trigger
Slope		Rising, Falling		Rising, Falling
Condition		<、>、!=、=		<、>、!=、=
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Time Range		8ns~10s		8ns~10s
Timeout Trigger
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Polarity		Positive polarity, negative polarity		Positive polarity, negative polarity
Time Range		8ns~10s		8ns~10s
Input
Channel Count		4 / 2 Analog channels		2 Analog channels
Input Coupling		DC, AC or GND		DC, AC or GND
Input Impedance		1MΩ±2%		1MΩ±2%
Input Capacitance		18pF±3pF		18pF±3pF
Probe Attenuation		1X、10X		1X、10X
Support probe attenuation coefficient		0.01X~10000X		0.01X~10000X
Voltage Level		300VCATII		300VCATII
Maximum Input Voltage		300VRMS（10X）		300VRMS（10X）
Measurement

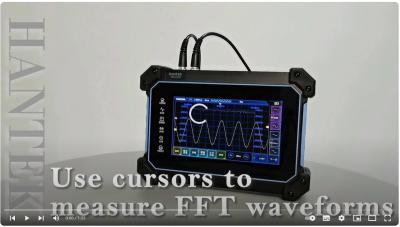

Cursor		The voltage difference between the cursors △Y
		The time difference between the cursors △X
		Reciprocal of △X in Hertz (1/△X)
Auto Measure		Frequency、Bimodal value、Average value、Maximum value、Minimum value、Period、Top value, Middle value、Bottom value、 Amplitude、 Root mean square、Rising edge overshoot、Rising edge precharge、Cycle root mean Square、Cycle average value、Rising time、Falling time、Positive pulse Width、Negative pulse width、Positive duty cycle、Negative duty cycle、FRR、FFF、Falling edge overshoot, Falling edge precharge, Pulse width、FRF、FFR、LRR、LRF、LFR、LFF、Maximum value time、Minimum value time、Positive phase difference、Negative phase difference、Variance、Number of positive pulses、Number of negative pulses、Number of rising edges、Number of falling edges、Trigger count

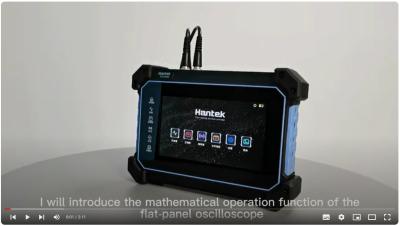

Math Operations
Data Source		CH1~CH4 / CH1~CH2		CH1/CH2
Operator		＋、－、×、/、FFT

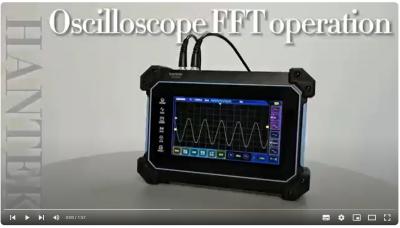

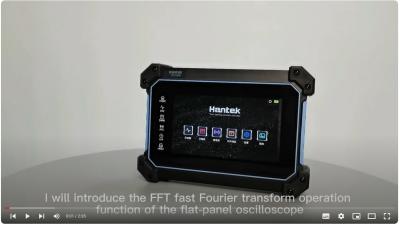

FFT		Point	1024
		Window	Rectangle, Hanning, Hemming, Blackman, Bartlett, Flat top
		Display	Display single or display all
		Vertical scale	dB、VRms
Storage
Save / Transfer out		Save and call out, Including Images, References, CSV, Binary, Settings
Save to External Storage		Images, References, CSV, Binary, Settings
Arbitrary Waveform Generator
Channel Number		1
Sampling Rate		200MSa/s
Vertical Resolution		12bit
The Highest Frequency		25MHz
Standard Waveform		Sine wave, Square wave, Triangle wave, Noise, DC
Sine Wave		Frequency range	0.1Hz~25MHz
Square wave/Pulse		Frequency range	0.1Hz~10MHz
		Duty ratio	0~100%
Triangle Wave		Frequency range	0.1Hz~1MHz
		Symmetry	0%~100%
Noise		Bandwidth	＞25MHz
DC		Offset	±1.5V（50Ω）、±3.0V（high resistance）
		Resolution	100μV
		Precision	2%（1KHz）
Arbitrary Wave		Frequency range	0.1Hz~10MHz
		Support upper computer download, and external memory calling out
Amplitude		50Ω+2%
Amplitude		0mV~3Vpp（50Ω）
		0mV~6Vpp（high resistance）
Frequency Resolution		0.1 Hz or 4 bits, take the greater one of the two
Wavelength		4KSa
Frequency Accuracy		100 ppm (< 10 kHz) 50 ppm (> 10 kHz)
Modulation		FM	Modulation waveform	Sine wave, Square wave, Triangle wave
			Modulation frequency	1Hz~50KHz
			Modulation deviation	0.1Hz~1KHz
		AM	Modulation waveform	Sine wave, Square wave, Triangle wave
			Modulation frequency	1Hz~50KHz
			Modulation depth	0%-120%
Burst		Type	Multi-period, Infinite
		Cycle Number	1~2000000000
		Trigger source	Manual
Multimeter
Maximum resolution		4000 points
Measuring method		Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage		AC:600V,DC:600V
Maximum Input Current		AC:10A,DC:10A
Input Impedance		10MΩ
Measurement Item		Range	Precision	Resolution
DC Voltage		400mV	±（1%+2）	100μV
		4.000V		1mV
		40.00V		10mV
		400.0V		100mV
		600.0V		1V
		Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage		4.000V	±（1.2%+5）	1mV
		40.00V		10mV
		400.0V		100mV
		600.0V	±（1.5%+5）	1V
		Frequency：40Hz~400Hz
		Frequency of 400V and 600V：40Hz~100Hz
DC Current		40.00mA	±（1%+2）	10μA
		200.0mA	±（1.5%+2）	100μA
		4.000A	±（1.8%+2）	1mA
		10.00A	±（3%+2）	10mA
		Overload protection: self restoring fuse: 200mA/250V, 4A and 10A range no fuse
AC Current		40.00mA	±（1.3%+2）	10μA
		400.0mA	±（1.8%+2）	100μA
		4.000A	±（2%+3）	1mA
		10.00A	±（3%+5）	10mA
		Frequency: 40Hz~400Hz;
		Self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance		400.0Ω	±（1%+3）	0.1Ω
		4.000KΩ	±（1.2%+5）	1Ω
		60.00KΩ		10Ω
		400.0KΩ		100Ω
		4.000MΩ		1KΩ
		40.00MΩ	±（1.5%±3）	10KΩ
		Overload protection: 220Vrms
Capacitance		40.00nF	±（3%+5）	10pF
		400.0nF		100pF
		4.000μF		1nF
		40.00μF		10nF
		100.0μF		100nF
		Overload protection: 220Vrms
Diode		0V~1.0V
On off Measurement		<50Ω
General Specifications
Panel Type		7 "TFT LCD
Display Resolution		800 (horizontal) *480 (vertical) pixels
Display Type		Point, Vector
Waveform Brightness		Adjustable
Grid Types		Solid line, Dotted line, None
Grid Brightness		Adjustable
Screen Brightness		Adjustable
Afterglow		1s、5s、10s、30s、Infinite, Off
Standard Interface		USB Host、USB Device
Power Supply		AC 100 ~ 240V, 50 ~ 60Hz; DC input 5V3A/9V2A/12v1.5A
Power Consumption		<8W
Fast Charge		Support fast charging
Battery		3.7V 2600mAh*4 in parallel		3.7V 2600mAh*2 in parallel
Environmental
Temperature		0℃-50℃
Storage Temperature		-20℃-60℃
Humidity		≤+104℉（≤+40°C）: ≤90% relative humidity
		106℉~122℉（+41°C~50°C）:≤60% relative humidity
Cooling		Convection
Altitude		Operating and Nonoperating	3,000m（10,000 feet）
		Random vibration	0.31g_RMS from 50Hz to 500Hz, 10 minutes on each axis
		Nonoperating	2.46g_RMS from 5Hz to 500Hz, 10 minutes on each axis
Mechanical
Dimension		248mm176mm54mm (L x W x H)
Weight		1.2KG (including batteries)

Series		TO1000 Series (1G Sampling)		TO1112 Series (250M Sampling)
Level
Horizontal Scale Range		2ns/div~100s/div1、2、5 sequence		2ns/div~100s/div1、2、5 sequence
Incremental Time Measurement Accuracy (Full Bandwidth)		Single, "Sampling" mode		Single, "Sampling" mode
		± (1 sampling interval +100ppm× reading +0.6ns)		± (1 sampling interval +100ppm× reading +0.6ns)
		＞16 times on average		＞16 times on average
		±(1 sampling interval +100ppm× reading +0.4ns)		±(1 sampling interval +100ppm× reading +0.4ns)
		Sampling interval = seconds/grid ÷200		Sampling interval = seconds/grid ÷200
Vertical
A/D Converter		8-bit resolution,each channel sampled simultaneously		8-bit resolution,each channel sampled simultaneously
Vertical Cale Range		2mV/div~10V/div at input BNC		10mV/div~10V/div at input BNC
Vertical Resolution		8bit		8bit
Vertical Sensitivity Range		2mV/div~10V/div		10mV/div~10V/div
Offset Range		±1V（2mV/div~100mV/div）		±1Vmax(100mV/div)
		±10V（200mV/div~1V/div）		±10Vmax (1V/div)
		±50V（2V/div~10V/div）		±50Vmax (10V/div)
Dynamic Range		±5div（8bit）		±5div（8bit）
Optional Analog Bandwidth Limitation, Typical		20MHz,Each channel is independently selectable		20MHz，Each channel is independently selectable
DC Gain Accuracy		±3% FullScale		±3% FullScale
Isolation Between Channels		40dB，DC to the maximum rated bandwidth of each model		40dB，DC to the maximum rated bandwidth of each model
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Sampling Rate Range		1GSa/s		250MSa/s
Acquisition Modes		Normal, Average, Peak, High resolution		Normal, Average, Peak, High resolution
Waveform Interpolation		（sinx）/x		（sinx）/x
Single Sequence	Acquisition Modes	Collection Stop Time		Collection Stop Time
	Normal and Peak	All channels perform single collection at the same time.		Simultaneous single acquisition of all channels
	Average	All channels perform collections for N times at the same time. N can be 2, 4, 8, 16, 32, 64, 128, or 256.		All channels conduct n acquisitions at the same time, and N can take the values of 2, 4, 8, 16, 32, 64, 128, 256
Storage Depth		8Mpts		8Mpts
Trigger
Mode		Automatic, Normal, Single		Automatic, Normal, Single
Level		CH1~CH4 ±4 divisions from center of screen		CH1/CH2 ±4 divisions from center of screen
Release Inhibition Range		8ns~10s		8ns~10s
Trigger Level Accuracy		CH1~CH4 / CH1~CH2		CH1/CH2
Trigger Sensitivity		±0.87div(2mV/div) ±0.78div(5mV/div) ±0.69div(10mV/div) ±0.52div(20mV/div) ±0.47div(50mV/div) ±0.26div(100mV/div) ±0.26div(200mV/div) ±0.47div(500mV/div) ±0.26div(1V/div) ±0.26div(2V/div) ±0.26div(5V/div) ±0.26div(10V/div)		±0.87div(2mV/div) ±0.78div(5mV/div) ±0.69div(10mV/div) ±0.52div(20mV/div) ±0.47div(50mV/div) ±0.26div(100mV/div) ±0.26div(200mV/div) ±0.47div(500mV/div) ±0.26div(1V/div) ±0.26div(2V/div) ±0.26div(5V/div) ±0.26div(10V/div)
Edge-triggered
Slope		Rising, Falling, Rising & Falling		Rising, Falling, Rising & Falling
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Pulse Width Trigger
Polarity		Positive polarity, negative polarity		Positive polarity, negative polarity
Condition		<、>、!=、=		<、>、!=、=
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Pulse width range		8ns~10s		8ns~10s
Video Trigger
Signal standard		NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i		NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i
Source		CH1~CH4 / CH1~CH2		CH1~CH2
Synchronization		Scan line, Line number, Odd field, Even field, All fields		Scan line, Line number, Odd field, Even field, All fields
Slope Trigger
Slope		Rising, Falling		Rising, Falling
Condition		<、>、!=、=		<、>、!=、=
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Time Range		8ns~10s		8ns~10s
Timeout Trigger
Source		CH1~CH4 / CH1~CH2		CH1/CH2
Polarity		Positive polarity, negative polarity		Positive polarity, negative polarity
Time Range		8ns~10s		8ns~10s
Input
Channel Count		4 / 2 Analog channels		2 Analog channels
Input Coupling		DC, AC or GND		DC, AC or GND
Input Impedance		1MΩ±2%		1MΩ±2%
Input Capacitance		18pF±3pF		18pF±3pF
Probe Attenuation		1X、10X		1X、10X
Support probe attenuation coefficient		0.01X~10000X		0.01X~10000X
Voltage Level		300VCATII		300VCATII
Maximum Input Voltage		300VRMS（10X）		300VRMS（10X）
Measurement
Cursor		The voltage difference between the cursors △Y
		The time difference between the cursors △X
		Reciprocal of △X in Hertz (1/△X)
Auto Measure		Frequency、Bimodal value、Average value、Maximum value、Minimum value、Period、Top value, Middle value、Bottom value、 Amplitude、 Root mean square、Rising edge overshoot、Rising edge precharge、Cycle root mean Square、Cycle average value、Rising time、Falling time、Positive pulse Width、Negative pulse width、Positive duty cycle、Negative duty cycle、FRR、FFF、Falling edge overshoot, Falling edge precharge, Pulse width、FRF、FFR、LRR、LRF、LFR、LFF、Maximum value time、Minimum value time、Positive phase difference、Negative phase difference、Variance、Number of positive pulses、Number of negative pulses、Number of rising edges、Number of falling edges、Trigger count
Math Operations
Data Source		CH1~CH4 / CH1~CH2		CH1/CH2
Operator		＋、－、×、/、FFT
FFT		Point	1024
		Window	Rectangle, Hanning, Hemming, Blackman, Bartlett, Flat top
		Display	Display single or display all
		Vertical scale	dB、VRms
Storage
Save / Transfer out		Save and call out, Including Images, References, CSV, Binary, Settings
Save to External Storage		Images, References, CSV, Binary, Settings
Arbitrary Waveform Generator
Channel Number		1
Sampling Rate		200MSa/s
Vertical Resolution		12bit
The Highest Frequency		25MHz
Standard Waveform		Sine wave, Square wave, Triangle wave, Noise, DC
Sine Wave		Frequency range	0.1Hz~25MHz
Square wave/Pulse		Frequency range	0.1Hz~10MHz
		Duty ratio	0~100%
Triangle Wave		Frequency range	0.1Hz~1MHz
		Symmetry	0%~100%
Noise		Bandwidth	＞25MHz
DC		Offset	±1.5V（50Ω）、±3.0V（high resistance）
		Resolution	100μV
		Precision	2%（1KHz）
Arbitrary Wave		Frequency range	0.1Hz~10MHz
		Support upper computer download, and external memory calling out
Amplitude		50Ω+2%
Amplitude		0mV~3Vpp（50Ω）
		0mV~6Vpp（high resistance）
Frequency Resolution		0.1 Hz or 4 bits, take the greater one of the two
Wavelength		4KSa
Frequency Accuracy		100 ppm (< 10 kHz) 50 ppm (> 10 kHz)
Modulation		FM	Modulation waveform	Sine wave, Square wave, Triangle wave
			Modulation frequency	1Hz~50KHz
			Modulation deviation	0.1Hz~1KHz
		AM	Modulation waveform	Sine wave, Square wave, Triangle wave
			Modulation frequency	1Hz~50KHz
			Modulation depth	0%-120%
Burst		Type	Multi-period, Infinite
		Cycle Number	1~2000000000
		Trigger source	Manual
Multimeter
Maximum resolution		4000 points
Measuring method		Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage		AC:600V,DC:600V
Maximum Input Current		AC:10A,DC:10A
Input Impedance		10MΩ
Measurement Item		Range	Precision	Resolution
DC Voltage		400mV	±（1%+2）	100μV
		4.000V		1mV
		40.00V		10mV
		400.0V		100mV
		600.0V		1V
		Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage		4.000V	±（1.2%+5）	1mV
		40.00V		10mV
		400.0V		100mV
		600.0V	±（1.5%+5）	1V
		Frequency：40Hz~400Hz
		Frequency of 400V and 600V：40Hz~100Hz
DC Current		40.00mA	±（1%+2）	10μA
		200.0mA	±（1.5%+2）	100μA
		4.000A	±（1.8%+2）	1mA
		10.00A	±（3%+2）	10mA
		Overload protection: self restoring fuse: 200mA/250V, 4A and 10A range no fuse
AC Current		40.00mA	±（1.3%+2）	10μA
		400.0mA	±（1.8%+2）	100μA
		4.000A	±（2%+3）	1mA
		10.00A	±（3%+5）	10mA
		Frequency: 40Hz~400Hz;
		Self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance		400.0Ω	±（1%+3）	0.1Ω
		4.000KΩ	±（1.2%+5）	1Ω
		60.00KΩ		10Ω
		400.0KΩ		100Ω
		4.000MΩ		1KΩ
		40.00MΩ	±（1.5%±3）	10KΩ
		Overload protection: 220Vrms
Capacitance		40.00nF	±（3%+5）	10pF
		400.0nF		100pF
		4.000μF		1nF
		40.00μF		10nF
		100.0μF		100nF
		Overload protection: 220Vrms
Diode		0V~1.0V
On off Measurement		<50Ω
General Specifications
Panel Type		7 "TFT LCD
Display Resolution		800 (horizontal) *480 (vertical) pixels
Display Type		Point, Vector
Waveform Brightness		Adjustable
Grid Types		Solid line, Dotted line, None
Grid Brightness		Adjustable
Screen Brightness		Adjustable
Afterglow		1s、5s、10s、30s、Infinite, Off
Standard Interface		USB Host、USB Device
Power Supply		AC 100 ~ 240V, 50 ~ 60Hz; DC input 5V3A/9V2A/12v1.5A
Power Consumption		<8W
Fast Charge		Support fast charging
Battery		3.7V 2600mAh*4 in parallel		3.7V 2600mAh*2 in parallel
Environmental
Temperature		0℃-50℃
Storage Temperature		-20℃-60℃
Humidity		≤+104℉（≤+40°C）: ≤90% relative humidity
		106℉~122℉（+41°C~50°C）:≤60% relative humidity
Cooling		Convection
Altitude		Operating and Nonoperating	3,000m（10,000 feet）
		Random vibration	0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
		Nonoperating	2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
Mechanical
Dimension		248mm176mm54mm (L x W x H)
Weight		1.2KG (including batteries)

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
TO1000 Series	110MHz 150MHz 200MHz 250MHz	2/4CH(DSO) 1CH(AFG) DMM	1GSa/s 250MSa/s	DSO/DMM/AFG/FFT Light weight and is easy to carry Support fast charging, and abundant power
Hantek2000 Series	70MHz 40MHz	2CH(DSO) 1CH(AFG) DMM	250MSa/s	DSO/DMM/AFG Volume small, one hand holding Type C charging,Ultra-low power design Powerful PC software,with recorder function
DSO8000E Series	70-200 MHz(DSO) 25MHz(AFG)	2CH(DSO) 1CH(AFG)	1GSa/s(DSO) 200MS/s(AFG)	DSO/DMM/AFG/Frequency Counter/Spectral analysis/Recorder IP-51 rated for dust, drip and shake proof, Anti-theft lock/Flash Light/ Tripod fixed hole/2M memory,
DSO1000E Series	70-200MHz	2CH	1GSa/s	DSO/DMM/ Frequency Counter/ Spectral analysis/Recorder IP-51 rated for dust, drip and shake proof Anti-theft lock/Flash Light/ Tripod fixed hole/2M memory,
DSO1000S Series	60/120/150/200MHz	2CH	1GSa/s	6000 Counts DMM High Resolution(640*480), 1M memory depth.
DSO8060 Series(Discontinued)	60MHz	2CH	250MSa/s	DSO/DMM/ Frequency/ Spectral analysis/6000 Counts DMM
DSO1000 Series(Discontinued)	200MHz/60MHz	2CH	500MSa/s 250MSa/s	6000 Counts DMM Resolution(320*240) 32K memory depth
DSO1000B Series(Discontinued)	60MHz-200MHz	2CH	1GSa/s	6000 Counts DMM High Resolution(640*480), 1M memory depth.
DSO1000BV Series (Discontinued)	60MHz-200MHz	2CH	1GSa/s	6000 Counts DMM High Resolution(640*480), 1M memory depth. Video auxiliary function

Tablet1000 Software

2023-03-10

WaveEditor_Setup_Tablet1000

2023-06-09

Tablet1000 Firmware

2024-11-05

Tablet1000 DataManual

2022-09-07

Tablet1000 QuickGuide

2022-09-07

Tablet1000 SCPImanual

2022-09-07

Tablet1000 UserManual

2022-09-07

Probe

Model	Description	View Manual
HT300B,HT500B	350Mhz,500MHz,10:1/1:1	Download
HT100B，HT200B	100MHz,200MHz,10:1/1:1	Download
PP-80,PP-150,PP-200	60MHz,100MHz,200MHz,10:1/1:1	Download
PP80B, PP150B, PP200B, PP300B	80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1	Download
PP-90	80MHz,10:1/1:1	Download
T3100	100MHz，100：1，2000VDC Peak AC	Download

AC/DC Current Clamp

Model	Description	View Manual
CC65	AC/DC: 0 – 20KHz，20mA to 65A DC	Download
CC650	AC:0 – 5KHz，1A - 500A ，DC:1A - 650A	Download
CC800	AC:0 – 5KHz，1A - 500A ，DC:1A - 800A	Download

High voltage isolated probe

Model	Description	View Manual
HT8050	50MHz，1300V peakAC，1:50，1:500	Download
HT8100	100MHz，1300V peakAC，1:50，1:500	Download
