Isolated level: 1000V CATII, 600V CATIII.

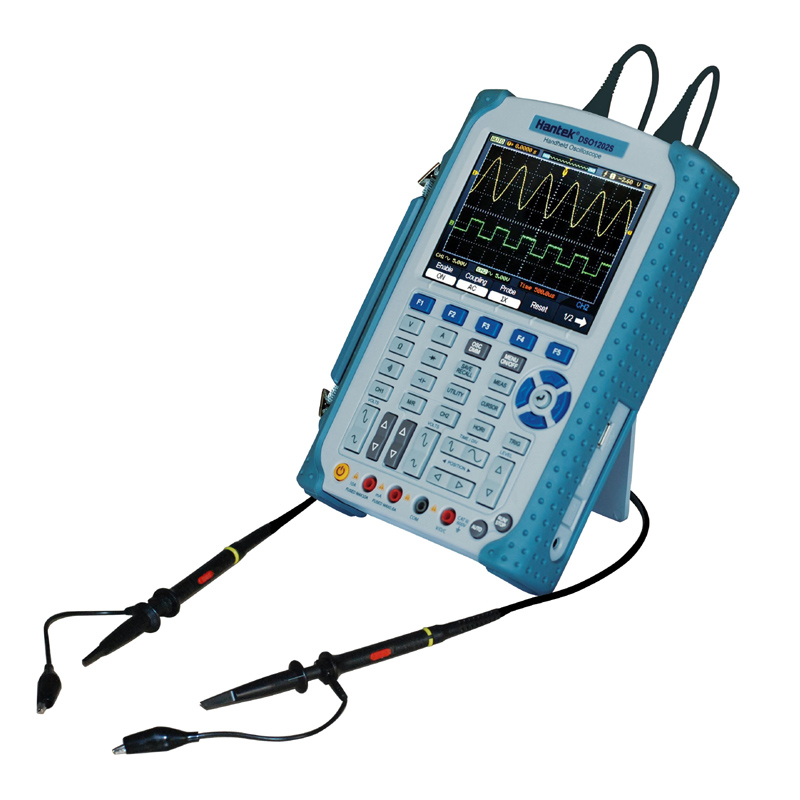

High Bandwidth 60MHz-200MHz Oscilloscope, 1GSa/s sample rate, 6000 Counts DMM with analog barograph and data recorder.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color Display, High Resolution(640*480), Dual-Window Design --More clear, More detailed.
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
XY Mode.
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass-Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface, support removeable disk, LAN Option, easy to control by PC or long-distance.
Dimensions (mm):245(L)x163(W)x52(H), be carried easily.

Function Picture

If connect to computer, it can be used as a virtual oscilloscope

This device is running Linux 2.6, for more detail see

Model	DSO1202S	DSO1152S	DSO1122S	DSO1062S
Bandwidth	200MHz	150MHz	120MHz	60MHz
Channel	2
Real-Sample Rate	1GSa/s
Equivalent Sample Rate	25GSa/s
Record Length	1M
Rish time	≤1.7ns/≤2.3ns/≤2.9ns/≤5.8ns
Timebase Accuracy	±50ppm
Time Base Range	2ns/div-2000s/div	2ns/div-2000s/div	2ns/div-2000s/div	4ns/div-2000s/div
Video Help	--
SD Card	--
Input Impendence	1MΩ
VOLTS/DIV Range	2mV/div～5V/div
A/D Converter	8bit
Position Range	±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div).
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2
Math	+,-,x,÷,FFT
Cursor Measurement	Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
The float voltage between BNC and Ground	600V CATIII, 1000V CAT II
The float voltage between each Channel	600V CATIII, 1000V CAT II
The float voltage between Multimeter and Ground	1000V
between input Ports directly	400V CAT II
Input by 10:1 probe	600V CATIII, 1000V CAT II
DMM Max. Resolution	6,000 Counts
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC: 600V, DC: 800V
Max. Input Current	AC:10A , DC: 10A
Max. Input Impandance	10MΩ
Display	5.6" TFT 16K Color Display, 640*480 dots
Size	245mm x 163mm x 52mm
Weight	1.3KG(Without Package)
Standard Probe	PP200Bx2	P7150x2	P7150x2	P7060x2

DMM Mode
Max. Resolution	6000 Counts
DMM Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC:600V, DC: 800V
Max. Input Current	AC: 10A, DC:10A
Input Impedence	10MΩ
DMM TrendPlot	1.2M Point
Range	Resolution	Accuracy	Resolution
DC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
AC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
Resistance	600Ω	±1%±3 digit	0.1Ω
	6.000KΩ		1Ω
	60.00KΩ		10Ω
	600.0KΩ		1KΩ
	6.000MΩ		10KΩ
	60.00MΩ	±1%±5 digit	100KΩ
Capacitance	40.00nF	±2%±5 digit	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	400.0uF		100nF
	Attention: the smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V
ON-OFF test	<10Ω

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
TO1000 Series	110MHz 150MHz 200MHz 250MHz	2/4CH(DSO) 1CH(AFG) DMM	1GSa/s 250MSa/s	DSO/DMM/AFG/FFT Light weight and is easy to carry Support fast charging, and abundant power
Hantek2000 Series	70MHz 40MHz	2CH(DSO) 1CH(AFG) DMM	250MSa/s	DSO/DMM/AFG Volume small, one hand holding Type C charging,Ultra-low power design Powerful PC software,with recorder function
DSO8000E Series	70-200 MHz(DSO) 25MHz(AFG)	2CH(DSO) 1CH(AFG)	1GSa/s(DSO) 200MS/s(AFG)	DSO/DMM/AFG/Frequency Counter/Spectral analysis/Recorder IP-51 rated for dust, drip and shake proof, Anti-theft lock/Flash Light/ Tripod fixed hole/2M memory,
DSO1000E Series	70-200MHz	2CH	1GSa/s	DSO/DMM/ Frequency Counter/ Spectral analysis/Recorder IP-51 rated for dust, drip and shake proof Anti-theft lock/Flash Light/ Tripod fixed hole/2M memory,
DSO1000S Series	60/120/150/200MHz	2CH	1GSa/s	6000 Counts DMM High Resolution(640*480), 1M memory depth.
DSO8060 Series(Discontinued)	60MHz	2CH	250MSa/s	DSO/DMM/ Frequency/ Spectral analysis/6000 Counts DMM
DSO1000 Series(Discontinued)	200MHz/60MHz	2CH	500MSa/s 250MSa/s	6000 Counts DMM Resolution(320*240) 32K memory depth
DSO1000B Series(Discontinued)	60MHz-200MHz	2CH	1GSa/s	6000 Counts DMM High Resolution(640*480), 1M memory depth.
DSO1000BV Series (Discontinued)	60MHz-200MHz	2CH	1GSa/s	6000 Counts DMM High Resolution(640*480), 1M memory depth. Video auxiliary function

DSO1000S Software

2013-04-07

DSO1000S Driver

2013-04-07

DSO1062S Firmware

2013-04-07

DSO1122S Firmware

2013-04-07

DSO1152S Firmware

2013-04-07

DSO1202S Firmware

2014-05-22

DSO1000S Manual

2013-04-07
