Measure DC current maximum of 50A;
Measure DC voltage maximum range 2000V;
Two sets of multimeter input ports are front and back, which are convenient for testing system wiring;
High-speed acquisition of 30 k/s is conducive to capturing transient signals;
Standard bar chart, histogram, trend chart and data statistics functions;
Dual display measurement function, can display voltage and frequency measurement values ??at the same time;
Measurement of true ac voltage and true ac current;
0.1 μV resolution, simple operation, flexible parameters;
Various measurement functions: DC voltage, AC voltage, DC current, AC current, 2-wire resistor, 4-wire resistor, capacitor, diode, connectivity, frequency, period, temperature;
4.3-inch 64 K color TFT LCD screen;
Supports SCPI remote control commands, is compatible with the mainstream multimeter command set on the market, and is equipped with computer-side upper computer control software as standard;
Configuration interface: USB Device, USB Host, RS232/485, LAN, GPIB (optional).

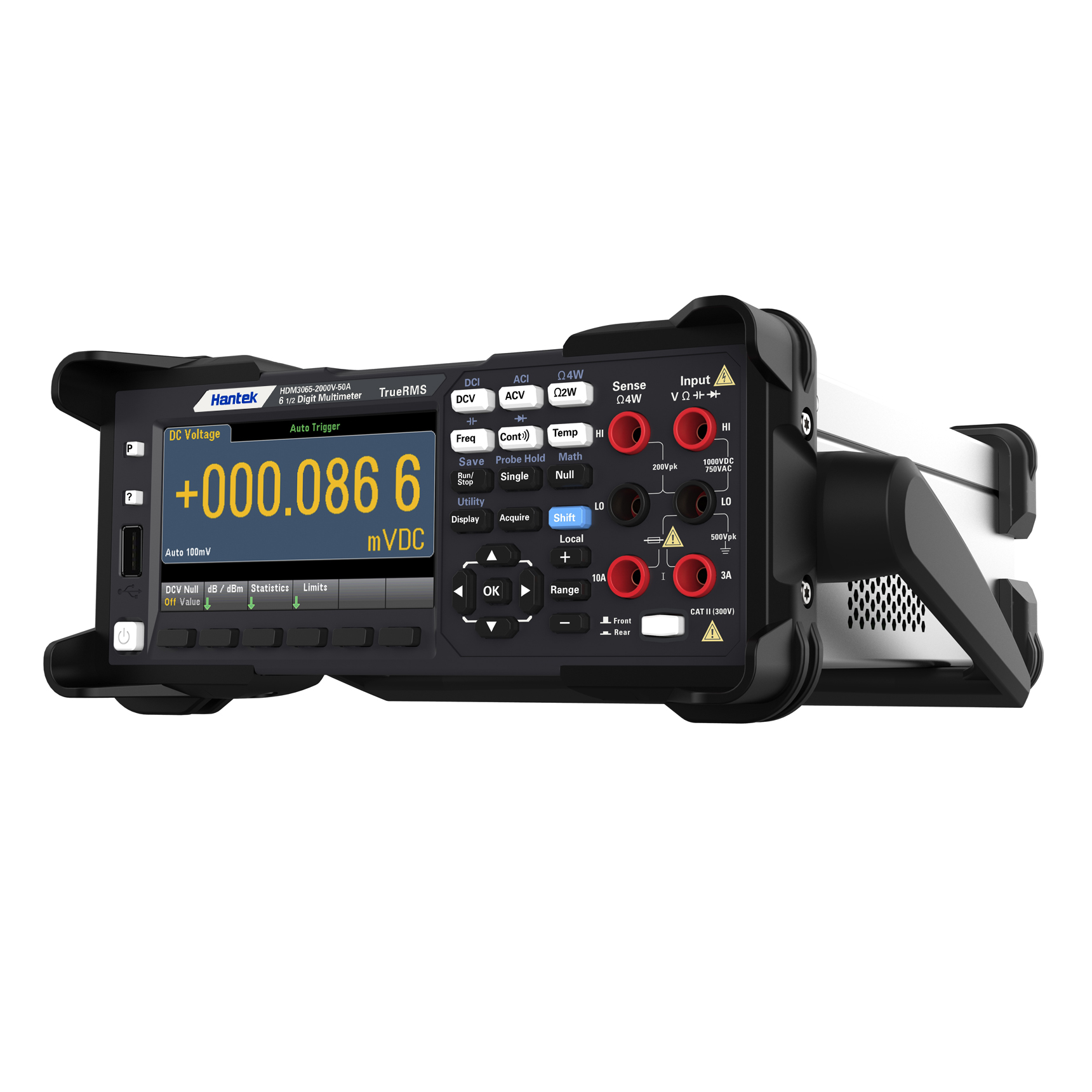

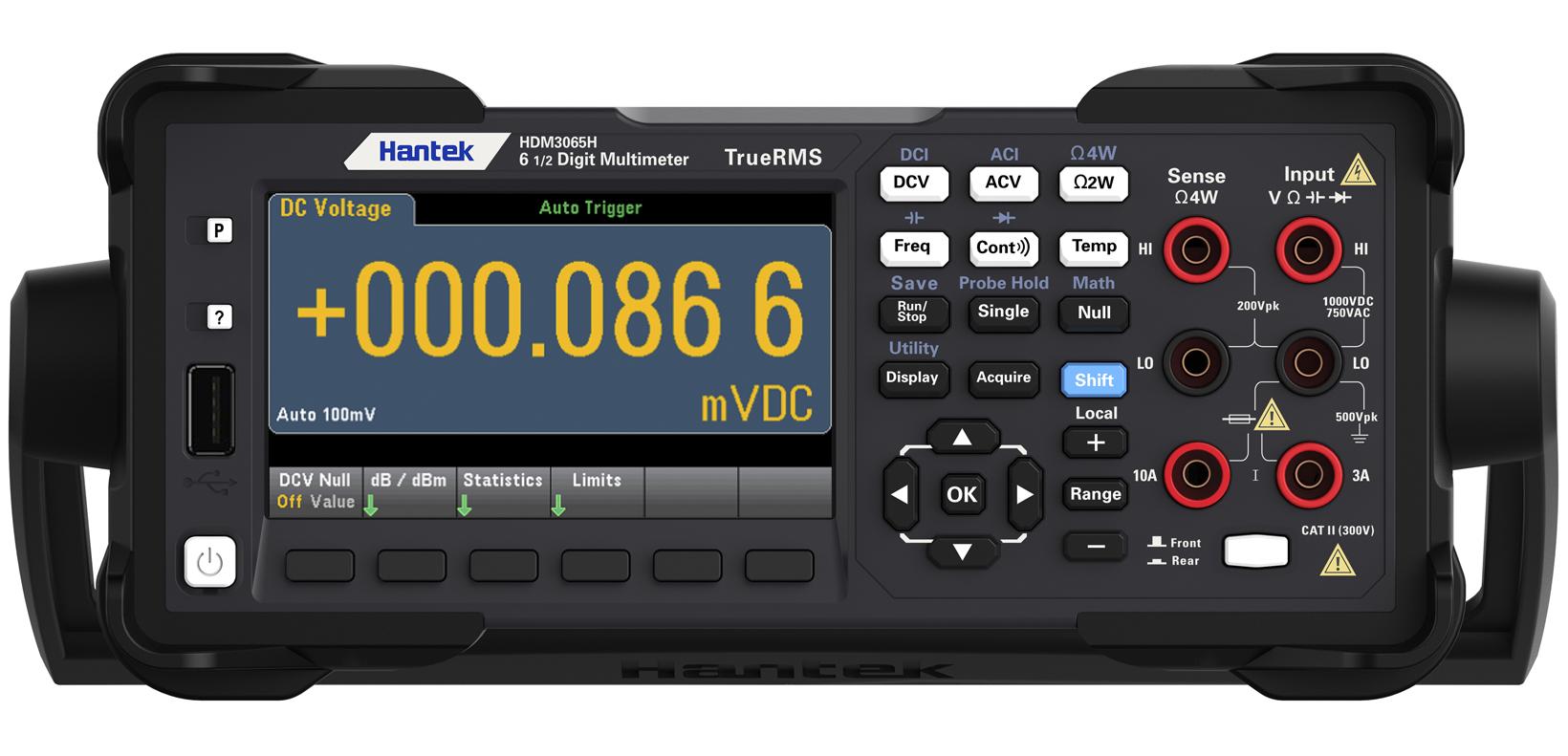

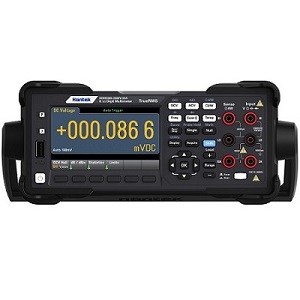

A real six-digit multimeter

The maximum current range is 50A; DC voltage up to 2000V; 4.3-inch 64 K color TFT LCD screen; With ± 2,200,000 counts, with a larger measurement range; High-speed acquisition at 30 k/s is conducive to capturing transient signals.

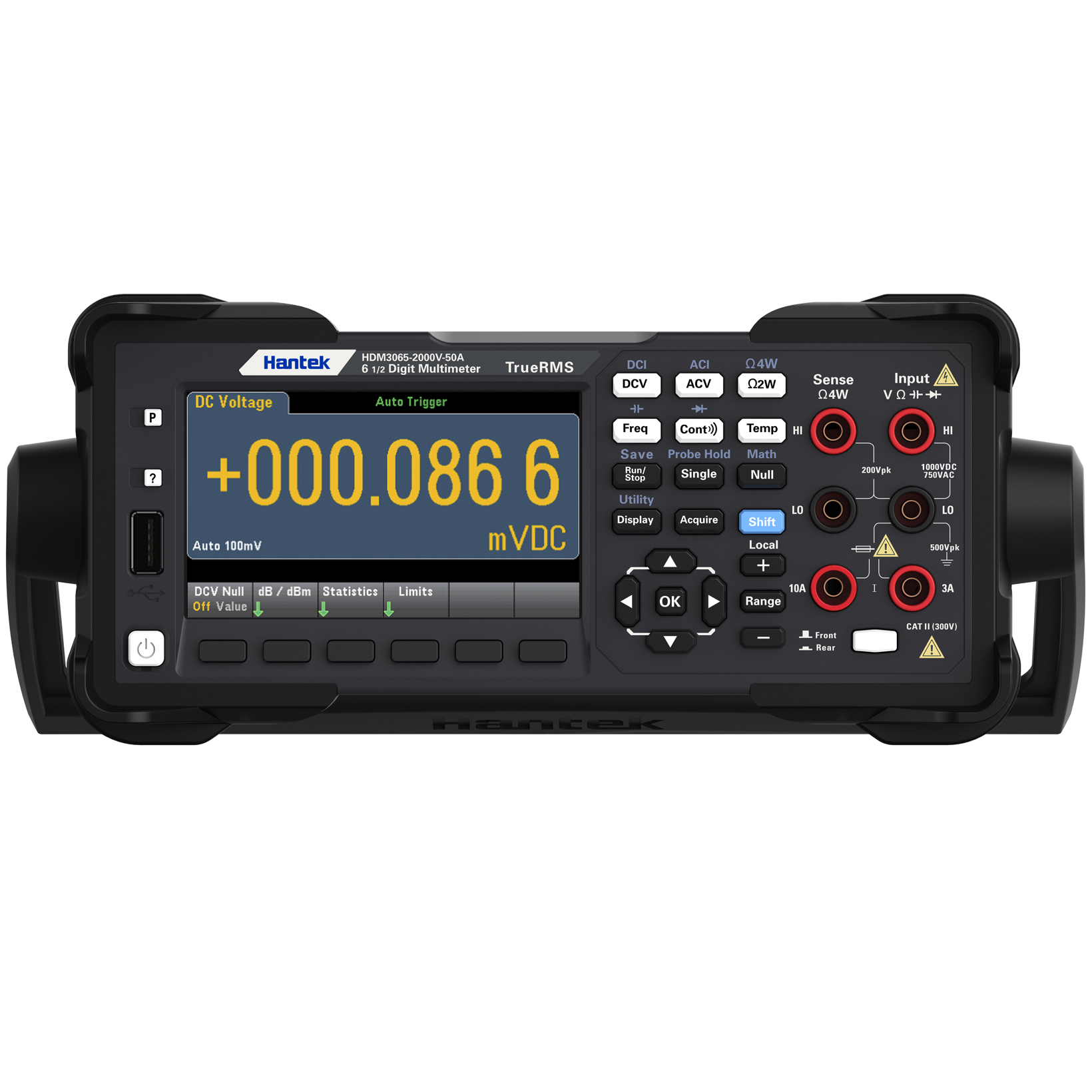

Two sets of multimeter input interfaces in front and back

Multimeter input port before and after two sets, easy to test system wiring; Dual display measurement function, can display voltage and frequency measurement values at the same time.

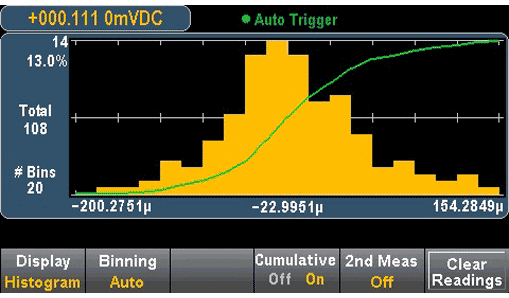

Bar chart, trend chart, histogram, data statistics functions

Standard bar charts, histograms, trend charts and data statistics functions; Dual display measurement function, which can display voltage and frequency measurement values ??at the same time; Histogram with statistics and trend charts.

Powerful mathematical operation function

Mathematical operations-dB/dBm measurement; Dual display measurement function, which can display voltage and frequency measurement values ??at the same time; Various measurement functions: DC voltage, AC voltage, DC current, AC current, 2-wire resistor, 4-wire resistor, capacitor, diode, connectivity, frequency, period, temperature, current range up to 50 A.

Maximum DC current	50A
DC voltage measurement range, accuracy	100mV-2000V,0.004%
DC current measurement range, accuracy	100μA-50A, 0.5%
AC voltage measurement value	True-RMS, 100mV, 1V, 10V, 100V, 750V
AC current measurement value	True-RMS, 100μA, 1mA, 10mA, 100mA, 1A, 3A, 10A
Resistance measurement range, accuracy	100Ω-100 MΩ, 0.01%
Capacitance measurement	1nF, 10nF, 100nF, 1μF, 10μF, 100μF
Connectivity test	The range is fixed at 1 KΩ.
Diode test	0-5V threshold can be set
Frequency test	3Hz-300 KHz
Periodic Test	1μs-0.33s
Temperature measurement	Supports thermocouple and thermal resistance measurement
Multiple measurement functions	DC voltage, AC voltage, DC current, AC current, 2-wire resistor, 4-wire resistor, capacitor, diode, connectivity, frequency, period, temperature
Display	4.3 inch 64 K color TFT LCD screen
Reading resolution	Six and a half (0.1 uV)
Memory	10,000 readings per second
Standard interface	USB、RS232/485、LAN
Optional interface	GPIB

Maximum DC current	50A
DC voltage measurement range, accuracy	100mV-2000V,0.004%
DC current measurement range, accuracy	100μA-50A, 0.5%
AC voltage measurement value	True-RMS, 100mV, 1V, 10V, 100V, 750V
AC current measurement value	True-RMS, 100μA, 1mA, 10mA, 100mA, 1A, 3A, 10A
Resistance measurement range, accuracy	100Ω-100 MΩ, 0.01%
Capacitance measurement	1nF, 10nF, 100nF, 1μF, 10μF, 100μF
Connectivity test	The range is fixed at 1 KΩ.
Diode test	0-5V threshold can be set
Frequency test	3Hz-300 KHz
Periodic Test	1μs-0.33s
Temperature measurement	Supports thermocouple and thermal resistance measurement
Multiple measurement functions	DC voltage, AC voltage, DC current, AC current, 2-wire resistor, 4-wire resistor, capacitor, diode, connectivity, frequency, period, temperature
Display	4.3 inch 64 K color TFT LCD screen
Reading resolution	Six and a half (0.1 uV)
Memory	10,000 readings per second
Standard interface	USB、RS232/485、LAN
Optional interface	GPIB

【Tip: up to 4 products can be compared】

Series	Number of Digits	Max reading rate	I/O interface	DC Voltage Accuracy in a Year
HDM3065 Series	6 1/2	30, 000readings/s	USB, RS232/485 LAN, GPIB	35 ppm
HDM3055 Series	5 1/2	30, 000 readings/s	USB, RS232/485 LAN, GPIB	150 ppm
HDM3065-2000V-50A	6 1/2	30,000 readings per second	USB，RS232/485 LAN，GPIB	35 PPM
