HDL2500+ Series DC Electronic Loads

Overview
Parameters
Comparison
Accessories
Download
Probe
Video

The 4.3-inch LCD color display provides users with a clear and intuitive visual experience;
Resolution up to 0.1mV/1mV/ 0.1mA to accurately test the performance of the device under test;
Timing control list programming for accurate, high-speed simulation of complex changing currents;
Equipped with USB/LAN/RS232 interfaces, supporting SCPI protocol, convenient for data interaction and remote control;
OCP/OPP test, the instrument automatically captures the OCP and OPP points and determines whether the test result exceeds the set specifications;
With voltage rise/fall time test function and ripple measurement function;
Voltage and current measurement rate up to 100KHz;
Remote measurement terminals are provided to compensate for voltage drop across the line and improve remote measurement accuracy;
Four operating modes: constant voltage/current/resistance/power, easy to simulate a variety of characteristics of loads;

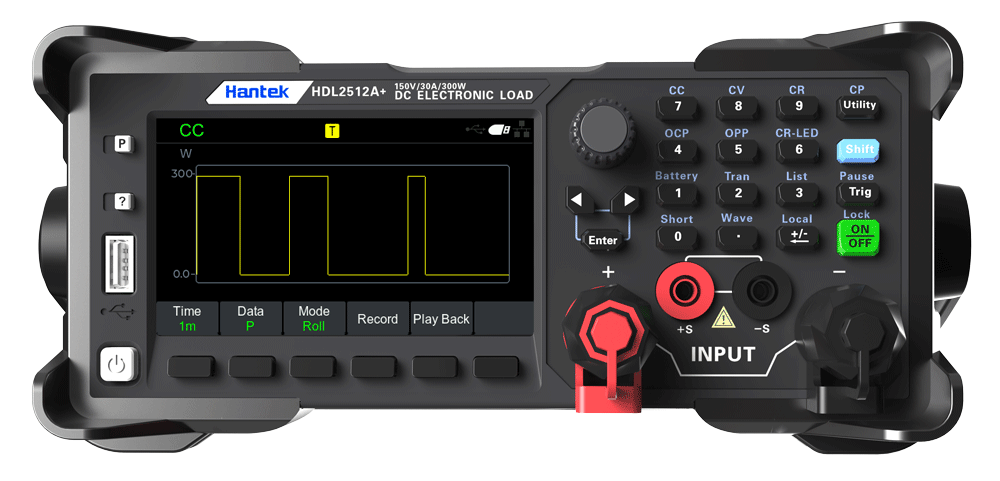

Waveform display and record

It can real-time display and record the change process of current, voltage, resistance and power value under various modes, and generate dynamic curve for storage.

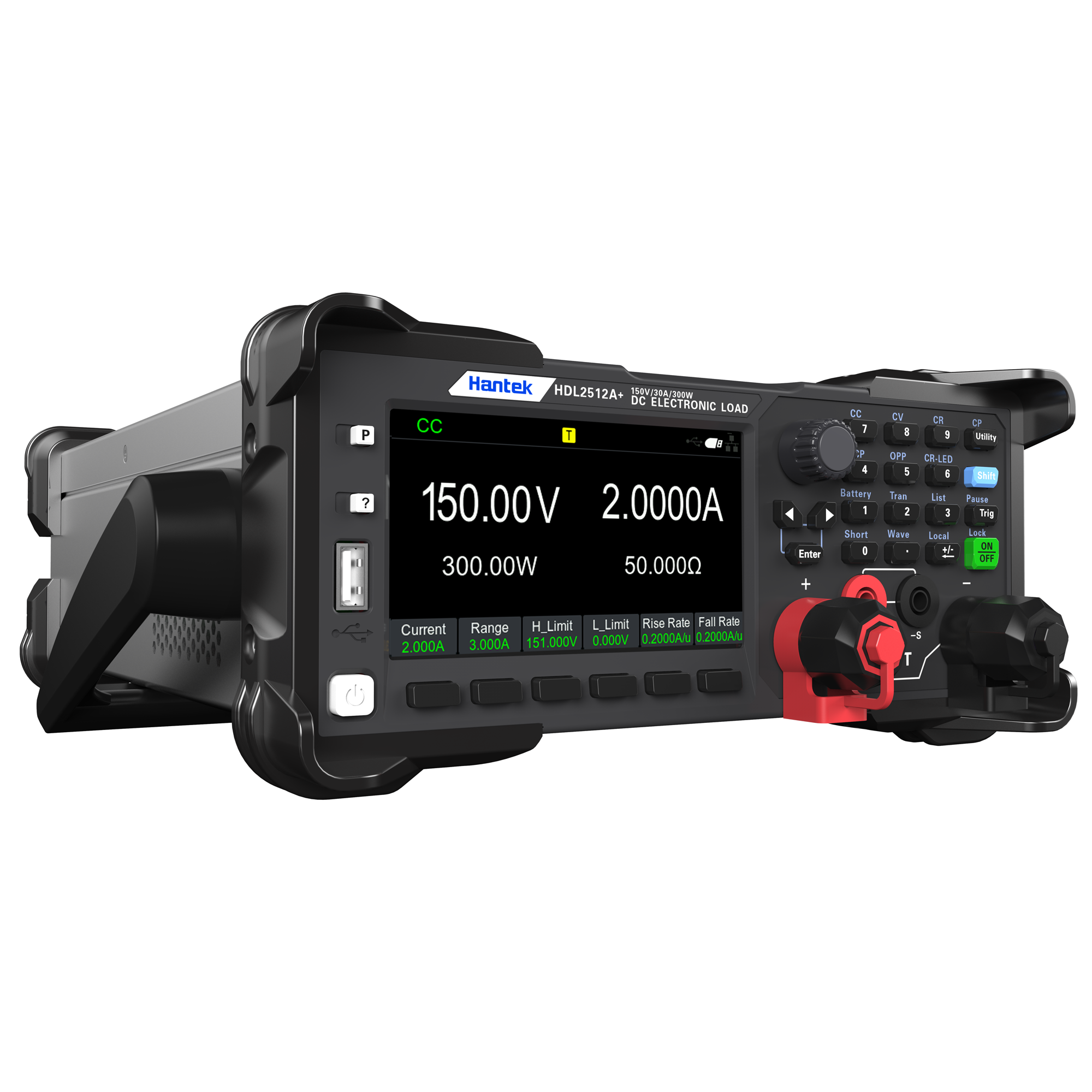

CC: Constant Current

Regardless of the input voltage change, the load will pull load according to the set current, making the load work in constant current mode.

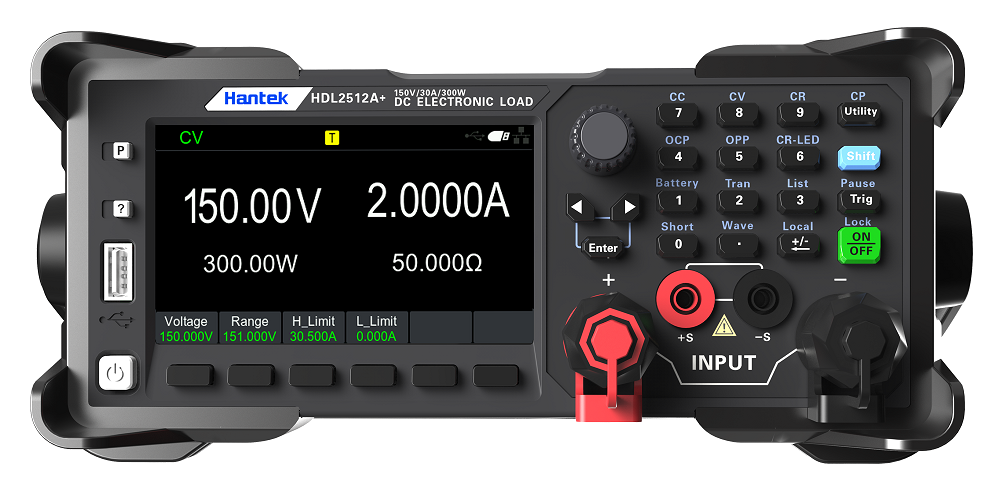

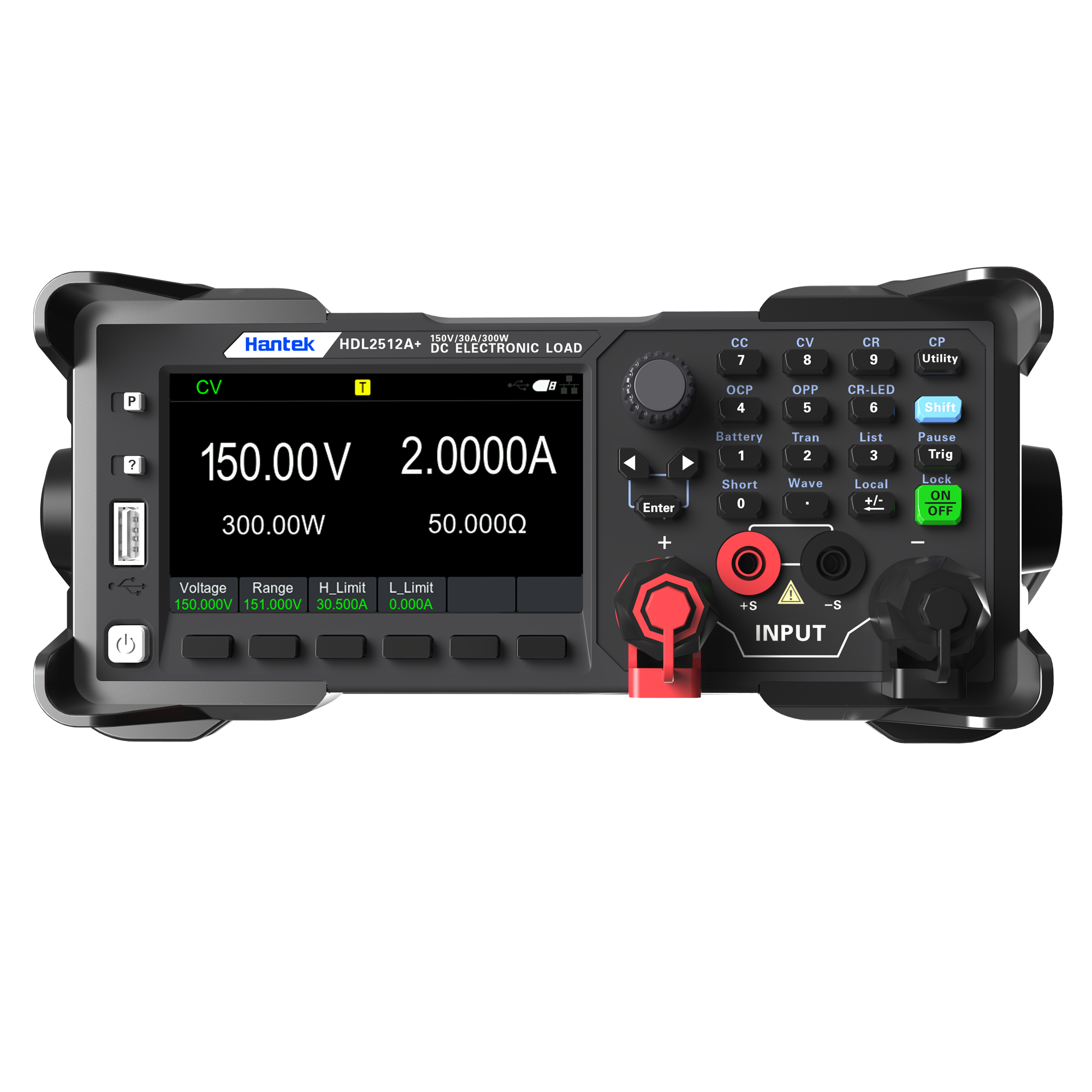

CV: Constant Voltage

In this mode, the load maintains the input voltage at a constant value by pulling the load current.

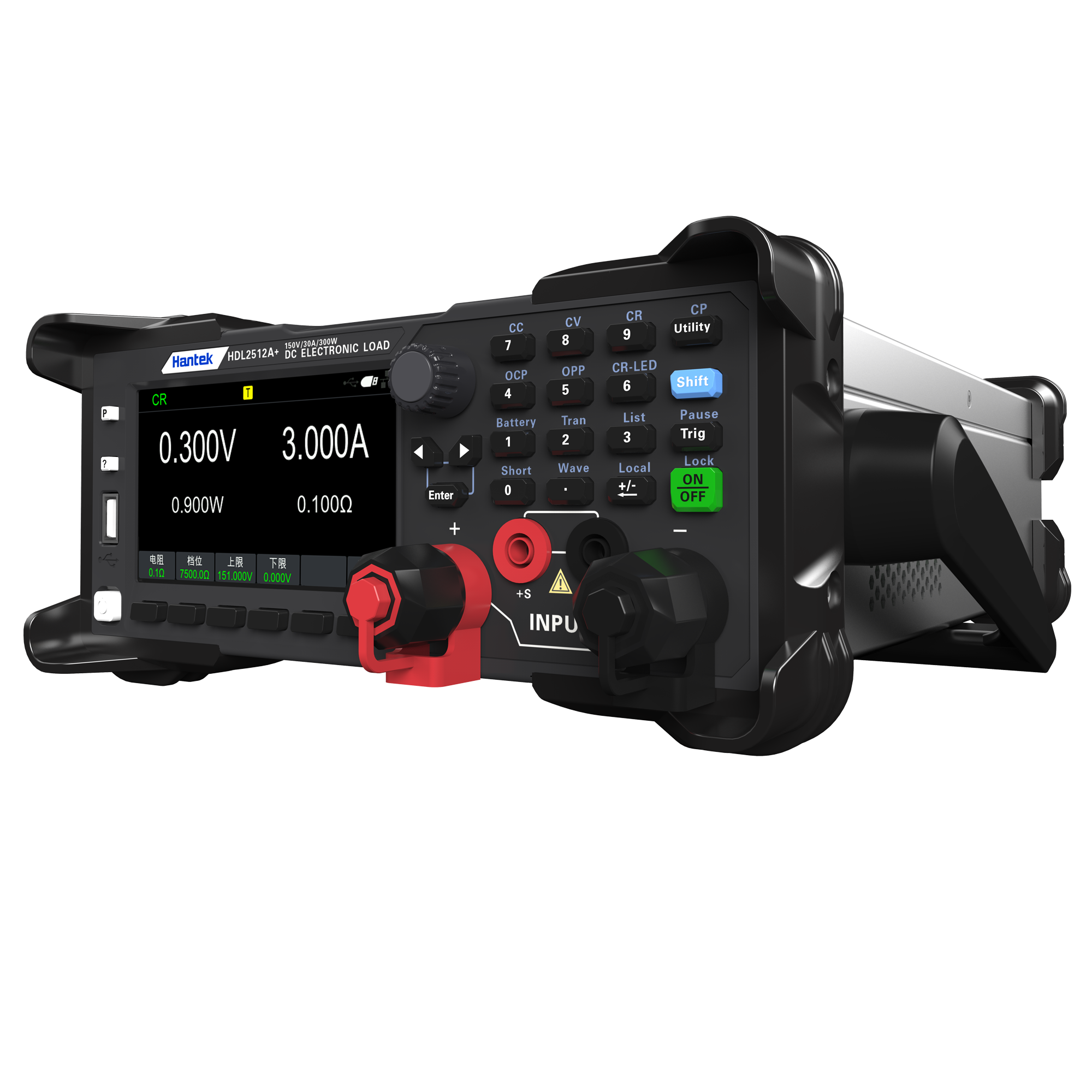

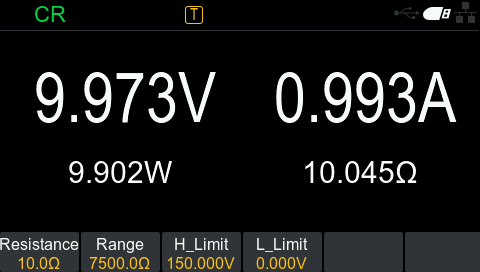

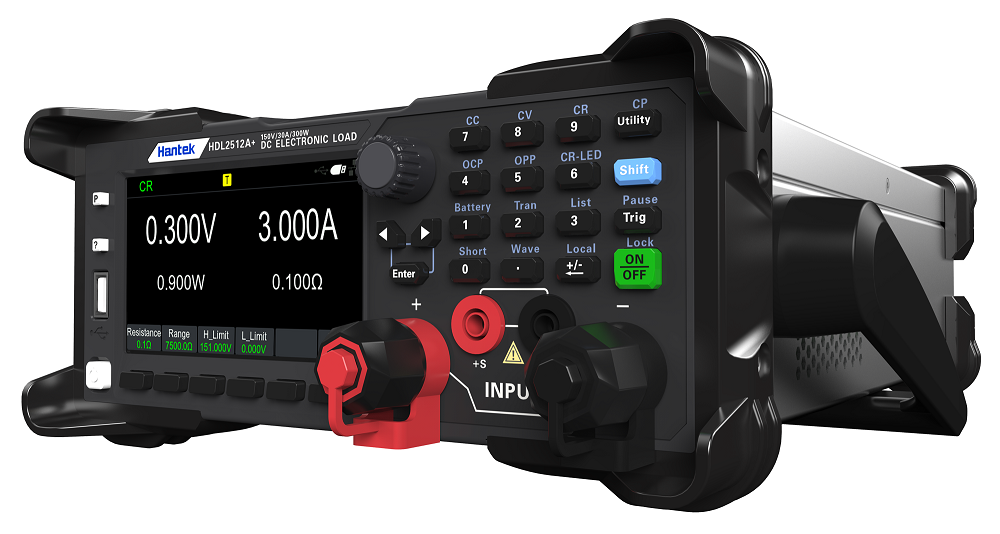

CR: Constant Resistance

In this mode, the load is equated to a constant resistance; variable from 0.1 ohms to 7500 ohms.

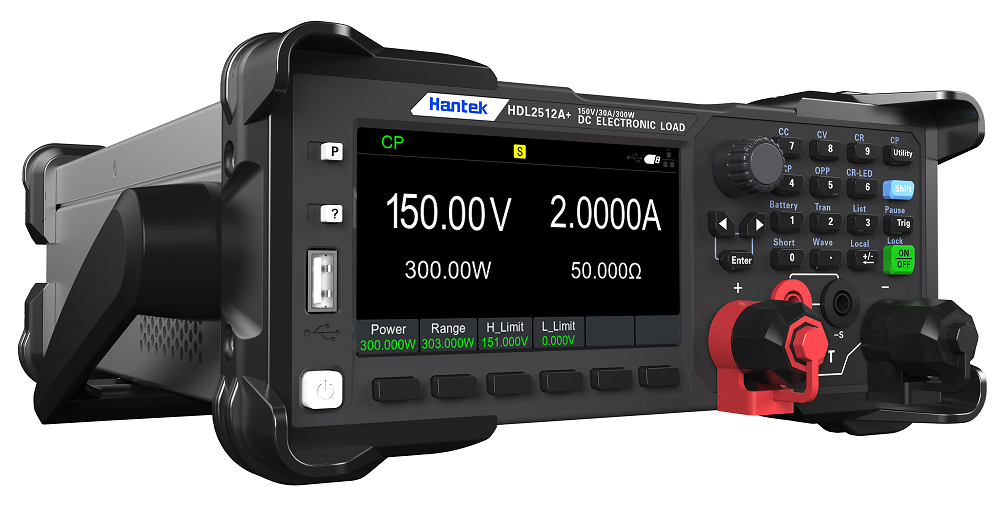

CP: Constant Power

This mode will pull the load at a constant power.

Voltage rise/fall time test function and ripple measurement function

It can accurately assess the dynamic response and stability of the power supply, quickly locate transient anomalies and ripple exceeding the standard, and improve the debugging efficiency and reliability of power supply design.

OCP/OPP Test

The instrument automatically captures OCP and OPP points and determines whether the test results are out of the set specifications, saving the user's verification time for design verification and system generation.

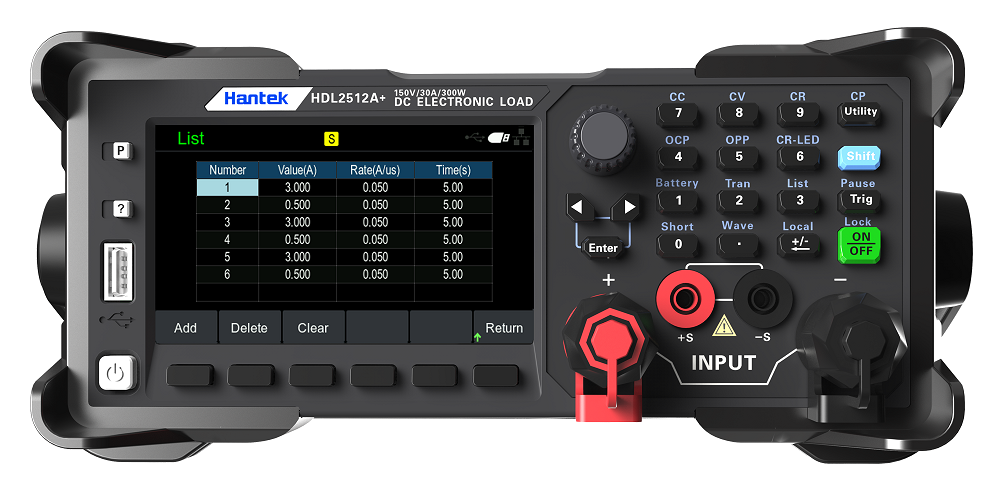

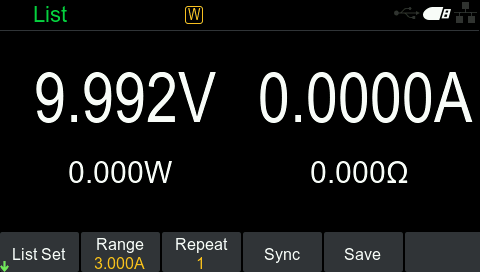

List Features

The loads can accurately simulate complex arbitrary current patterns at high speeds, allowing for precision testing with multiple aligned loads.

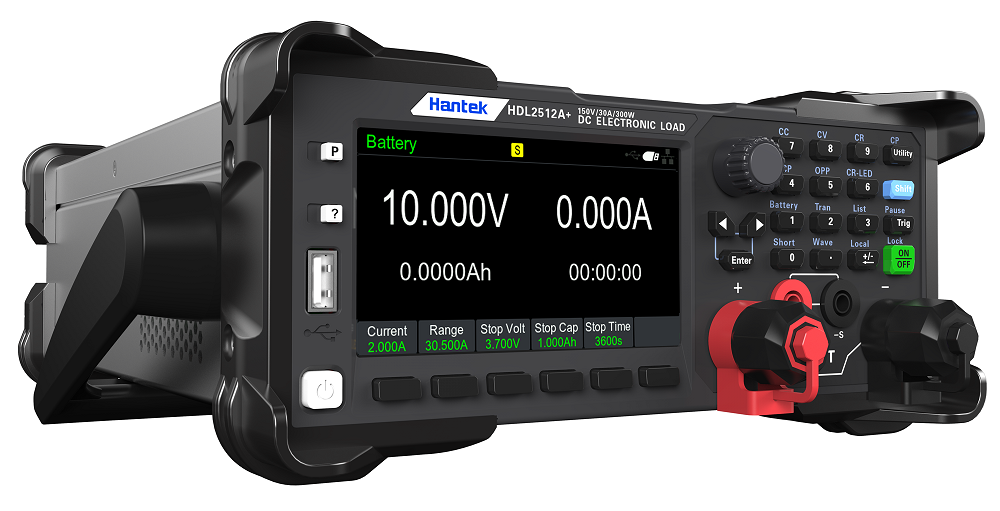

Battery Function

Automatically stops the test when the battery drops to the end of voltage or has been discharged to the end of capacity or reaches the end of time. Ensures that the battery is not over-discharged and damaged.

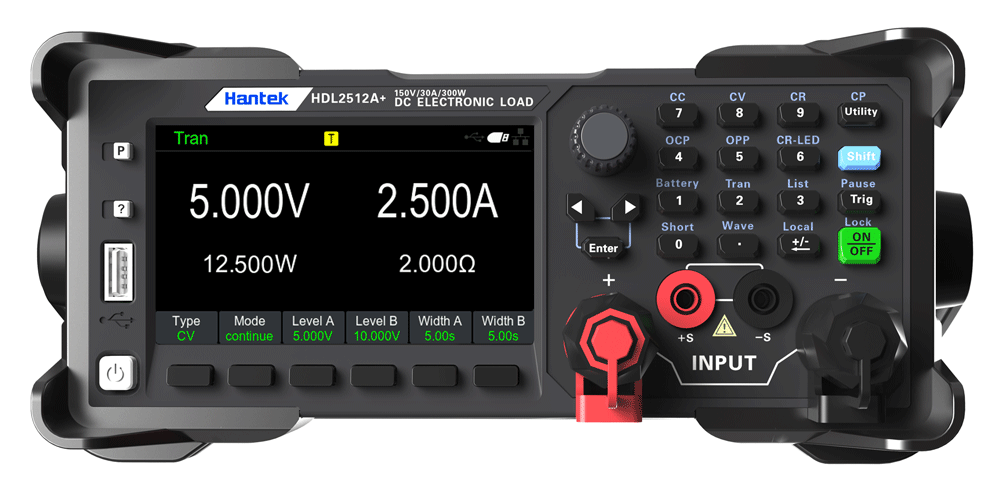

Tran Function

This function can be used to test the dynamic characteristics of the device under test by switching the electronic load between two set parameters (A value and B value). Dynamic test modes can be categorized into continuous mode, pulse mode and flip-flop mode.

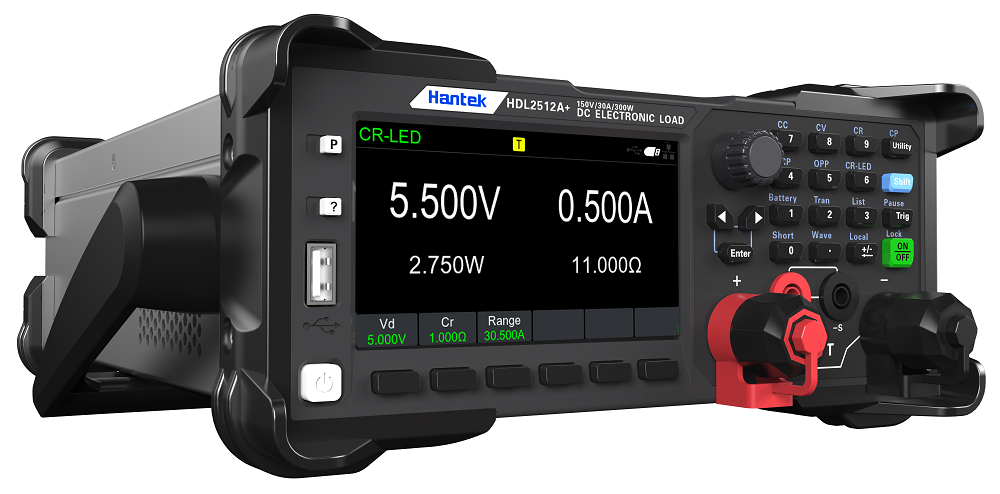

CR-LED

Increase the setting of diode on voltage, more realistically simulate the working principle of diode, to avoid the traditional CR mode voltage and current instability generated by the vibration.

Model	Voltage	Current	Power	Resolution	Accuracy	Interface	Size
Model	Voltage	Current	Power	Resolution	Accuracy	Interface	Size
HDL2512A+	150V	30A	300W	0.1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232	1/2 2U
HDL2512B+	500V	15A	300W	1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232	1/2 2U
HDL2512C+	120V	60A	300W	0.1mv/1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232	1/2 2U
HDL2512H+	800V	5A	300W	1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232	1/2 2U
HDL2512A++	150V	30A	300W	0.1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U
HDL2512B++	500V	15A	300W	1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U
HDL2512C++	120V	60A	300W	0.1mv/1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U
HDL2512H++	800V	5A	300W	1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U
HDL2513A+	150V	60A	600W	0.1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U
HDL2513B+	500V	30A	600W	1mv/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U
HDL2513C+	120V	120A	600W	0.1mv/1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	USB,RS232,LAN	1/2 2U

Model		HDL2512A+
Rated value ( 0～40 ℃)	Input Voltage	0~150V
	Input Current	0~3A	0~30A
	Input Power	300W
	Minimum operating voltage	0.14V at 3A	1.4V at 30A
Constant Voltage mode	Range	0.1~18V	0.1~150V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode	Range	0~3A	0~30A
	Resolution	1mA	10mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode*1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	1mW
	Accuracy	±（0.1%+0.1%FS）
Dynamic mode (CC mode)
T1＆T2		20μS~3600S /Res:1μS
Accuracy		2μS±100ppm
Rise/Fall rate *4		0.0001~0.2A/μS	0.001~1.5A/μS
Minimum rise time*5		≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~18V	0~150V
	Resolution	0.1 mV	1 mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~3A	0~30A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.1%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒3.3A	≒33A
Specification
Short circuit	Current (CC)	≒3.3/3A	≒33/30A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model		HDL2512B+
Rated value ( 0～40 ℃)	Input Voltage	0~500V
	Input Current	0~1.5A	0~15A
	Input Power	300W
	Minimum operating voltage	0.3V at 1.5A	3V at 15A
Constant Voltage mode	Range	0.1~50V	0.1~500V
	Resolution	10mV	100mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~1.5A	0~15A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode*1	Range	0.3Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	10mW
	Accuracy	0.1%+0.2%
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.2A/μS	0.001~0.8A/μS
	Minimum risetime*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~50V	0~500V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~1.5A	0~15A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.1%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒1.6A	≒16A
Specification
Short circuit	Current (CC)	≒1.6/1.5A	≒16/15A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒180mΩ	≒180mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model		HDL2512C+
Rated value ( 0～40 ℃)	Input Voltage	0~120V
	Input Current	0~6A	0~60A
	Input Power	300W
	Minimum operating voltage	0.25V at 6A	2.5V at 60A
Constant Voltage mode	Input Voltage	0.1~15V	0.1~120V
	Input Current	1mV	10mV
	Input Power	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant current mode	Input Voltage	0~6A	0~60A
	Input Current	1mA	10mA
	Input Power	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant resistance mode*1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.3A/μS	0.001~3A/μS
	Minimum risetime*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~15V	0~120V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Power readback value	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒6.5A	≒65A
Specification
Short circuit	Current (CC)	≒6.5/6A	≒65/60A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model		HDL2512H+
Rated value ( 0～40 ℃)	Input Voltage	0~800V
	Input Current	0~0.5A	0~5A
	Input Power	300W
	Minimum operating voltage	0.7V at 0.5A	7V at 5A
Constant Voltage mode	Range	0.1~80V	0.1~800V
	Resolution	10mV	100mV
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~0.5A	0~5A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant resistance mode*1	Range	2Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	10mW
	Accuracy	0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.04A/μS	0.001~0.2A/μS
	Minimum risetime*5	≒20uS	≒20uS
Measurement range
Voltage readback value	Range	0~80V	0~800V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~0.5A	0~5A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒0.55A	≒5.5A
Specification
Short circuit	Current (CC)	≒0.55/0.5A	≒5.5/5A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒1.4Ω
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model			HDL2512A++
Rated value ( 0～40 ℃)		Input Voltage	0~150V
		Input Current	0~3A	0~30A
		Input Power	300W
		Minimum operating voltage	0.14V at 3A	1.4V at 30A
Constant Voltage mode		Range	0.1~18V	0.1~150V
		Resolution	1mV	1mV
		Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode		Range	0~3A	0~30A
		Resolution	1mA	1mA
		Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1		Range	0.1Ω~10Ω	10Ω~7500Ω
		Resolution	16bit
		Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3		Range	300W
		Resolution	1mW
		Accuracy	±（0.1%+0.1%FS）
Dynamic mode (CC mode)
T1＆T2			20μS~3600S /Res:1μS
Accuracy			2μS±100ppm
Rise/Fall rate *4			0.0001~0.2A/μS	0.001~1.5A/μS
Minimum rise time *5			≒10uS	≒10uS
Measurement range
Voltage readback value	Range		0~18V	0~150V
	Resolution		0.1 mV	1 mV
	Accuracy		±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range		0~3A	0~30A
	Resolution		0.1mA	1mA
	Accuracy		±(0.05%+0.05%FS)
Power readback value	Range		300W
	Resolution		1mW
	Accuracy		±(0.1%+0.1%FS)
Protection range
Overpower protection			≒320W
Overcurrent protection			≒3.3A	≒33A
Specification
Short circuit	Current (CC)		≒3.3/3A	≒33/30A
	Voltage (CV)		0V	0V
	Resistance (CR)		≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2512B++
Rated value ( 0～40 ℃)	Input Voltage	0~500V
	Input Current	0~1.5A	0~15A
	Input Power	300W
	Minimum operating voltage	0.3V at 1.5A	3V at 15A
Constant Voltage mode	Range	0.1~50V	0.1~500V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~1.5A	0~15A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	0.3Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	300W
	Resolution	10mW
	Accuracy	0.1%+0.2%
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.2A/μS	0.001~0.8A/μS
	Minimum rise time*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~50V	0~500V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~1.5A	0~15A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.1%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒1.6A	≒16A
Specification
Short circuit	Current (CC)	≒1.6/1.5A	≒16/15A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒180mΩ	≒180mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2512C++
Rated value ( 0～40 ℃)	Input Voltage	0~120V
	Input Current	0~6A	0~60A
	Input Power	300W
	Minimum operating voltage	0.25V at 6A	2.5V at 60A
Constant Voltage mode	Range	0.1~18V	0.1~120V
	Resolution	1mV	1mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant current mode	Range	0~6A	0~60A
	Resolution	b1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant resistance mode *1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.3A/μS	0.001~3A/μS
	Minimum rise time*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~18V	0~120V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Power readback value	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒6.5A	≒65A
Specification
Short circuit	Current (CC)	≒6.5/6A	≒65/60A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2512H++
Rated value ( 0～40 ℃)	Input Voltage	0~800V
	Input Current	0~0.5A	0~5A
	InputPower	300W
	Minimum operating voltage	0.7V at 0.5A	7V at 5A
Constant Voltage mode	Range	0.1~80V	0.1~800V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~0.5A	0~5A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	2Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	300W
	Resolution	10mW
	Accuracy	(0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate *4	0.0001~0.04A/μS	0.001~0.2A/μS
	Minimum rise time *5	≒20uS	≒20uS
Measurement range
Voltage readback value	Range	0~80V	0~800V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~0.5A	0~5A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒0.55A	≒5.5A
Specification
Short circuit	Current (CC)	≒0.55/0.5A	≒5.5/5A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒1.4Ω
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2513A+
Rated value ( 0～40℃)	Input Voltage	0~150V
	Input Current	0~6A	0~60A
	Input Power	600W
	Minimum operating voltage	0.25V at 6A	2.5V at 60A
Constant Voltage mode	Range	0.1~18V	0.1~150V
	Resolution	1mV	1mV
	Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode	Range	0~6A	0~60A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	600W
	Resolution	1mW
	Accuracy	±(0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	100μS~3600S /Res:1μS
	Accuracy	10μS±100ppm
	Rise/Fall rate *4	0.001~0.15A/μS	0.01~1A/μS
	Minimum rise time *5	≒50uS	≒60uS
Measurement range
Voltage readback value	Range	0~18V	0~150V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	600W
	Resolution	1mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒620W
Overcurrent protection		≒6.6A	≒66A
Specification
Short circuit	Current (CC)	≒6.6/6A	≒66/60A
	Voltage (CV)	≒0V
	Resistance (CR)	≒30mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm455mm

Model		HDL2513B+
Rated value ( 0～40 ℃)	Input Voltage	0~500V
	Input Current	0~3A	0~30A
	Input Power	600W
	Minimum operating voltage	0.3V at 3A	3V at 30A
Constant Voltage mode	Range	0.1~50V	0.1~500V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~3A	0~30A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.02%+0.08S*2	0.02%+0.0008S
Constant power mode *3	Range	600W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	100μS~3600S /Res:1μS
	Accuracy	10μS±100ppm
	Rise/Fall rate*4	0.001~0.05A/μS	0.01~0.5A/μS
	Minimum rise time*5	≒60uS	≒60uS
Measurement range
Voltage readback value	Range	0~50V	0~500V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	600W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒650W
Overcurrent protection		≒3,3A	≒33A
Specification
Short circuit	Current (CC)	≒3.4/3A	≒34/30A
	Voltage (CV)	0V
	Resistance (CR)	≒100mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm455mm

Model		HDL2513C+
Rated value ( 0～40 ℃)	Input Voltage	0~120V
	Input Current	0~12A	0~120A
	Input Power	600W
	Minimum operating voltage	0.2V at 12A	2V at 120A
Constant Voltage mode	Range	0.1~18V	0.1~120V
	Resolution	1mV	1mV
	Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode	Range	0~12A	0~120A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant resistancemode*1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	600W
	Resolution	10mW
	Accuracy	±（0.2%+0.2%FS）
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	100μS~3600S /Res:1μS
	Accuracy	10μS±100ppm
	Rise/Fall rate*4	0.001~0.2A/μS	0.01~1.6A/μS
	Minimum rise time*5	≒60uS	≒60uS
Measurement range
Voltage readback value	Range	0~18V	0~120V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~12A	0~120A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Power readback value	Range	600W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒620W
Overcurrent protection		≒13A	≒130A
Specification
Short circuit	Current (CC)	≒13/12A	≒130/120A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒15mΩ	≒15mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm455mm

Model		HDL2512A+
Rated value ( 0～40 ℃)	Input Voltage	0~150V
	Input Current	0~3A	0~30A
	Input Power	300W
	Minimum operating voltage	0.14V at 3A	1.4V at 30A
Constant Voltage mode	Range	0.1~18V	0.1~150V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode	Range	0~3A	0~30A
	Resolution	1mA	10mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode*1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	1mW
	Accuracy	±（0.1%+0.1%FS）
Dynamic mode (CC mode)
T1＆T2		20μS~3600S /Res:1μS
Accuracy		2μS±100ppm
Rise/Fall rate *4		0.0001~0.2A/μS	0.001~1.5A/μS
Minimum rise time*5		≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~18V	0~150V
	Resolution	0.1 mV	1 mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~3A	0~30A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.1%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒3.3A	≒33A
Specification
Short circuit	Current (CC)	≒3.3/3A	≒33/30A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model		HDL2512B+
Rated value ( 0～40 ℃)	Input Voltage	0~500V
	Input Current	0~1.5A	0~15A
	Input Power	300W
	Minimum operating voltage	0.3V at 1.5A	3V at 15A
Constant Voltage mode	Range	0.1~50V	0.1~500V
	Resolution	10mV	100mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~1.5A	0~15A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode*1	Range	0.3Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	10mW
	Accuracy	0.1%+0.2%
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.2A/μS	0.001~0.8A/μS
	Minimum risetime*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~50V	0~500V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~1.5A	0~15A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.1%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒1.6A	≒16A
Specification
Short circuit	Current (CC)	≒1.6/1.5A	≒16/15A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒180mΩ	≒180mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model		HDL2512C+
Rated value ( 0～40 ℃)	Input Voltage	0~120V
	Input Current	0~6A	0~60A
	Input Power	300W
	Minimum operating voltage	0.25V at 6A	2.5V at 60A
Constant Voltage mode	Input Voltage	0.1~15V	0.1~120V
	Input Current	1mV	10mV
	Input Power	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant current mode	Input Voltage	0~6A	0~60A
	Input Current	1mA	10mA
	Input Power	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant resistance mode*1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.3A/μS	0.001~3A/μS
	Minimum risetime*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~15V	0~120V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Power readback value	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒6.5A	≒65A
Specification
Short circuit	Current (CC)	≒6.5/6A	≒65/60A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model		HDL2512H+
Rated value ( 0～40 ℃)	Input Voltage	0~800V
	Input Current	0~0.5A	0~5A
	Input Power	300W
	Minimum operating voltage	0.7V at 0.5A	7V at 5A
Constant Voltage mode	Range	0.1~80V	0.1~800V
	Resolution	10mV	100mV
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~0.5A	0~5A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant resistance mode*1	Range	2Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	300W
	Resolution	10mW
	Accuracy	0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.04A/μS	0.001~0.2A/μS
	Minimum risetime*5	≒20uS	≒20uS
Measurement range
Voltage readback value	Range	0~80V	0~800V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~0.5A	0~5A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒0.55A	≒5.5A
Specification
Short circuit	Current (CC)	≒0.55/0.5A	≒5.5/5A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒1.4Ω
Input terminal impedance	500KΩ
Interface	USB,RS232
Dimension	208.5mm84.5mm325mm

Model			HDL2512A++
Rated value ( 0～40 ℃)		Input Voltage	0~150V
		Input Current	0~3A	0~30A
		Input Power	300W
		Minimum operating voltage	0.14V at 3A	1.4V at 30A
Constant Voltage mode		Range	0.1~18V	0.1~150V
		Resolution	1mV	1mV
		Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode		Range	0~3A	0~30A
		Resolution	1mA	1mA
		Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1		Range	0.1Ω~10Ω	10Ω~7500Ω
		Resolution	16bit
		Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3		Range	300W
		Resolution	1mW
		Accuracy	±（0.1%+0.1%FS）
Dynamic mode (CC mode)
T1＆T2			20μS~3600S /Res:1μS
Accuracy			2μS±100ppm
Rise/Fall rate *4			0.0001~0.2A/μS	0.001~1.5A/μS
Minimum rise time *5			≒10uS	≒10uS
Measurement range
Voltage readback value	Range		0~18V	0~150V
	Resolution		0.1 mV	1 mV
	Accuracy		±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range		0~3A	0~30A
	Resolution		0.1mA	1mA
	Accuracy		±(0.05%+0.05%FS)
Power readback value	Range		300W
	Resolution		1mW
	Accuracy		±(0.1%+0.1%FS)
Protection range
Overpower protection			≒320W
Overcurrent protection			≒3.3A	≒33A
Specification
Short circuit	Current (CC)		≒3.3/3A	≒33/30A
	Voltage (CV)		0V	0V
	Resistance (CR)		≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2512B++
Rated value ( 0～40 ℃)	Input Voltage	0~500V
	Input Current	0~1.5A	0~15A
	Input Power	300W
	Minimum operating voltage	0.3V at 1.5A	3V at 15A
Constant Voltage mode	Range	0.1~50V	0.1~500V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~1.5A	0~15A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	0.3Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	300W
	Resolution	10mW
	Accuracy	0.1%+0.2%
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.2A/μS	0.001~0.8A/μS
	Minimum rise time*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~50V	0~500V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~1.5A	0~15A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.1%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒1.6A	≒16A
Specification
Short circuit	Current (CC)	≒1.6/1.5A	≒16/15A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒180mΩ	≒180mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2512C++
Rated value ( 0～40 ℃)	Input Voltage	0~120V
	Input Current	0~6A	0~60A
	Input Power	300W
	Minimum operating voltage	0.25V at 6A	2.5V at 60A
Constant Voltage mode	Range	0.1~18V	0.1~120V
	Resolution	1mV	1mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant current mode	Range	0~6A	0~60A
	Resolution	b1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant resistance mode *1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate*4	0.0001~0.3A/μS	0.001~3A/μS
	Minimum rise time*5	≒10uS	≒10uS
Measurement range
Voltage readback value	Range	0~18V	0~120V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Power readback value	Range	300W
	Resolution	1mW
	Accuracy	±(0.1%+0.3%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒6.5A	≒65A
Specification
Short circuit	Current (CC)	≒6.5/6A	≒65/60A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒40mΩ	≒40mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2512H++
Rated value ( 0～40 ℃)	Input Voltage	0~800V
	Input Current	0~0.5A	0~5A
	InputPower	300W
	Minimum operating voltage	0.7V at 0.5A	7V at 5A
Constant Voltage mode	Range	0.1~80V	0.1~800V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~0.5A	0~5A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.1%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	2Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	300W
	Resolution	10mW
	Accuracy	(0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	20μS~3600S /Res:1μS
	Accuracy	2μS±100ppm
	Rise/Fall rate *4	0.0001~0.04A/μS	0.001~0.2A/μS
	Minimum rise time *5	≒20uS	≒20uS
Measurement range
Voltage readback value	Range	0~80V	0~800V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~0.5A	0~5A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	300W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒320W
Overcurrent protection		≒0.55A	≒5.5A
Specification
Short circuit	Current (CC)	≒0.55/0.5A	≒5.5/5A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒1.4Ω
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm325mm

Model		HDL2513A+
Rated value ( 0～40℃)	Input Voltage	0~150V
	Input Current	0~6A	0~60A
	Input Power	600W
	Minimum operating voltage	0.25V at 6A	2.5V at 60A
Constant Voltage mode	Range	0.1~18V	0.1~150V
	Resolution	1mV	1mV
	Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode	Range	0~6A	0~60A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode *3	Range	600W
	Resolution	1mW
	Accuracy	±(0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	100μS~3600S /Res:1μS
	Accuracy	10μS±100ppm
	Rise/Fall rate *4	0.001~0.15A/μS	0.01~1A/μS
	Minimum rise time *5	≒50uS	≒60uS
Measurement range
Voltage readback value	Range	0~18V	0~150V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	600W
	Resolution	1mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒620W
Overcurrent protection		≒6.6A	≒66A
Specification
Short circuit	Current (CC)	≒6.6/6A	≒66/60A
	Voltage (CV)	≒0V
	Resistance (CR)	≒30mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm455mm

Model		HDL2513B+
Rated value ( 0～40 ℃)	Input Voltage	0~500V
	Input Current	0~3A	0~30A
	Input Power	600W
	Minimum operating voltage	0.3V at 3A	3V at 30A
Constant Voltage mode	Range	0.1~50V	0.1~500V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant current mode	Range	0~3A	0~30A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.05%FS)
Constant resistance mode *1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.02%+0.08S*2	0.02%+0.0008S
Constant power mode *3	Range	600W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	100μS~3600S /Res:1μS
	Accuracy	10μS±100ppm
	Rise/Fall rate*4	0.001~0.05A/μS	0.01~0.5A/μS
	Minimum rise time*5	≒60uS	≒60uS
Measurement range
Voltage readback value	Range	0~50V	0~500V
	Resolution	1 mV	10mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~6A	0~60A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)
Power readback value	Range	600W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒650W
Overcurrent protection		≒3,3A	≒33A
Specification
Short circuit	Current (CC)	≒3.4/3A	≒34/30A
	Voltage (CV)	0V
	Resistance (CR)	≒100mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm455mm

Model		HDL2513C+
Rated value ( 0～40 ℃)	Input Voltage	0~120V
	Input Current	0~12A	0~120A
	Input Power	600W
	Minimum operating voltage	0.2V at 12A	2V at 120A
Constant Voltage mode	Range	0.1~18V	0.1~120V
	Resolution	1mV	1mV
	Accuracy	±(0.05%+0.02%FS)	±(0.05%+0.025%FS)
Constant current mode	Range	0~12A	0~120A
	Resolution	1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Constant resistancemode*1	Range	0.1Ω~10Ω	10Ω~7500Ω
	Resolution	16bit
	Accuracy	0.01%+0.08S*2	0.01%+0.0008S
Constant power mode*3	Range	600W
	Resolution	10mW
	Accuracy	±（0.2%+0.2%FS）
Dynamic mode
Dynamic mode	CC mode
	T1＆T2	100μS~3600S /Res:1μS
	Accuracy	10μS±100ppm
	Rise/Fall rate*4	0.001~0.2A/μS	0.01~1.6A/μS
	Minimum rise time*5	≒60uS	≒60uS
Measurement range
Voltage readback value	Range	0~18V	0~120V
	Resolution	0.1 mV	1mV
	Accuracy	±(0.025%+0.025%FS)	±(0.025%+0.025%FS)
Current readback value	Range	0~12A	0~120A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.05%FS)	±(0.05%+0.1%FS)
Power readback value	Range	600W
	Resolution	10mW
	Accuracy	±(0.2%+0.2%FS)
Protection range
Overpower protection		≒620W
Overcurrent protection		≒13A	≒130A
Specification
Short circuit	Current (CC)	≒13/12A	≒130/120A
	Voltage (CV)	0V	0V
	Resistance (CR)	≒15mΩ	≒15mΩ
Input terminal impedance	500KΩ
Interface	USB,RS232,LAN
Dimension	208.5mm84.5mm455mm

【Tip: up to 4 products can be compared】

Select	Series	Voltage	Current	Power	Resolution
	HDL2500+ Series DC Electronic Loads	0-800V	0-120A	300W/600W	0.1mV/1mV/0.1mA

Standard Accessories

Power Cord

The instrument comes standard with a power cord standardized for the user's country, or can be purchased separately.

Packing List

Includes: calibration certificate, packing list, warranty card and certificate of conformity.

HDL2500+ Series Quick Guide

2025-01-25

HDL2500+ SCPI

2025-01-25

HDL2500+ User's Manual V1.01

2025-05-20
