Features：

iPad/Windows Oscilloscope, Multi-touch Operation.

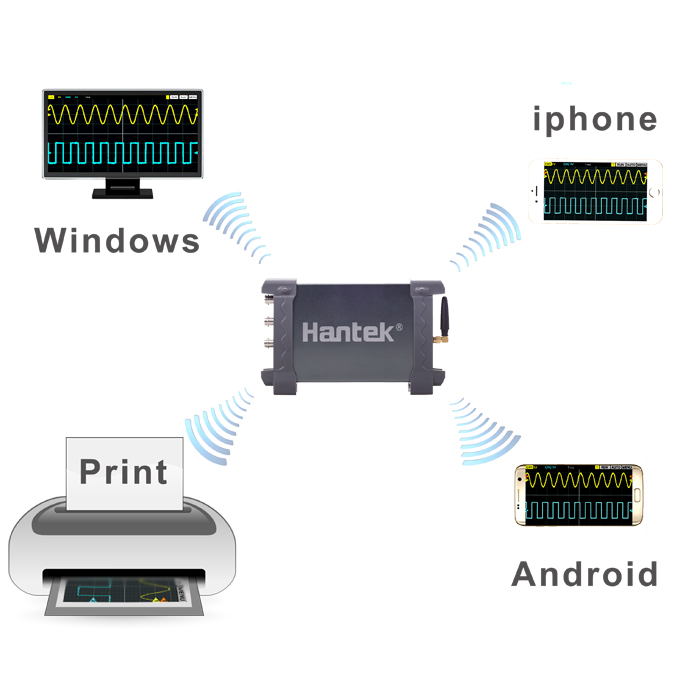

WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.
Build-in Lithium Battery , no need of External Power. Floating Measurement is available, safe and convenient.
70MHz Bandwidth, Real-time Sampling Rate 250MSa/s
Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.

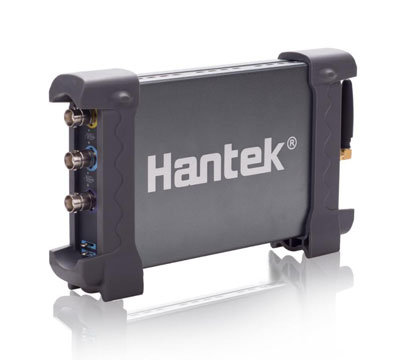

Good mechanical design. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved
Small size which is convenient for traveling.
Software Support:IOS,Android(Partial function),Win10,Win8, Win7, VISTA, etc.
20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
FFT spectrum analyzer

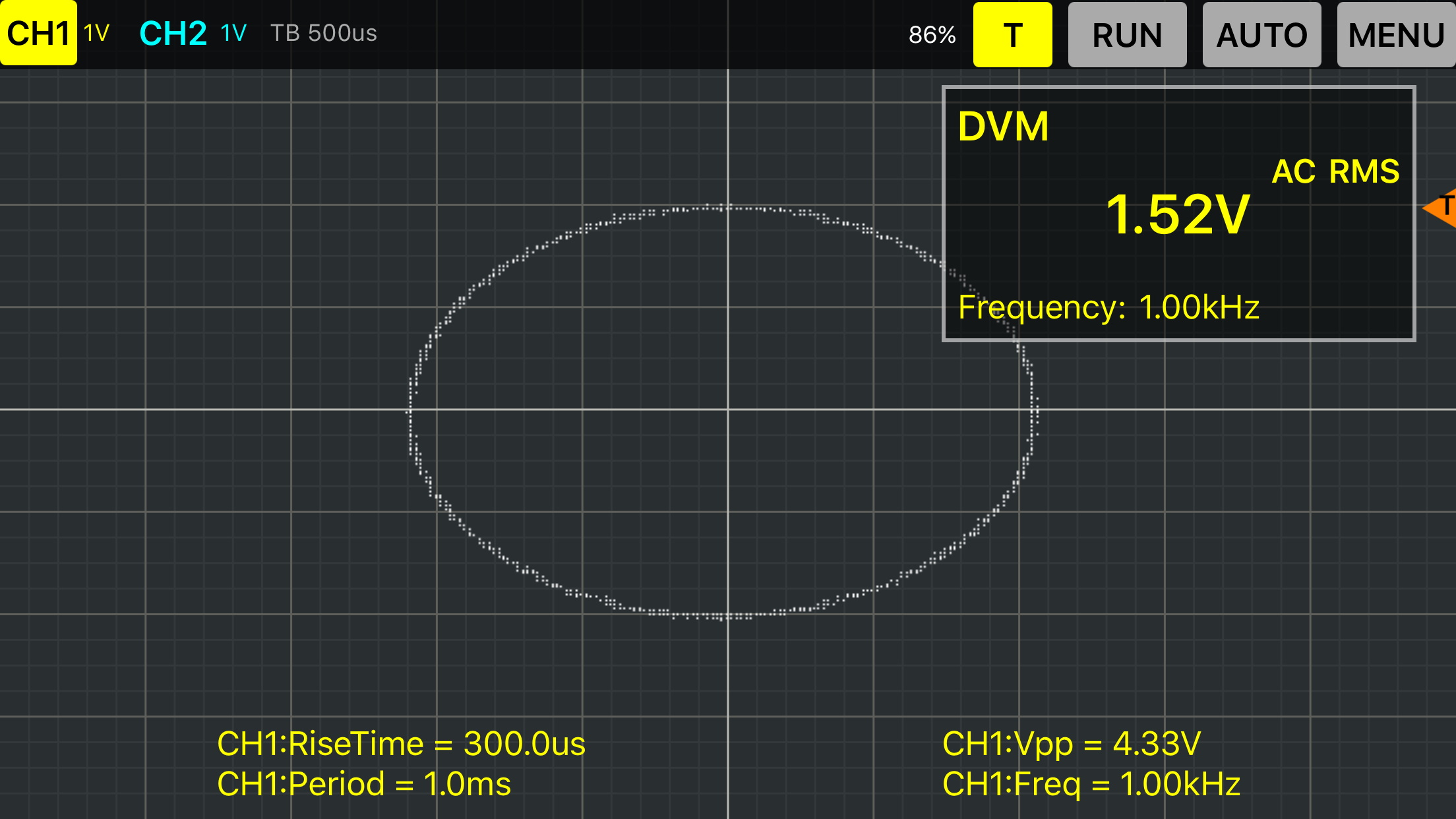

Waveform averaging, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
The waveform data can be output as CSV, BMP according to time and voltage.

Model	iDSO1070A
Bandwidth	70MHz
Channel	2 CH
Real-time Sampling Rate	250MSa/s (single channel), 125MSa/s (two channels)
Sampling Mode	Normal, Average
Average Sampling	Average waveform, times:2, 4, 8, 16, 32, 64, 128
Memory Depth	6K
Rise time	≤5ns
Time Base Precision	±50ppm
Time Base Range	5ns/div-500s/div (1-2-4 sequences)
Input Coupling	DC, AC, GND
Input Impedance	Resistance: 1MΩ; Capacitance: 25pF
Probe Attenuation Coefficient Setting	1×, 10×, 100×, 1000
Max Input Voltage	35Vpk(DC+peak)
Waveform Interpolation	Step, Linear, Sin(x)/x
Input Sensitivity	10mV/div～5V/div
Vertical Resolution	8Bit
Vertical Displacement Range	10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe;
	1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe
Position Range	±4division
Low Frequency Response	≤10Hz (at input BNC)
DC Gain Accuracy	±3%
Bandwidth Limit	20MHz
Trigger Mode	Auto, normal, single
Trigger Type	Edge
Trigger Precision	±4division
Trigger Range	±4V
Trigger Sensitivity	0.02 division
Trigger Source	CH1, CH2, EXT
Waveform Signal Process	+,-,x,÷,FFT, invert
Temperature	Operating: 0℃-40℃; Non-operating: -20℃-60℃
Humidity	Below 35℃, ≤90% relative humidity; 35℃-40℃, ≤60% relative humidity
Cursors Measurement	Cross, Trace, Horizontal, Vertical

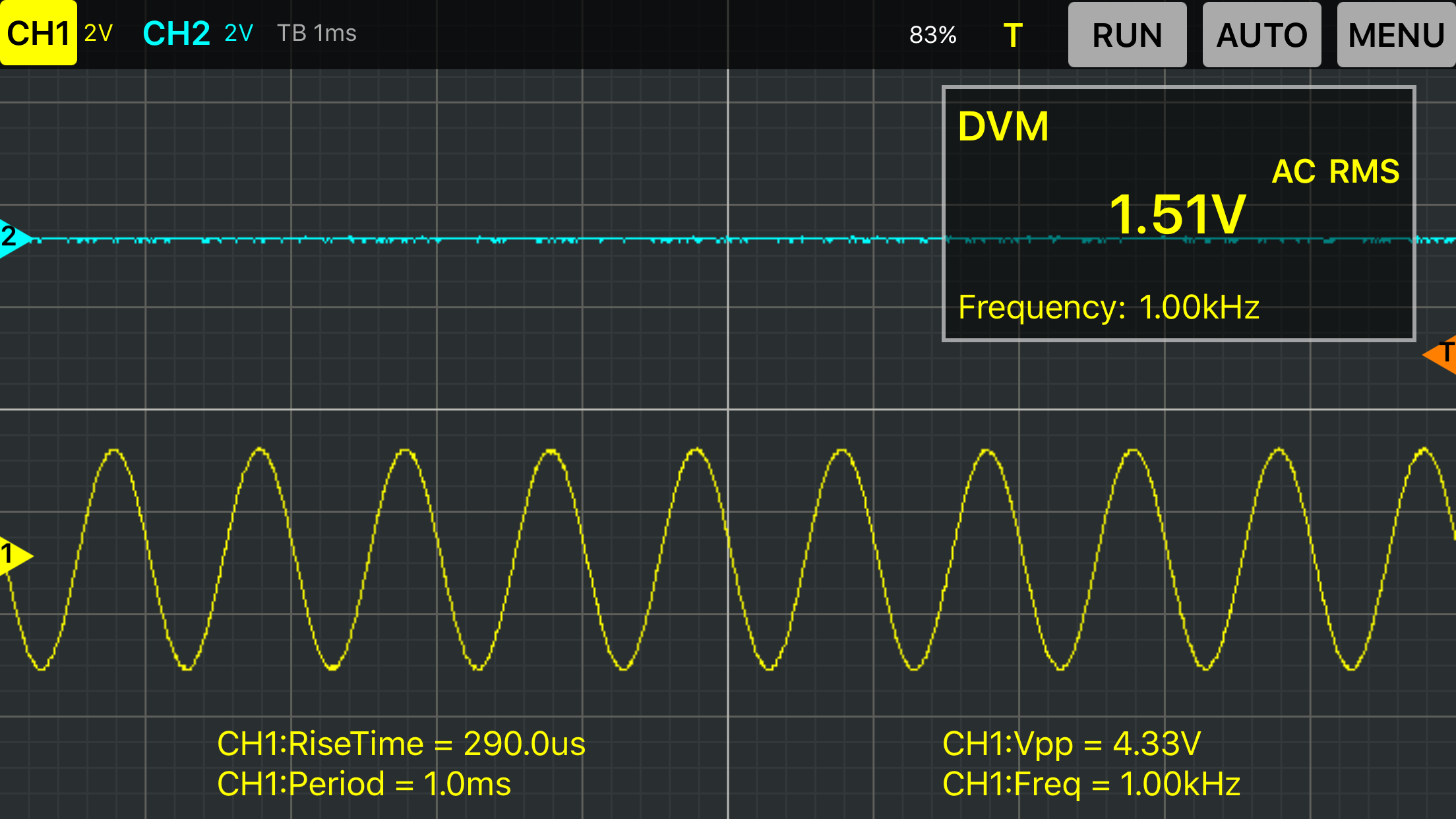

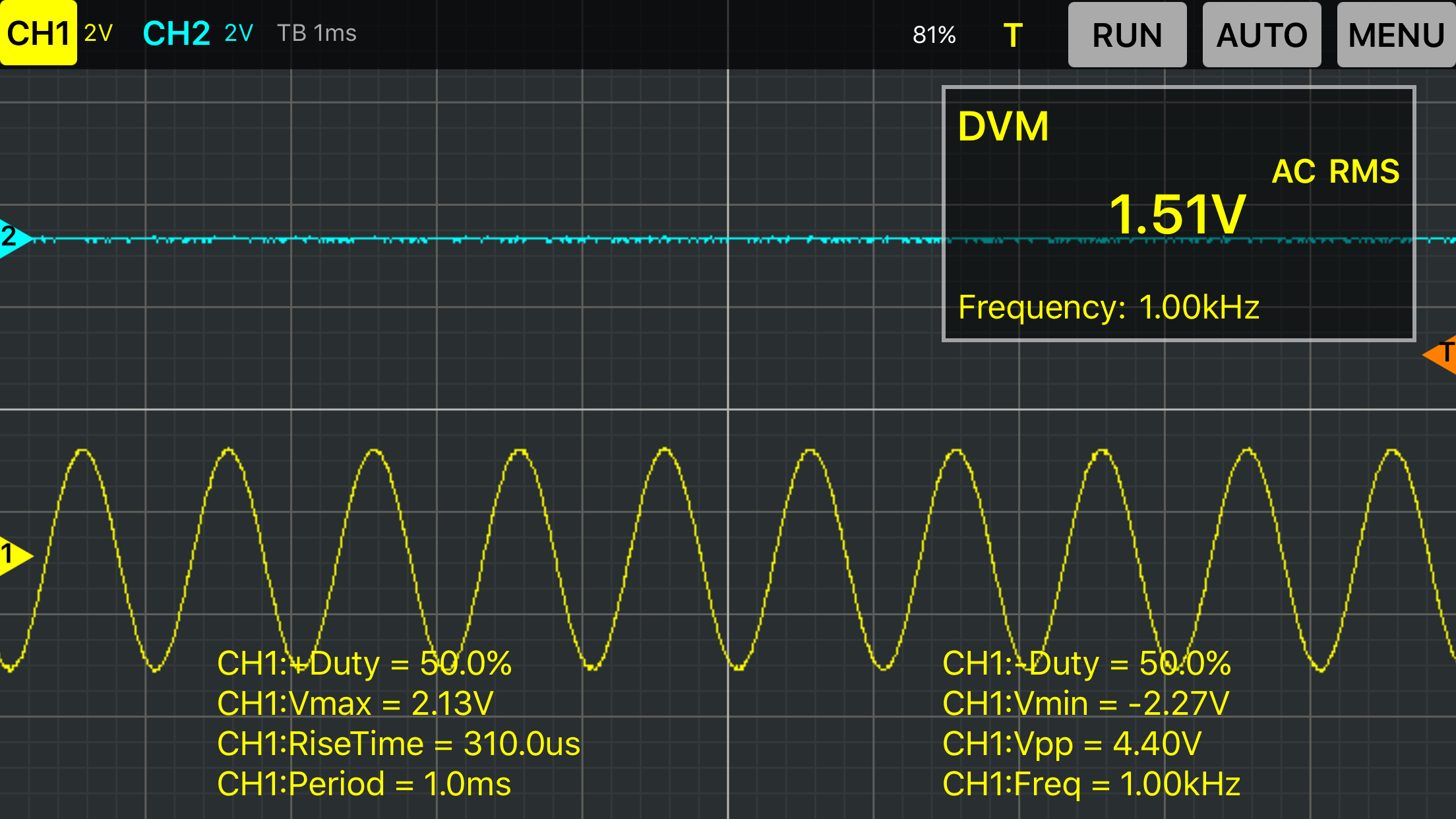

Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, +Duty Cycle,-Duty Cycle
Volume	190mm * 100mm * 25mm
Weight	0.5KG

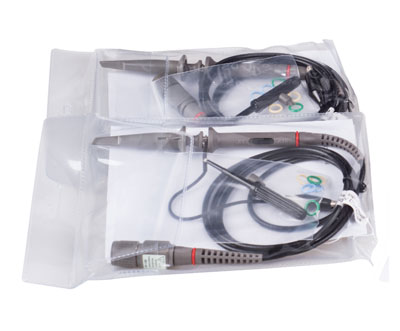

Accessory	2 passive probes -PP80

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
Hantek6004EU Series	70-250MHz	4CH	1GSa/s	Waveform capture rate is 400,000FPS 500uV-10V/DIV input sensitivity 128Mpts memory depth 80,000 section fragmentation
iDSO Series	70MHz	2CH	250MSa/s	iPad/Windows Oscilloscope, Multi-touch Operation. WIFI Communicati) Build-in Lithium Battery.Floating Measurementon (USB Communication small size convenient for travel
Hantek6004BD Series	70MHz~250MHz	4CH+1CH Arb. Generator	1GSa/s	USB2.0 Interface, plug and play device Support Win7/Win8/Win10 High cost performance Support USBXI, same interface, easy to operate
Hantek6004BC Series	70MHz~250MHz	4CH	1GSa/s	USB2.0 Interface, plug and play device Support Win7/Win8/Win10 High cost performance Support USBXI, same interface, easy to operate
PSO2020 USB Pen Storage Oscilloscope	20MHz	1 CH	96MSa/s	USB Power Supply 20 Types of Auto Measurement Pass/Fail Function Windows NT，Windows2000/XP WIN7/8 Possible to Connect to Laptop Directly
Hantek1008A	100K	8CH	2.4MSa/s	70 Kinds of Vehicle Diagnosis; USB 2.0 interface plug and play; 12Bits Vertical Resolution 8 CH Programmable Generator
DSO3000(A) Series (1GSa/s)	100~250MHz	4 CH	1GSa/s	128M Memory Depth Max. measurable signal up to 250MHz Similar interface with Bench DSO 8Bit vertical resolution Suppurt Win7/Win8
DSO3000 Series (200MSa/s)	60MHz	4/2CH+16LA	200MSa/s	16M Memory Depth DSO/LA/Spectrum Analysis/ AWG/ Frequency Counter; USB 2.0 interface plug and play; Similar interface with Bench DSO; Suppurt Win7/Win8/XP/VISTA.
Hantek6002BE Series	20MHz~200MHz	2CH	48MSa/s-250MSa/s	USB2.0 interface, no external power required, Support win7, win8 8Bit Vertical resolution, Standard USBXI (TM) interface Similar interface with Bench DSO easy to operate
Hantek6022BL	20MHz	2CH(Digital) 16CH(Logic)	48MSa/s	USB2.0 interface, no external power required, 10MHz Logic Analyzer Support Win7, Win8, 8Bit vertical resolution. Support USBXI, Similar interface with Bench DSO
DSO2000 Series	40-200MHz	2CH	100/150MS/s 200/250MS/s	USB2.0 interface, no external power required,Support Win7, Win8 8Bit vertical resolution Similar interface with Bench DSO 23 measurement functions PASS/FAIL Check with FFT.
DSO-220USB/DSO-2100USB	20MHz-100MHz	2	20MSa/s	The discontinued, don't support compare
