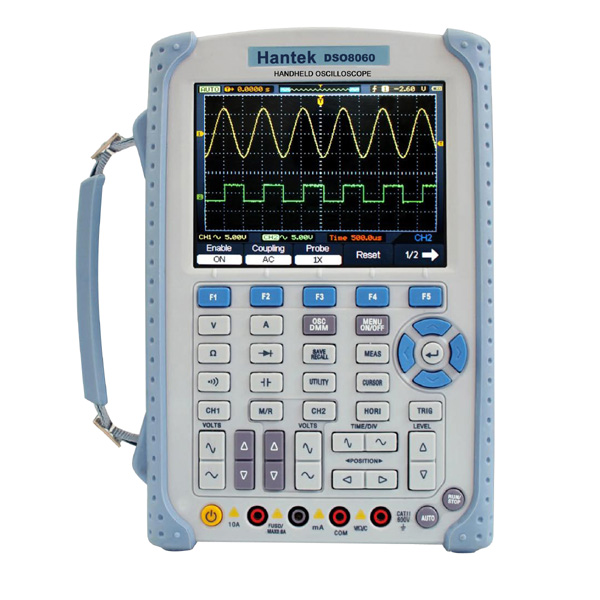

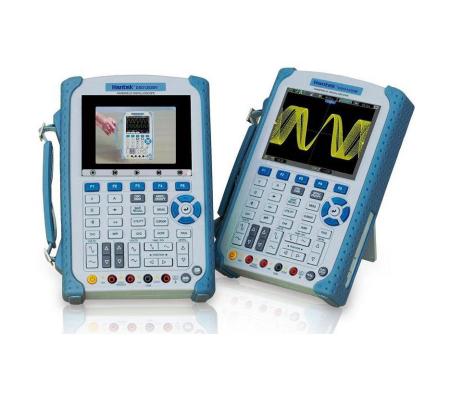

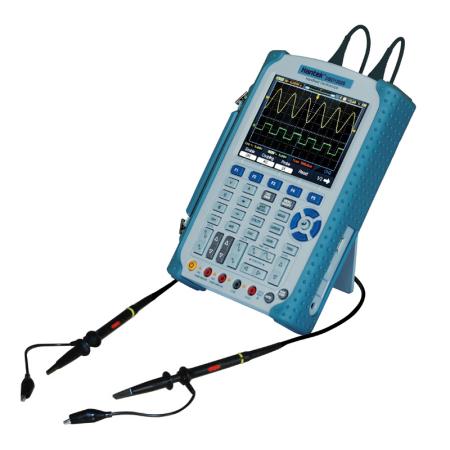

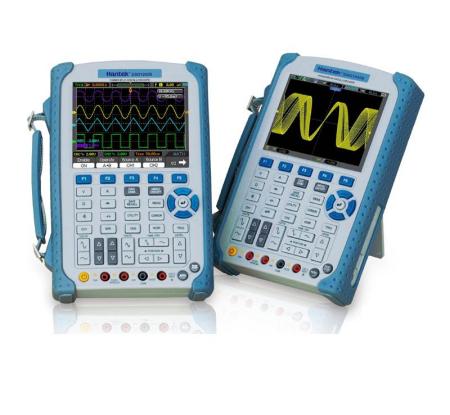

DSO8060 Five-in-one Handheld Oscilloscope. Oscilloscope/DMM/ Spectrum Analyzer/Frequency Counter/Arbtrary Waveform generator.
High Bandwidth 60MHz Oscilloscope, and 6000 COUNTS high precision DMM. Seperated GND Reference. Hardware Frequency Counter.
Arbitrary Waveform Generator: 25Mz arbitrary waveform output, (sine wave can deliver up to 75 Mz) 200 MSa/s DDS, 12 bits of vertical resolution.
FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check, easy to use on production line.
High refresh rate; High Real-time Sample Rate 150MSa/s-2GSa/s; 50GSa/s Equivalent-time Sample Rate.
Multiform trigger mode, 2 separate time base in ALT trigger mode, easy to see 2 signal with different frequency.
1000 waveforms save and record.
Excellent Industrial Design. Direct key for Each Channel, time base, Trigger and DMM, easy to operate.
Large 5.7 inch TFT Color LCD Display, LED backlight, Display clearly.
USB Host/Device 2.0 full-speed interface, support removeable disk, LAN Option; Easy to control by PC or long-distance.
Battery Power Operation (Installed) Industrial Design.
Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
Labview\VB\VC Second Design instance.

If connect to computer, it can be used as a virtual oscilloscope.

MATH, REF

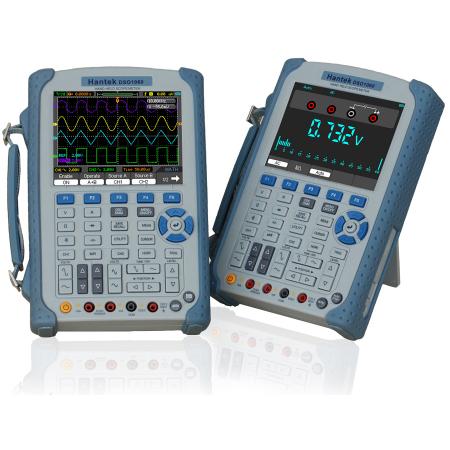

6000 COUNTS Digital Multimeter

The cursor function

22 kinds of waveform measurements

ALT MAG, easy to search for signal

X-Y mode

FFT Provides spectrum analysis function

ALT trigger mode, dual time base, easy to observe two signals of different frequency

Test signal more than 100MHz by ETS mode

Document management, convenient file storage and management

------------------Built-in help system--------------------------

Model	DSO8060
Bandwidth	60MHz
Channel	2
Real-Sample Rate	250MSa/s
Equivalent Sample Rate	50GSa/s
Record Length	32K
Rish time	≤5.8ns
Timebase Accuracy	±50ppm
Time Base Range	5ns/div-1000s/div
Video Help	--
SD Card	--
Input Impandance	1MΩ ΙΙ 15pF
VOLTS/DIV Range	10mV/div～5V/div
A/D Converter	8bit
Position Range	±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div)
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Alternative
Trigger Source	CH1, CH2
Math	+,-,x,÷,FFT, Invert
Cursor Measurement	Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot
Waveform Frequency	DC~25MHz
DAC Clock	2K~200MHz adjustable
Frequency Resolution	0.10%
Channel count	1CH waveform output
Waveform Depth	4KSa
Vertical Resolution	12 bit
Frequency Stability	<30ppm
Waveform Range	±3.5V Max.
Output Impedance	50 Ω
Output Current	50mA Ipeak=50mA
System BW	25M
Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)
Frequency Range	DC~60MHz
Input Range	400mVpp~18Vpp
Coupling Mode	DC
Frequency Measurement Accuracy	±Time Base Error ±1 Count
Input Impedance	> 100KΩ
DMM Max. Resolution	6,000 Counts
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC: 600V, DC: 800V
Max. Input Current	AC:10A , DC: 10A
Max. Input Impandance	10MΩ
Display	5.7" TFT Display, 320*240 dots
Size	245mm x 163mm x 52mm
Weight	1.3KG(Without Package)
Standard Probe	PP80x2

DMM Mode
Max. Resolution	6000 Counts
DMM Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC:600V, DC: 800V
Max. Input Current	AC: 10A, DC:10A
Input Impedance	10MΩ
DMM TrendPlot	1.2M Point
Range	Resolution	Accuracy	Resolution
DC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
AC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
Resistance	600Ω	±1%±3 digit	0.1Ω
	6.000KΩ		1Ω
	60.00KΩ		10Ω
	600.0KΩ		1KΩ
	6.000MΩ		10KΩ
	60.00MΩ	±1%±5 digit	100KΩ
Capacitance	40.00nF	±2%±5 digit	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	400.0uF		100nF
	Attention: the smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V
ON-OFF test	<10Ω
