Model
|
DSO3064
|
|
Vertical System
|
|
Analog Channels
|
4
|
|
Bandwidth
|
60MHz(-3dB)
|
|
Rise Time
|
5.8ns
|
|
Input Impedance
|
Resistance: 1MΩ ; Capacitance: 25 pF
|
|
Input Sensitivity
|
10mV/div to 5V/div
|
|
Input Coupling
|
AC/DC/GND
|
|
Vertical Resolution
|
8 bits
|
|
Memory Depth
|
10K-16M/CH
|
|
Maximum Input
|
400V (DC+AC Peak)
|
|
Horizontal System
|
|
Real-Time Sampling Rate
|
200MS/s
|
|
Time Base Range
|
5ns/div to 1000s/div(1-2-5 sequences)
|
|
Time Base Precision
|
±50ppm
|
|
Trigger System
|
|
Source
|
CH1, CH2,CH3,CH4,EXT
|
|
Mode
|
Edge,Pulse,Viedo,Alternative
|
|
Voltage Measurement
|
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
|
|
Cursors Measurement
|
Horizontal ,Vertical, Track, Auto Measure Modes
|
|
Waveform Signal Process
|
+,- , x,÷, FFT, Invert
|
|
Voltage Range
|
10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe;
1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe;
100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
|
|
Current Range
|
CC65(20A),CC65(60A),CC650,CC1100
|
|
FFT
|
Rectangular,Hanning,Hamming,Blackman Window
|
|
Math
|
Adition,subtraction,multiplication,division
|
|
Gennral Feature
|
|
Interface
|
USB 2.0(Lan Optional)
|
|
Power Source
|
8--36V Wide range of input voltage
|
|
Volume
|
490 x 165 x 410 (mm)
|
|
Weight
|
7.5 Kg
|
Packing Case
|
Aluminum case
|

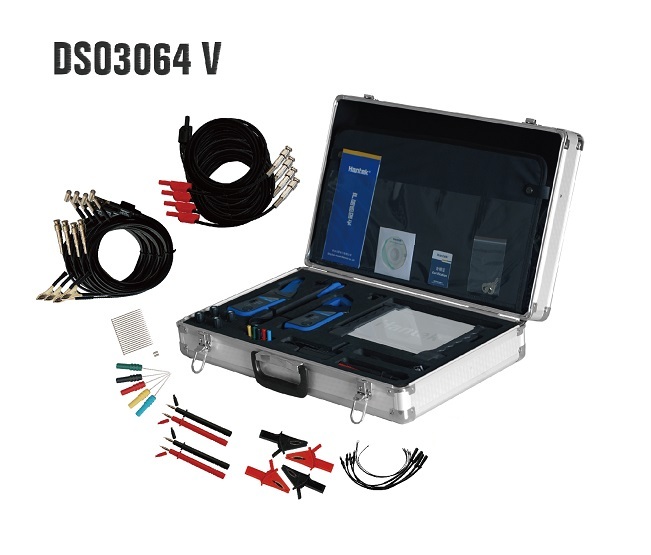

Auto Test Cable (HT30A)
|
4
|
Auto High-Pressure Ignition Probe (HT25)
|
4
|
20:1 Attenuator (HT201)
|
4
|
Large Dolphin/Gator Clip (HT18A)
|
4
|
Multimeter Probe (HT19)
|
4
|
Acupuncture Probe Set (HT307)
|
1
|
Dolphin/Gator Clip Cable (HT324)
|
2
|
Break Out Leads (HT301)
|
1
|
Coil-on-Plug Extension Cord (with earth cord) (HT308)
|
4
|
Auto Power Adapter (HT310)
|
1
|
CC65 Current Clamp
|
--
|
CC650 Current Clamp
|
--
|
