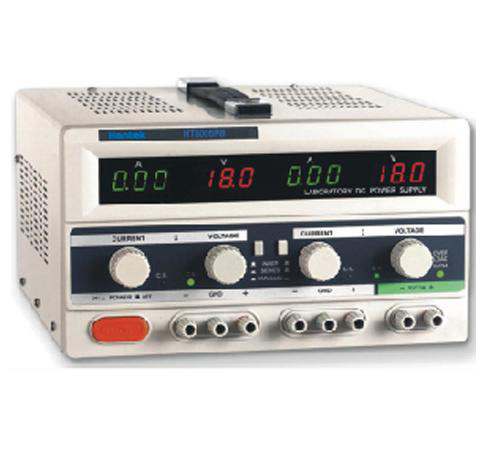

HT3000PB Series - Hantek Electronic & Your testing solution provider

OneDrive Download

Model	HT3003PB	HT3005PB
Output Voltage	0-30Vx2, 5V	0-30V, 5V
Output Current	0-3Ax2, 3A	0-5Ax2, 3A
Input Voltage	220V±10%, 50Hz±2Hz(current <5A)
Source effect	CV≤1x10^-4+5mV, CC≤1x10^-4+6mA,
Loard effect	CV≤1x10^-4+2mV (current≤5A);
	CV≤1x10^-4+5mV (current>5A);
	CC≤1x10^-4+6mA;
Ripple & Noise	CV≤1mV(rms); CV≤20mV_P-P;
	CC≤3mA(rms); CC≤50mA_P-P;
Protection	Current Limiting
Voltage Accuracy	Reading±1% ±2 digits
Current Accuracy	Reading±2% ±2 digits
Environment	Ambient Temperature:0-40℃; Humidity:<90%
