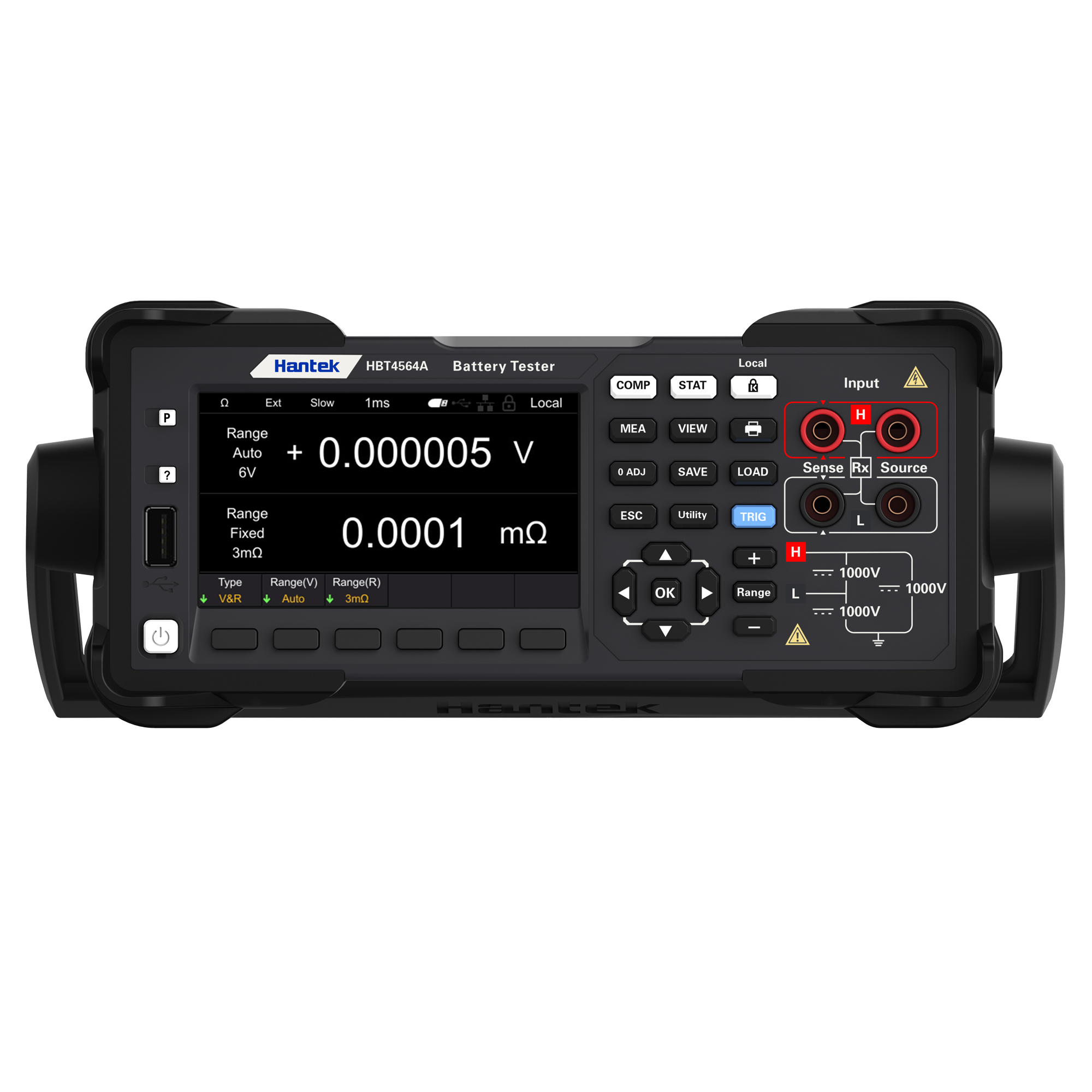

6 1/2 bit high-voltage battery internal resistance tester HBT4000 series

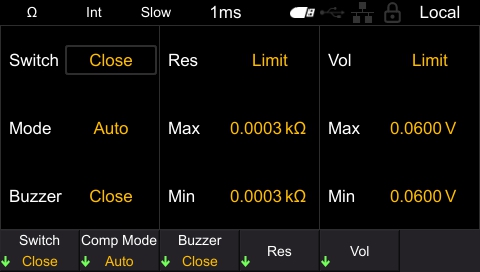

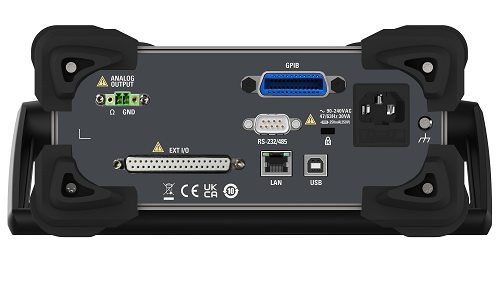

The HBT4000 series six and a half digit high-resolution internal resistance tester is a battery internal resistance tester with high precision and fast measurement characteristics, with a measurement voltage range of up to 2100V. Using the AC four terminal testing method to more accurately test the internal resistance and voltage of the battery; 0.1μΩ Resistance resolution, 10μV voltage resolution, with high precision, high speed, suitable for various battery types; Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface, suitable for more testing scenarios; Built in comparator function to automatically determine whether battery parameters meet standards; Easy to operate, precise and fast, stable and reliable, this battery internal resistance tester will be your best choice.
