HDP10000 Series

Overview
Parameters
Comparison
Accessories
Download
Probe
Video

Four digit display voltage and current, resolution up to 10mV/1mA;
Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;
10 groups of data storage/retrieval functions;
AC input voltage 230/115V switch, universal;
Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;
Over voltage, over current, overload, overheating, short circuit protection functions;
Low noise temperature control fan, quiet and durable;
0~160V/0~8A output is stable and pure; On/Off output control, one-key panel lock function to prevent misoperation;
Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;
Two-stage adjustment topology, no impact on the load when the power is turned on;
Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.

Small size, high power, full protection

Ultra-thin body, abundant power, stable performance. Over voltage, over current, overload, overheating, short circuit protection functions. Constant voltage (CV)/ constant current (CC) automatic switch. It can be used as constant voltage source or constant current source.

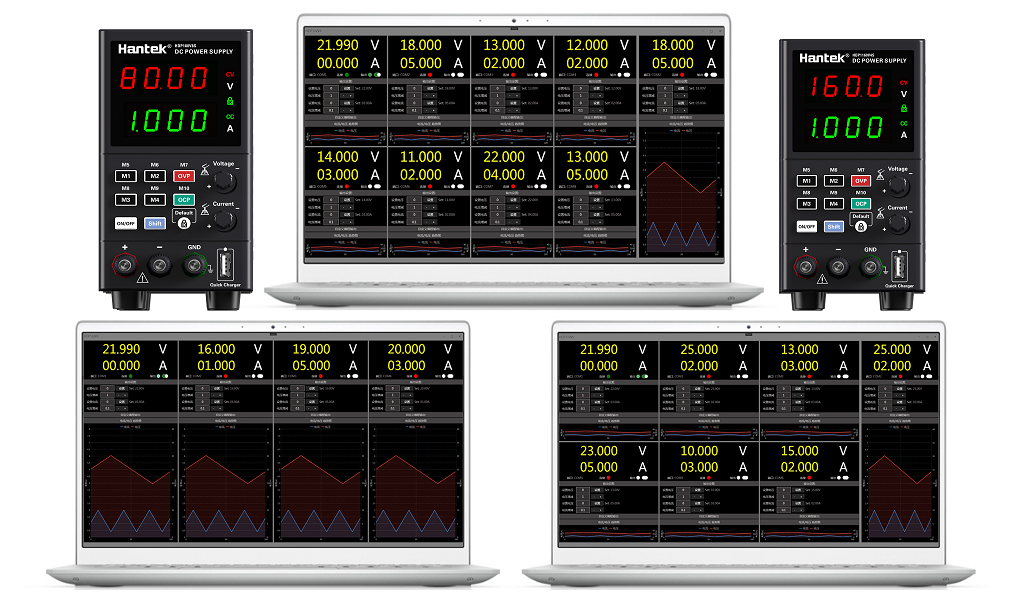

Support computer control, multi-machine linkage

Fully isolated serial port, software support multiple power supply control at the same time, Easy to set up measurement and control or aging system; 10 groups of data storage/retrieval functions.

Intelligent cooling system

Low noise temperature control fan, quiet and durable. Reasonable cooling air duct design, all-weather full load work without burning machine, more lasting work. 230V/115V switchable input, universal.

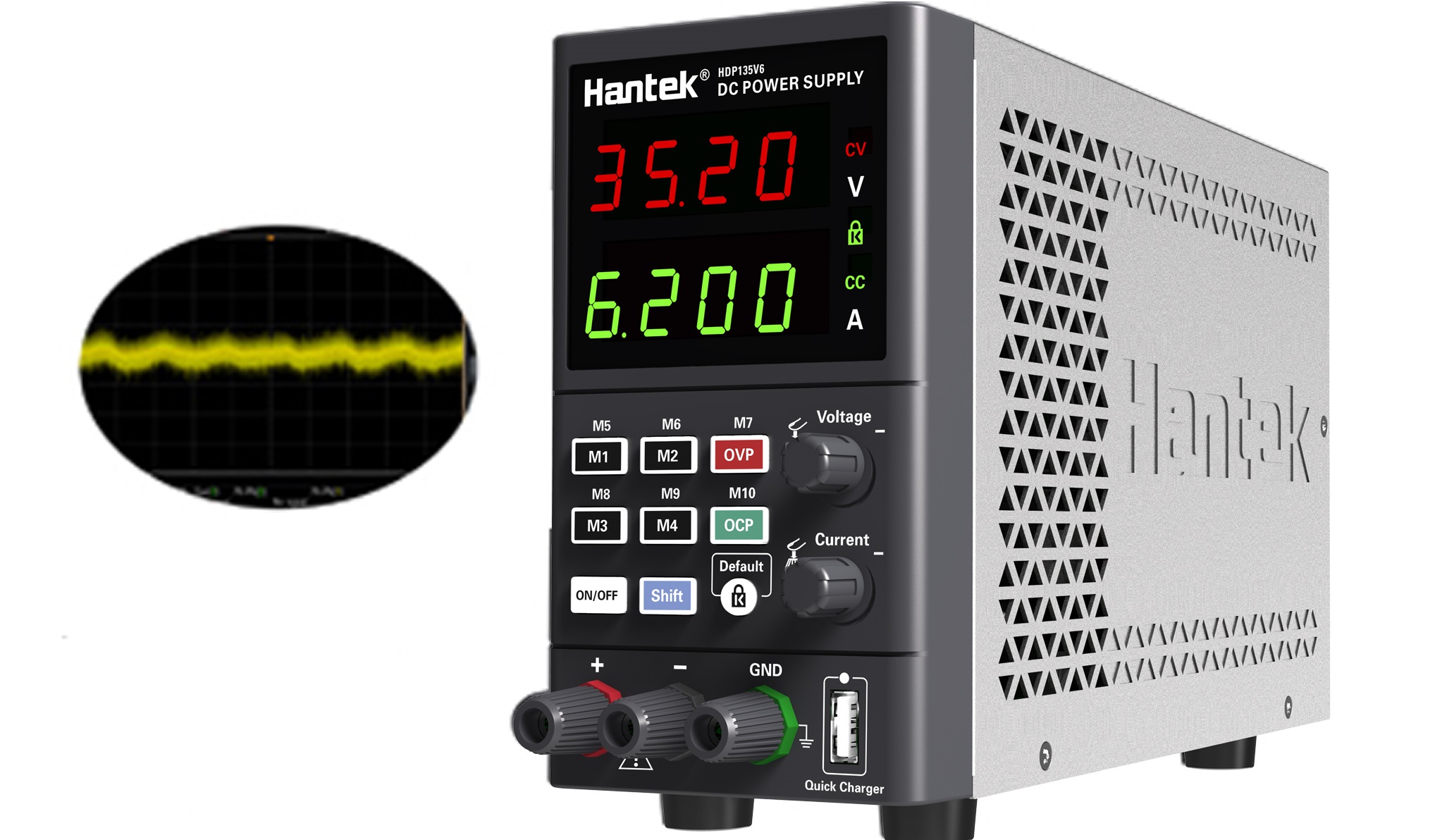

Low ripple, low noise

10mVrms Low ripple low noise.
10mV/1mA reading resolution, high voltage/current output accuracy.

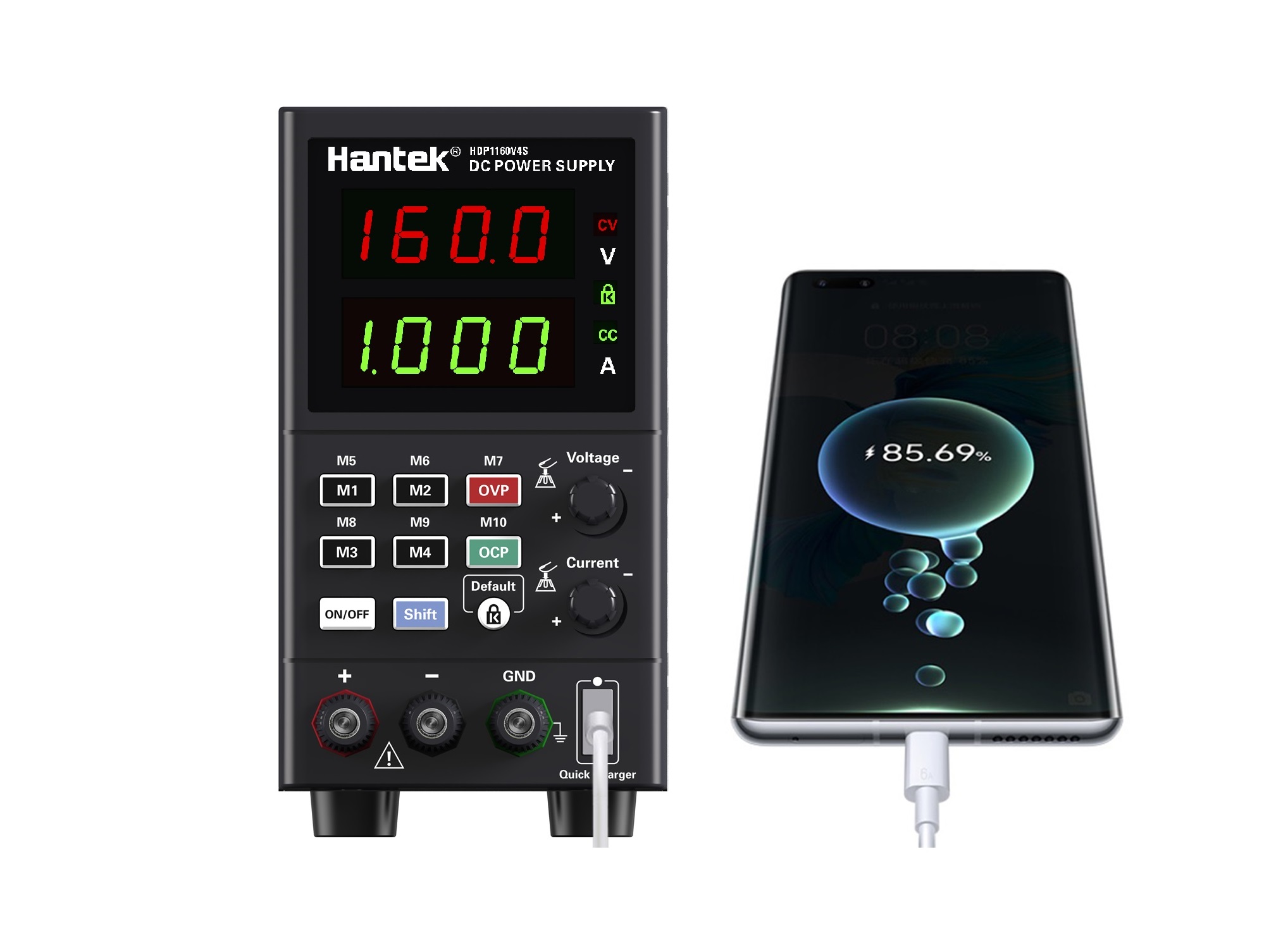

USB quick charging function

Automatic recognition of fast charging protocol and adjustment of output voltage and current. 5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power. DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick.

Output rating	Model	Output voltage	Output current	RS232	The AC input
180W	HDP1160V4S	0~160V	0~4A	√	120 Vac ± 10% 220 Vac ± 10%
180W	HDP180V8S	0~80V	0~8A	√	120 Vac ± 10% 220 Vac ± 10%

Output rating	Model	Output voltage	Output current	RS232	The AC input
210W	HDP135V6	0~35V	0~6A	-	120 Vac ± 10% 220 Vac ± 10%
210W	HDP135V6A	0~35V	0~6A	-	220 Vac ± 10%
210W	HDP135V6B	0~35V	0~6A	-	120 Vac ± 10%
210W	HDP135V6S	0~35V	0~6A	√	120 Vac ± 10% 220 Vac ± 10%

Voltage
Load regulation	≤0.1% + 5mV
Linear regulation	≤0.01% + 5mV
Setting resolution	HDP135V6	10mV
	HDP135V6A	10mV
	HDP135V6B	10mV
	HDP135V6S	10mV
	HDP180V8S	10mV
	HDP1160V4S	0~100V	10mV
		100~160V	100mV
Setting precision	≤0.1% + 1 digits
Read back resolution	HDP135V6	10mV
	HDP135V6A	10mV
	HDP135V6B	10mV
	HDP135V6S	10mV
	HDP180V8S	10mV
	HDP1160V4S	0~100V	10mV
		100~160V	100mV
Read back accuracy	≤0.1% + 1 digits
Ripple	HDP135V6	10mVrms
	HDP135V6A	10mVrms
	HDP135V6B	10mVrms
	HDP135V6S	10mVrms
	HDP180V8S	10mVrms
	HDP1160V4S	15mVrms
Overvoltage protection(OVP)	HDP135V6	0 ~ 37V ± 0.2%FS
	HDP135V6A	0 ~ 37V ± 0.2%FS
	HDP135V6B	0 ~ 37V ± 0.2%FS
	HDP135V6S	0 ~ 37V ± 0.2%FS
	HDP180V8S	0 ~ 88V ± 0.2%FS
	HDP1160V4S	0 ~ 176V ± 0.2%FS
Maximum voltage	HDP135V6	35.2V ± 0.2%
	HDP135V6A	35.2V ± 0.2%
	HDP135V6B	35.2V ± 0.2%
	HDP135V6S	35.2V ± 0.2%
	HDP180V8S	81V± 0.2%
	HDP1160V4S	162V± 0.2%
Current
Load regulation	≤0.2% + 3mA
Linear regulation	≤0.2% + 3mA
Setting resolution	1mA
Setting precision	≤0.2% + 3mA
Read back resolution	1mA
Read back accuracy	≤0.2% + 3 digits
Ripple	HDP135V6	5mArms
	HDP135V6A	5mArms
	HDP135V6B	5mArms
	HDP135V6S	5mArms
	HDP180V8S	8mArms
	HDP1160V4S	10mArms
Overcurrent protection (OCP)	HDP135V6	0 ~ 7A ± 0.2%FS
	HDP135V6A	0 ~ 7A ± 0.2%FS
	HDP135V6B	0 ~ 7A ± 0.2%FS
	HDP135V6S	0 ~ 7A ± 0.2%FS
	HDP180V8S	0 ~ 8.8A ± 0.2%FS
	HDP1160V4S	0 ~ 4.4A ± 0.2%FS
Maximum current	HDP135V6S	6.2A ± 0.2%
	HDP180V8S	8.2A ± 0.2%
	HDP1160V4S	4.1A ± 0.2%
Quick charge
Output voltage range	5V ~ 12V
Output power	Maximum 18 W
Supported quick charging protocol	DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC
General features
Remote interface	RS232 (Female connector)
	Baud rate: 2400
	Data bit: 8
	Stop bit: 1
	None Parity check
	Only the S series has an RS232 interface
AC input	HDP135V6	115 Vac ± 10%，230 Vac ± 10%，50/60Hz
	HDP135V6A	230 Vac ± 10%，50/60Hz
	HDP135V6B	115 Vac ± 10%，50/60Hz
	HDP135V6S	115 Vac ± 10%，230 Vac ± 10%，50/60Hz
	HDP180V8S	115 Vac ± 10%，230 Vac ± 10%，50/60Hz
	HDP1160V4S	115 Vac ± 10%，230 Vac ± 10%，50/60Hz
Rated output power	HDP135V6	210W
	HDP135V6A	210W
	HDP135V6B	210W
	HDP135V6S	210W
	HDP180V8S	180W
	HDP1160V4S	180W
Working conditions	Temperature -10 ° C to 40 ° C, relative humidity ≤80%
Storage conditions	Temperature -20 ° C to 60 ° C, relative humidity ≤80%
Cooling	Air cooling
Weight	HDP135V6	1.30Kg
	HDP135V6A	1.30Kg
	HDP135V6B	1.30Kg
	HDP135V6S	1.30Kg
	HDP180V8S	1.50Kg
	HDP1160V4S	1.50Kg
Dimensions	85×160×260(mm)

HDP10000 series user manual

2022-10-25

HDP10000 SDK

2022-10-25

HDP135V6S Software

2022-11-09

HDP180V8S Software

2022-11-09

HDP1160V4S Software

2022-11-09

Hantek Catalogue 2023

2023-09-15
