Features:

HDG6000B series integrates multi-function like arbitrary waveform generator, pulse generator, 16-bit word generator, 7-digit cymometer and function generator; It can generate and output stable, accurate and low distortion signals; Built-in over 150 type arbitrary waveforms, which is easy to simulate various signals; Its large screen, user-friendly interface design and keyboard layout are convenient to use; Rich standard configuration interfaces easily achieve remote control of the instrument.

* Output frequency range: 1uHz ~ 200MHz / 160MHz / 110MHz / 80MHz;

* Up to 1.25GSa/s sampling rate, 16bits vertical resolution to ensure the accuracy of the output waveform;

* Up to 64M memory depth, ensuring better waveform detail creation;

* Large and clear display screen (7.0-inch LCD color display, resolution up to 800x640), user interface is clear and intuitive;

* A rich set of modulation functions, support AM, FM, PM, 2ASK, 2FSK, 2PSK and PWM etc. ;

* 1uHz frequency resolution; minimum 2mv output amplitude;

* Built-in 7-digit high-resolution 200MHz cymometer; with optional higher performance cymometer;

* Standard communication interface: HDG6000B series: USB Host, USB Device;

* Built-in more than 150 arbitrary waveforms, including exponential rise, exponential drop, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc.

Up to 200MHz frequency signal output

16-bit word generator function

Up to 7 digits of cymometer function

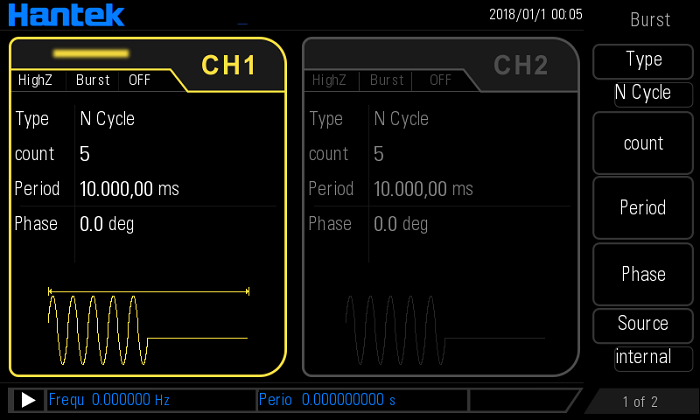

Advanced burst function

Standard rich sweep function

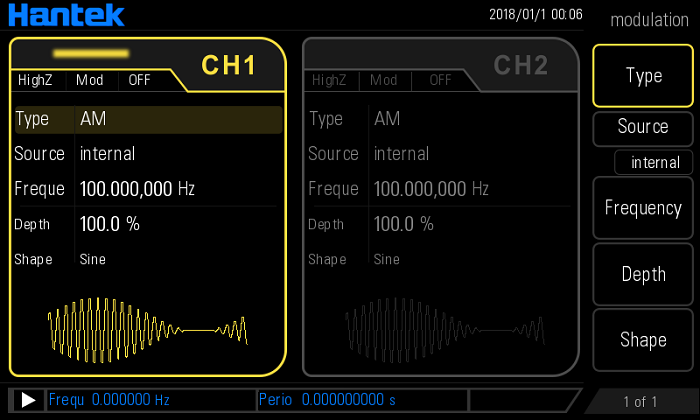

Analog digital modulation type: AM, FM, PM, 2FSK, etc.

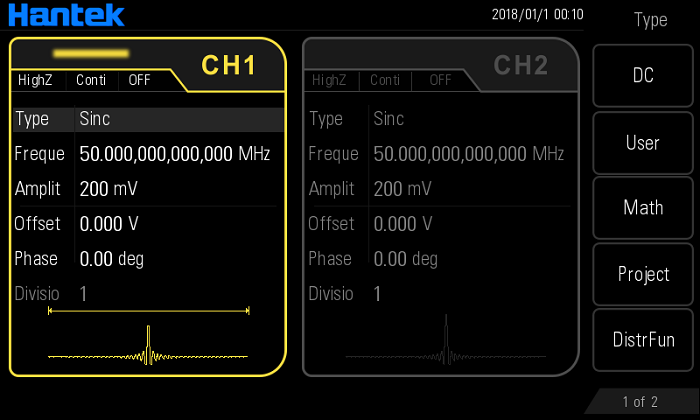

More than 150 kinds built-in arbitrary waveforms

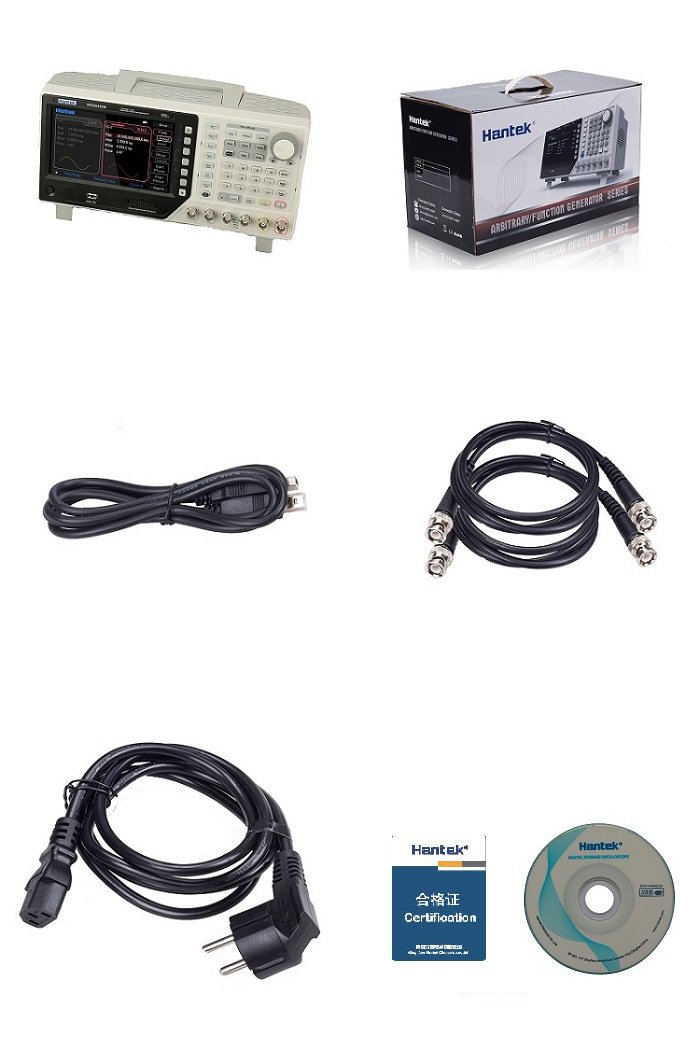

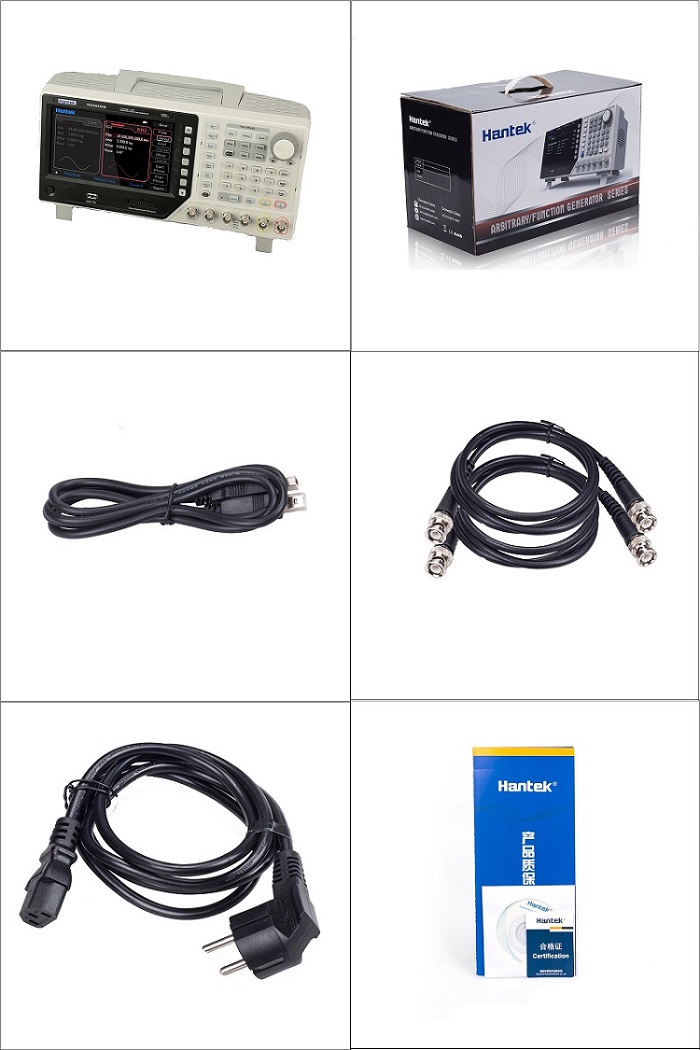

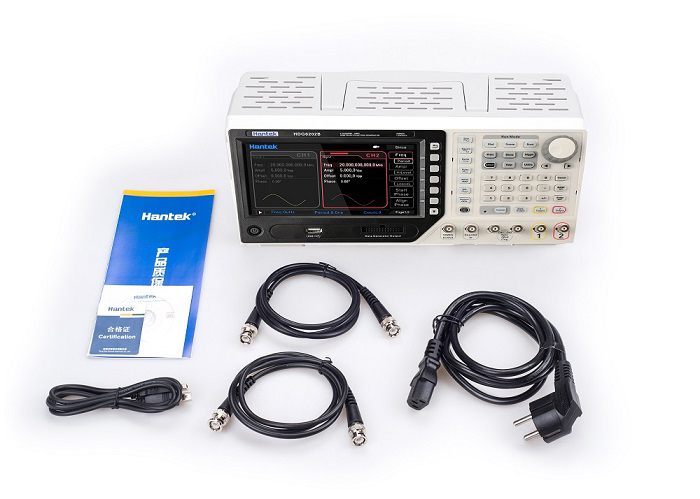

Accessory
