Feature
-
Standard equipped over 80 types of
automotive measurement function；

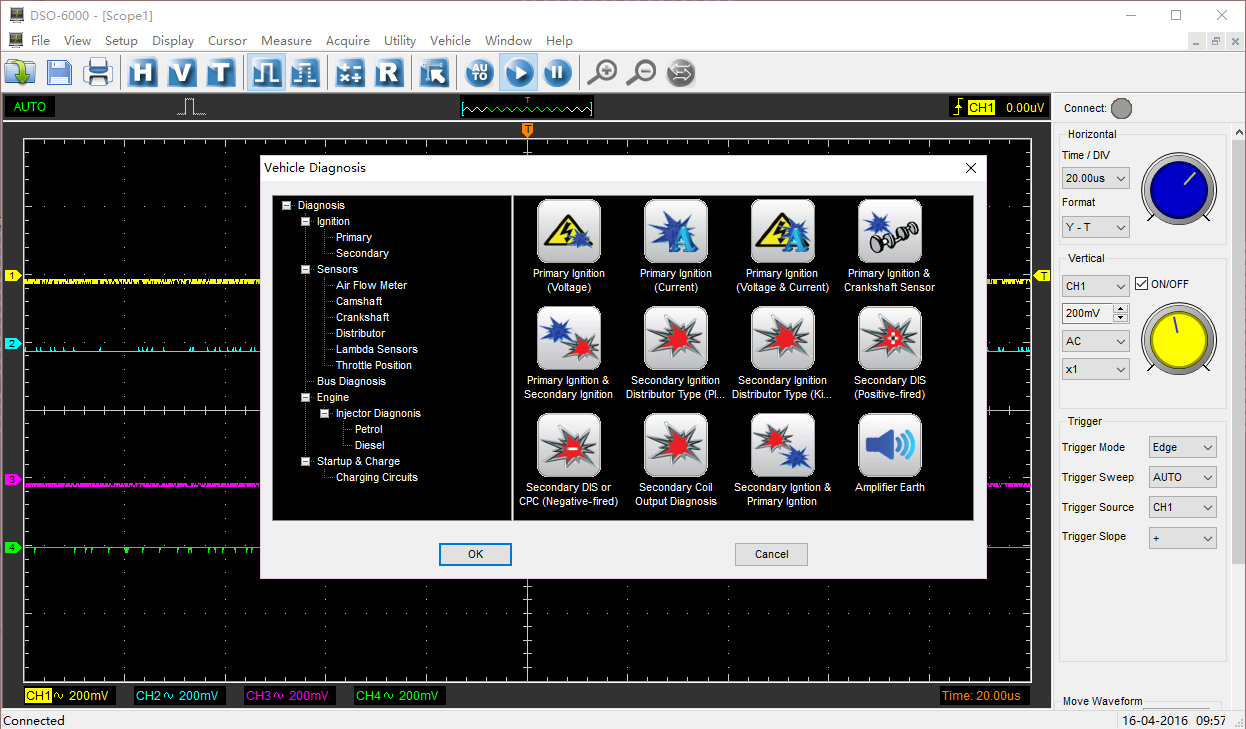

First
Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve
vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

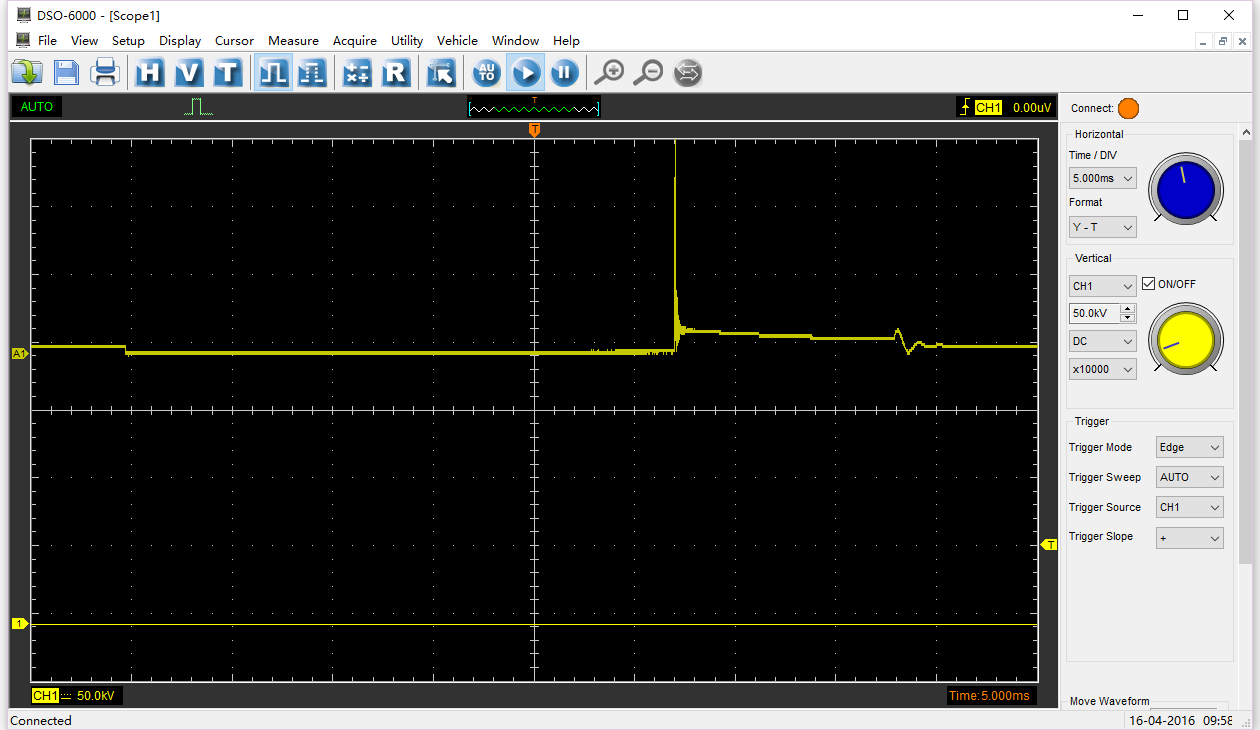

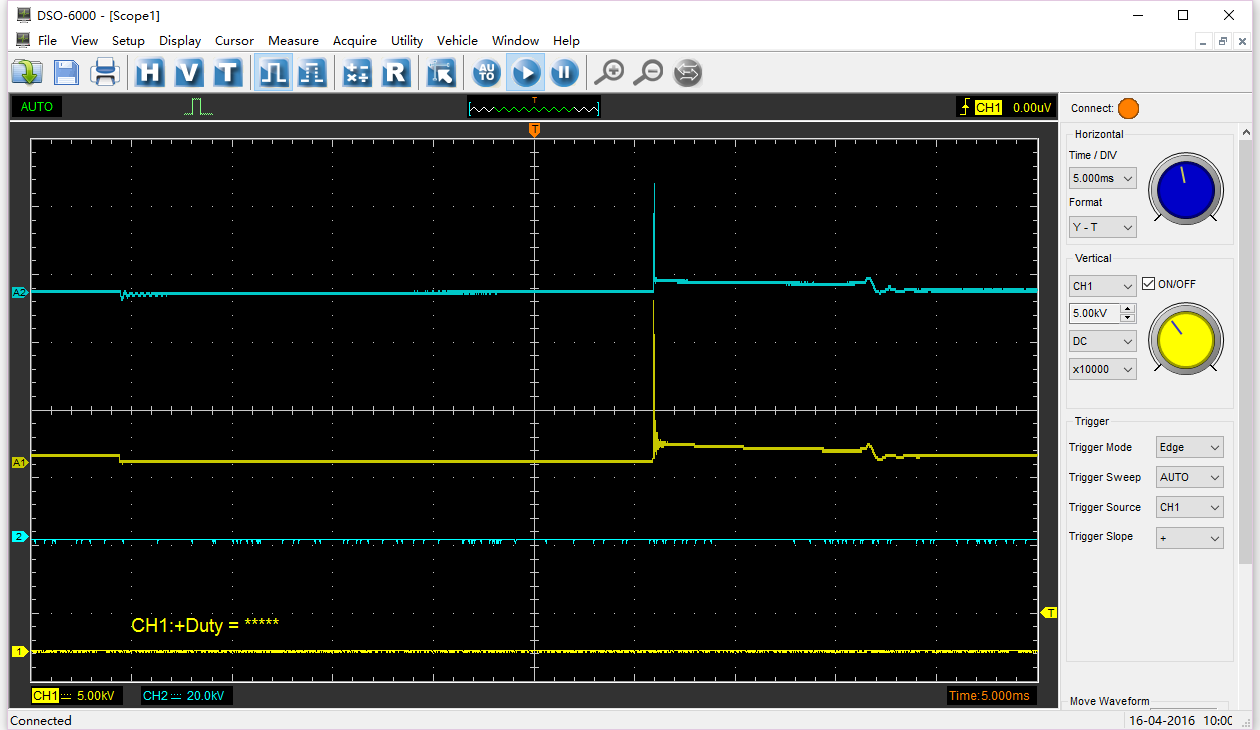

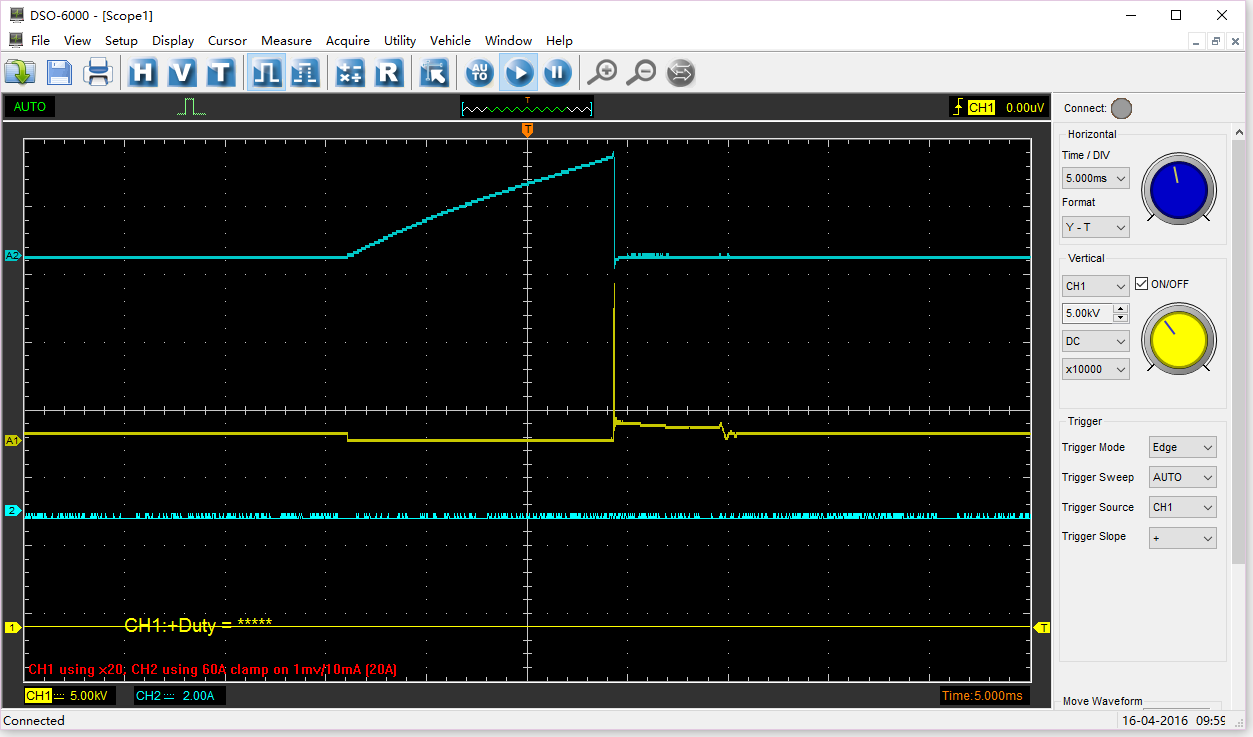

Ignition:
primary and secondary

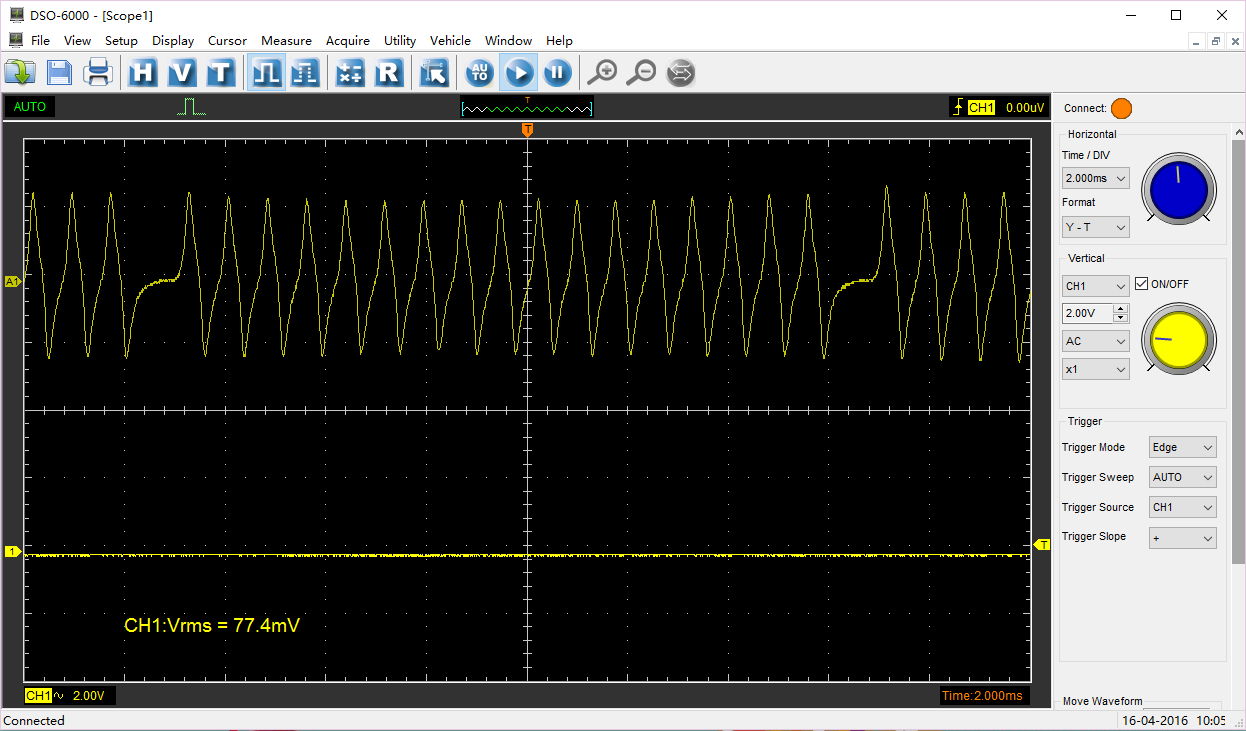

Sensor:
Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle
position
Bus
Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time
acquisition, LIN bus
Performer:
Petrol/Diesel
Starter
and charging circuits
-
Fit for the portable computers,
table PC, and suitable for wild mobile use and business trip use. Support WIN10/
WIN8/WIN7 etc.
-
USB 2.0 interface plug and play,
and no need extra power supply;
-

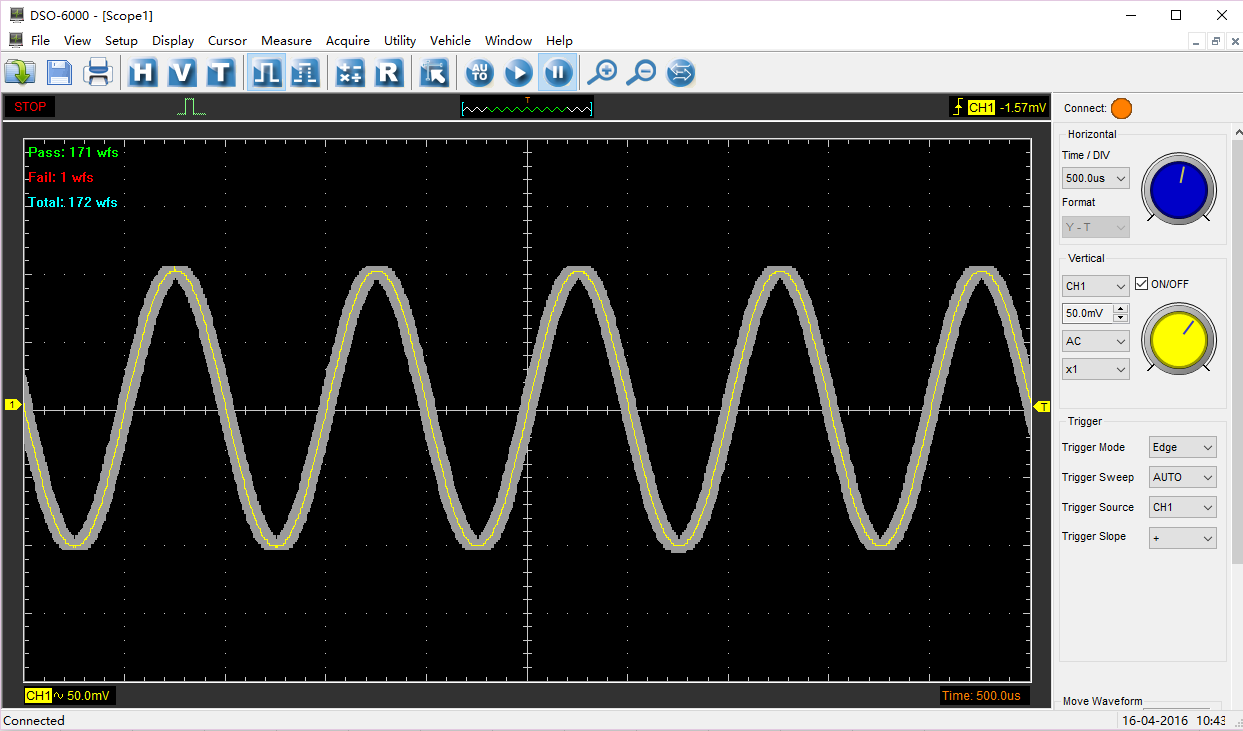

Great function, More than 20 kinds
of automatic measurement function, PASS/FAIL Check function. Resourceful
trigger function, dynamic cursor tracking, waveform record and replay function.
-
Good mechanical design with small
size which is easy for carrying. The outer case is made by the same material
with iPad - Anodised aluminium. It has great heat resistance and abrasive
resistance with beautiful appearance. The hardness of aluminium alloy surface
is greatly improved.
-

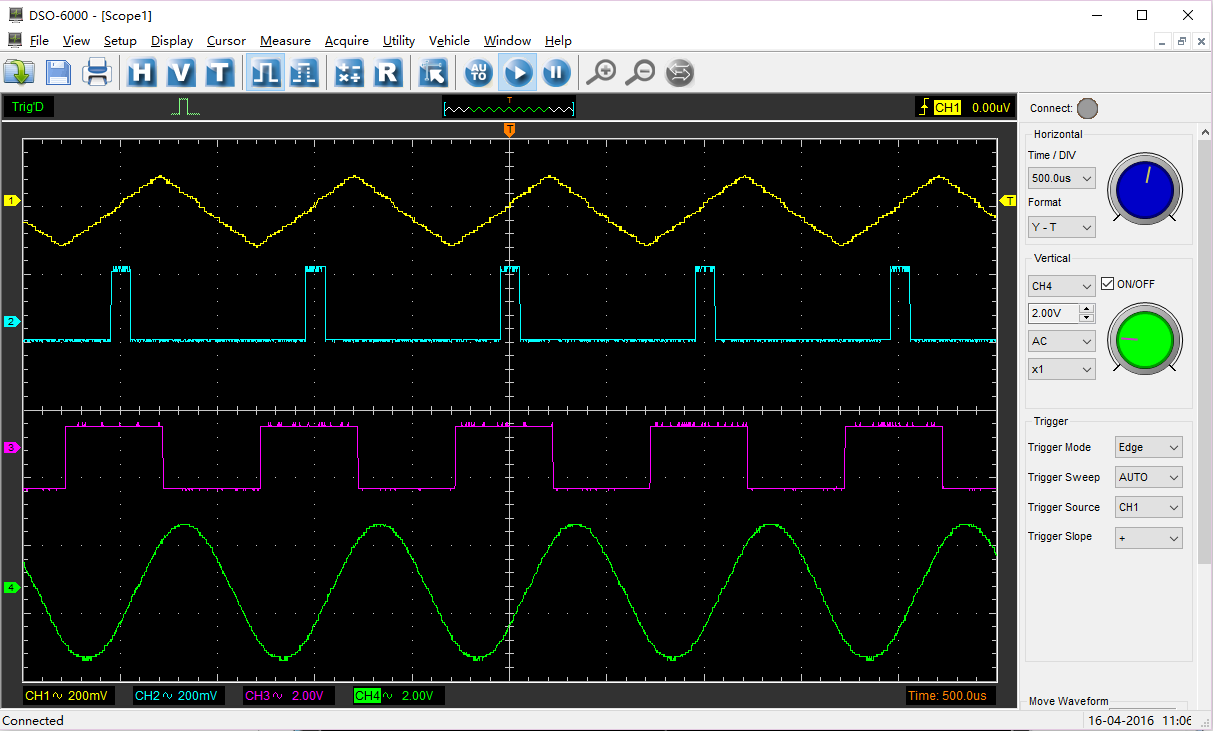

4 channels oscilloscope,
1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large
input range, 70MHz high bandwidth,
-
The waveform data could be output
to EXCEL,BMP,JPG.
-
Waveform averaging, afterglow,
lightness control, reverse, add, subtract, multiply, divide, X-Y display.
-
FFT spectrum analyzer
-
One computer could connect with
multiple oscilloscopes, expand the channel number easily.
-
Provide secondary development
library DLL; Provide Labview\VB\VC\QT developing examples.
