HANTEK rolled out new innovations in PC Based Oscilloscopes-HANTEK6082BE and HANTEK6052BE.
Feature
Excellent industrial design-
the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of
aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.
Accessories
Other Pictures
Characteristic
Hardware Specification
|
Model |
HANTEK6052BE |
HANTEK6082BE |
|
|
Channel |
2 |
2 |
|
|
Bandwidth |
50MHz |
80MHz |
|
|
Shot bandwidth |
DC to 50MHz |
DC to 80MHz |
|
|
Input Impedance |
1MΩ 25pF |
1MΩ 25pF |
|
|
Max. Sample Rate |
150MSa/s |
250MSa/s |
|
|
Coupling |
AC/DC/GND |
||
|
Vertical Resolution |
8bit |
||
|
Gain range |
10mV-5V, 9Steps |
||
|
DC accuracy |
±3% |
||
|
Timebase range |
4ns-1h, 38 Steps |
||
|
Vertical adjustable |
Yes |
||
|
Input protection |
Diode clamping |
||
|
X-Y |
Yes |
||
|
Autoset |
30Hz to 50MHz |
30Hz to 80MHz |
|
|
EXT. input |
Yes |
||
|
Trigger Mode |
Auto, Normal and Single |
||
|
Trigger Slope |
+/- |
||
|
Trigger level adjustable |
Yes |
||
|
Trigger Type |
Rising edge, falling edge |
||
|
Trigger Source |
CH1, CH2, EXT |
||
|
Pre/Post trigger |
0-100% |
||
|
Buffer Size |
10K-64KB/Channel |
||
|
Sampling selection |
Yes |
||
|
Waveform Display |
port/line, waveform average, persistence, intensity |
||
|
Network |
Open/Close |
||
|
Vertical mode |
CH1, CH2, Dual, ADD |
||
|
Cursor measurement |
Yes |
||
|
Math |
FFT, addition, subtraction, multiplication, division. |
||
|
Cursor |
Frequency, Voltage |
||
|
Data Samples |
10K-64K/Channel |
||
|

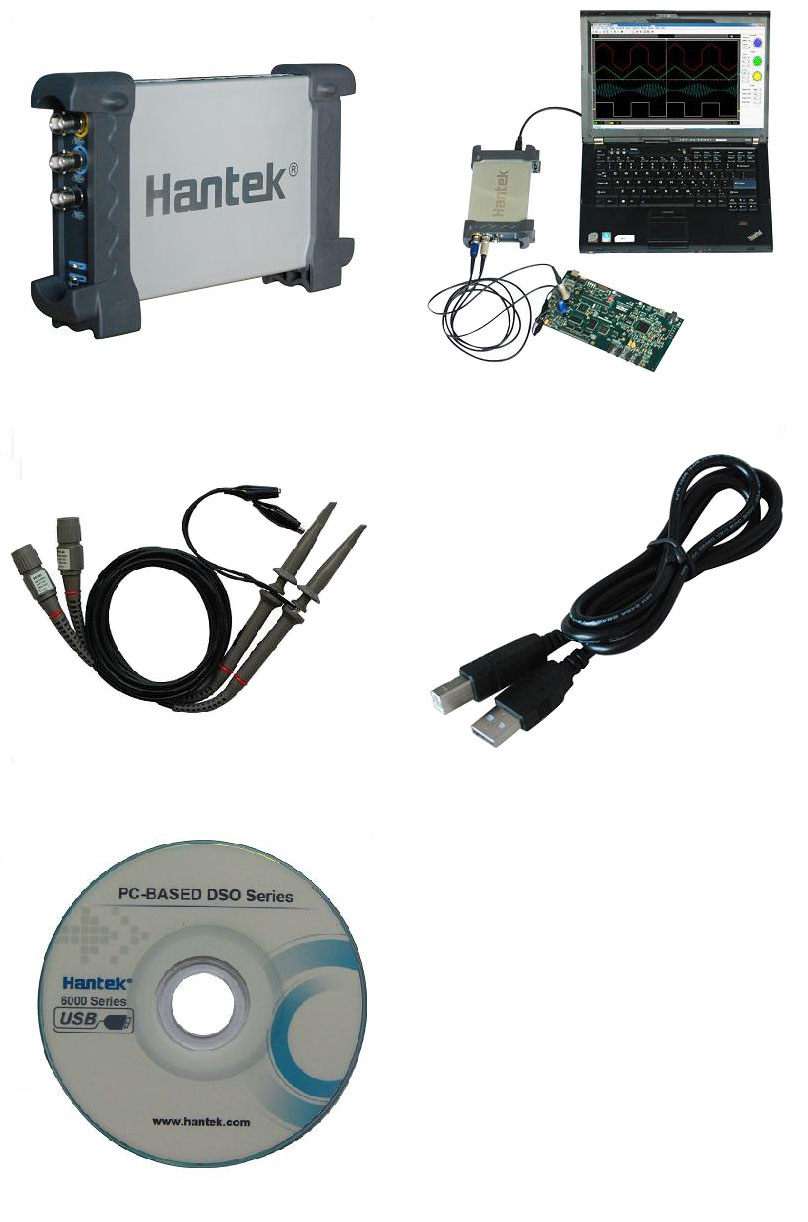

Accessories |
S/W CD, probes, manual, USB cord |
||
|
Interface |
USB2.0 |
||
|
Power Source |
No external power, bus-powered from USB |
||
|
Dimension |
205(L)mm X 120 (W)mm X 35 (H)mm |
||
Software
Operating system: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA
Second Design
Supply DEMO code(VC, CVI, VB, LABVIEW) and technical support
