Feature
*Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminium alloy surface, and has good heat resistance and strong wearability.
*5 in 1 multifunctional testing instrument: Oscilloscope/Logic Analyzer/Arb. Waveform Generator/FFT Spectrum Analysis/Frequency Counter.
*16M memory depth oscilloscope; 16 data input channels and 16M sample depth logic analyzer; 200MSa/s DDS arb. waveform generator; Plug and play USB 2.0 interface, LAN and WIFI option.

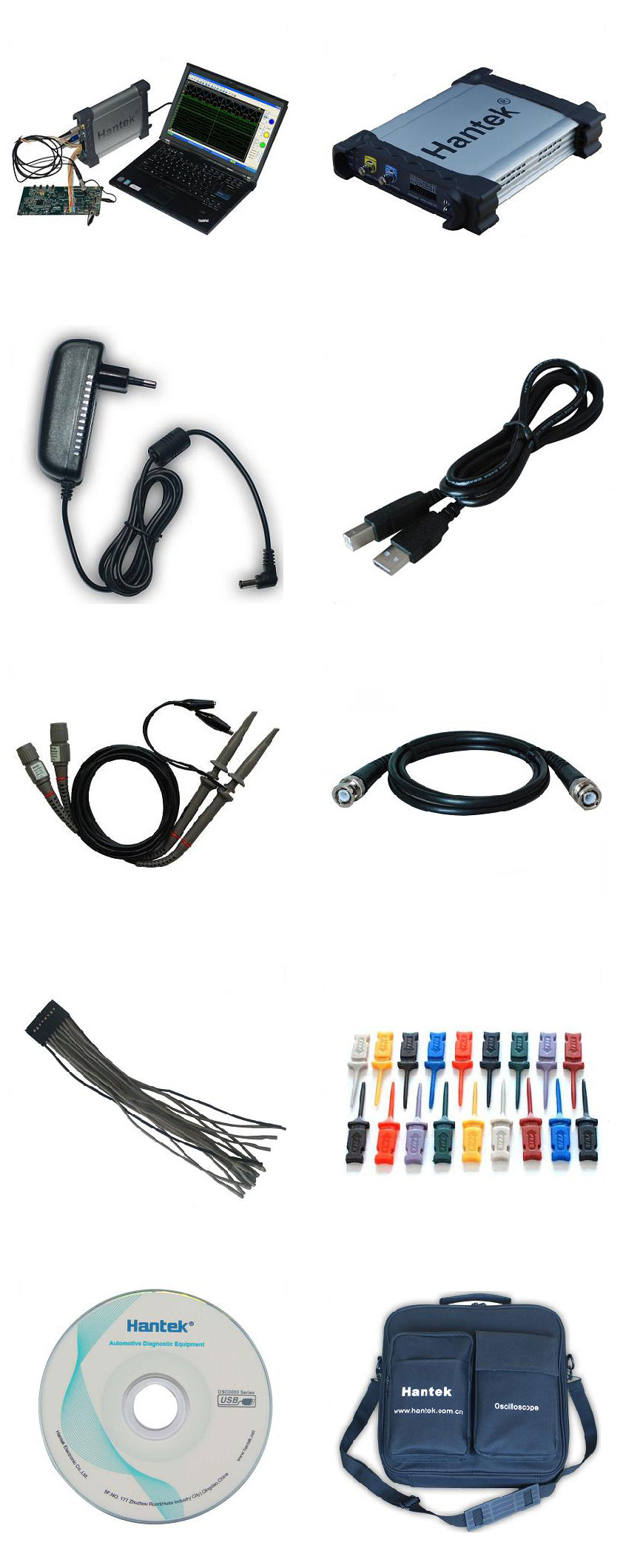

Standard Accessories
Optional Accesscories
LAN PCB (HT312)

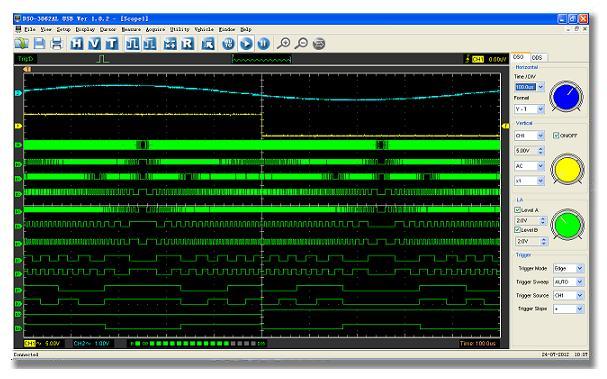

Other Pictures
Characteristic
Oscilloscope/Logic Analyzer/Arb. Waveform Generator/FFT Spectrum Analysis/Frequency Counter 5 in 1 Multifunctional Testing
Instrument.
Oscilloscope:
2 Channel and EXT trigger, 60MHz Bandwidth.
200MSa/s real-time sampling rate,10k—16M memory depth per Channel.
Arbitrary Waveform Generator:
25MHz arbitrary waveform output, (sine wave can deliver up to 75MHz) 200MSa/s; DDS,12bits of vertical resolution.
Frequency Counter, FFT spectrum analysis.
10MHz bandwidth, 100MHz max sample rate, 10K-68M memory depth per Channel
Others:
8--36V Wide range of input voltage, suitable for vehicle power test.
USB 2.0 interface plug and play, LAN and WIFI optional.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application.
Excellent industrial design, similar interface with bench oscilloscope, easy to use.
Software support : Windows NT, Windows 2000, Windows XP, VISTA, Windows 7
Supply DEMO code (VC, VB, LABVIEW) and technical support.
Hardware Specification
|
Model |
DSO3062AL |
DSO3062L |
|||
|
Oscilloscope Mode |
Vertical |
Analog Channels |
2 |
||
|
Bandwidth |
60MHz (-3dB) |
||||
|
Rise Time |
5.8ns |
||||
|
Input Impedance |
Resistance: 1MΩ; Capacitance: 25 pF |
||||
|
Input Sensitivity |
10mV/div to 5V/div |
||||
|
Input Coupling |
AC/DC/GND |
||||
|
Vertical Resolution |
8 bits |
||||
|
Maximum Input |
400V (DC AC Peak) |
||||
|
Horizontal |
Real-Time Sampling Rate |
200MS/s |
|||
|
Memory Depth |
16M/CH |
||||
|
Time Base Range |
5ns/div to 1000s/div (1-2-5 sequences) |
||||
|
Time Base Precision |
±50ppm |
||||
|
Trigger |
Source |
CH1, CH2, EXT |
|||
|
Mode |
Edge, Pulse, Viedo, Alternative |
||||
|
X-Y Mode |
X-Axis Input |
CH1/CH2 |
|||
|
Y-Axis Input |
CH2/CH2 |
||||
|
Phrase Shift |
Max.3 degree |
||||
|
Cursors And Measurement |
Voltage Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot |
|||
|
Time Measurement |
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
||||
|
Cursors Measurement |
Horizontal ,Vertical, Track, Auto Measure |
||||
|
Waveform Signal Process |
+,- , x,÷, FFT, Invert | ||||
|
Auto Set |
|
Yes |
|||
|
Voltage Range |
|
10mV to 5V/div @ x 1 probe |
|||
|
100mV to 50V/div @ x 10 probe |
|||||
|
1V to 500V/div @ x 100 probe |
|||||
|
10V to 5000V/div @ x 1000 probe |
|||||
|
100V to 50000V/div @ x 10000 probe |
|||||
|
200mV to 100V/div @ 20:1 |
|||||
|
Current Range |
|
CC65(20A), CC65(60A), CC650, CC1100 |
|||
|
Cursor |
|
Time/frequency difference, voltage difference |
|||
|
FFT |
|
Rectangular, Hanning, Hamming, Blackman Window |
|||
|
Math |
|
Adition, subtraction, multiplication, division |
|||
|
Arbitrary Waveform Generator Mode |
Waveform Frequency |
DC~25MHz |
Not Available |
||
|
DAC |
2K~200MHz adjustable |
||||
|
Frequency Resolution |
0.10% |
||||
|
Channel |
1CH waveform output |
||||
|
Waveform Depth |
4KSa |
||||
|
Vertical Resolution |
12bit |
||||
|
Frequency Stability |
<30ppm |
||||
|
Wave Amplitude |
±3.5V Max. |
||||
|
Output Impedance |
50Ω |
||||
|
Output Current |
50mA Ipeak=50mA |
||||
|
System BW |
25M |
||||
|
Harmonic Distortion |
-50dBc(1KHz), -40dBc(10KHz) |
||||
|
Logic Analyzer Mode |
Channel |
16 |
|||
|
Max. input impedance |
200K (C=10p) |
||||
|
Input Voltage range |
-60V~60V |
||||
|
Logic threshold range |
-6~6V |
||||
|
Max Sample Rate |
100MHz |
||||
|
Bandwidth |
10MHz |
||||
|
Compatiable input |
TTL,LVTTL,CMOS,LVCOMS,ECL,PECL,EIA |
||||
|
Storage depth |
16M/CH |
||||
|
Power Source |
8--36V Wide range of input voltage |
||||
|
Mechanics |
Volume |
255 x 190 x 45 (mm) |
|||
|
Weight |
1Kg |
||||
Software
Operating system: Windows 2000, Windows XP, VISTA, Windows 7
Second Design
Supply DEMO code (VC, VB, ABVIEW) and technical support.
