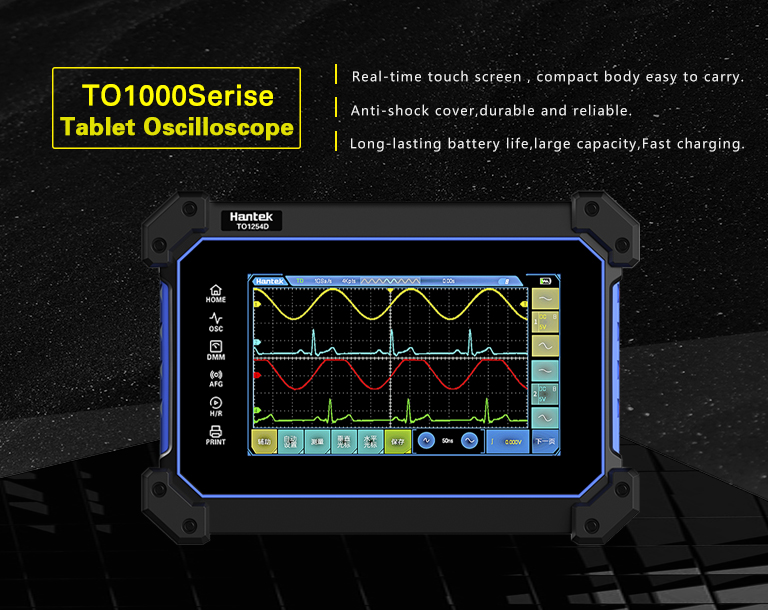

On 9th Sep. 2022, Hantek released a new generation of TO1000 series multi-function full touch screen oscilloscope.The new generation of TO1000 series multi-functional full touch screen oscilloscope has a thin body, light weight and is easy to carry；Unique hanging design, hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and spectrum analyzer; Built in super large capacity battery, long endurance, support fast charging, and abundant power.

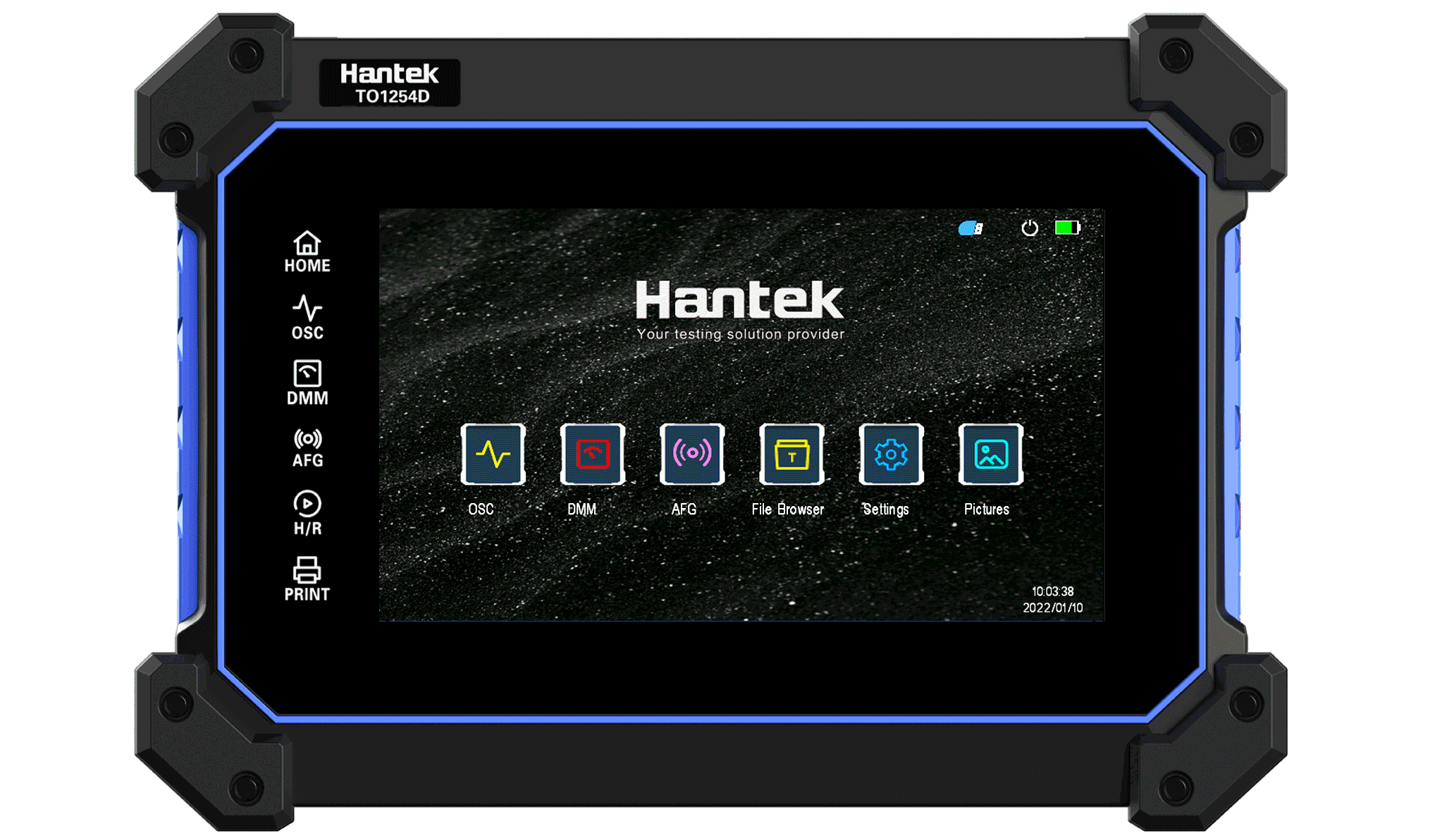

Integrates multiple functions
Digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.

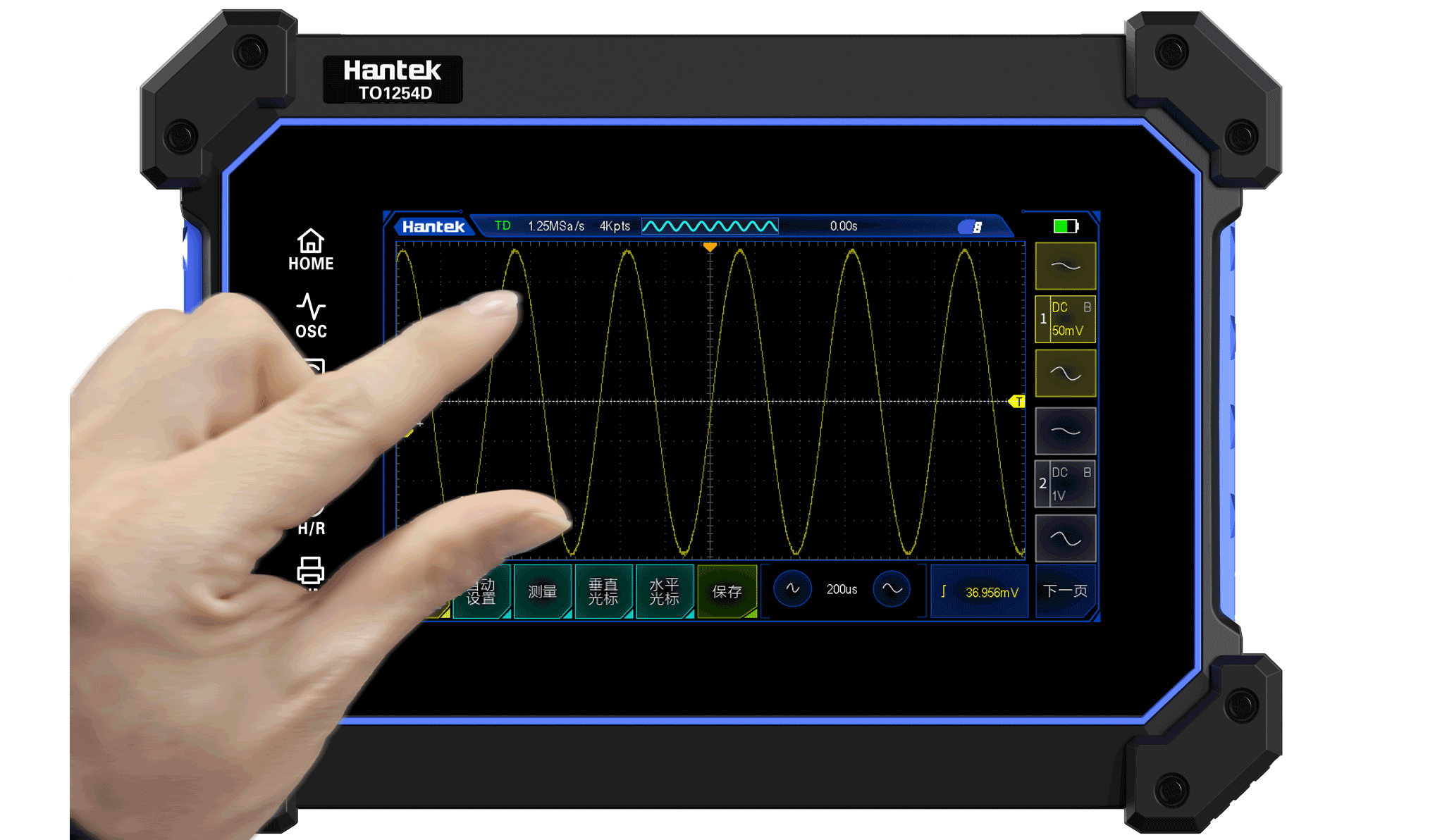

Four channel digital storage oscilloscope
Bandwidth up to 250MHz, 1GSa/ s high sampling rate, 8M large storage depth;
Edge, slope, pulse width, video, timeout and other triggers;
Up to 42 measurement functions.

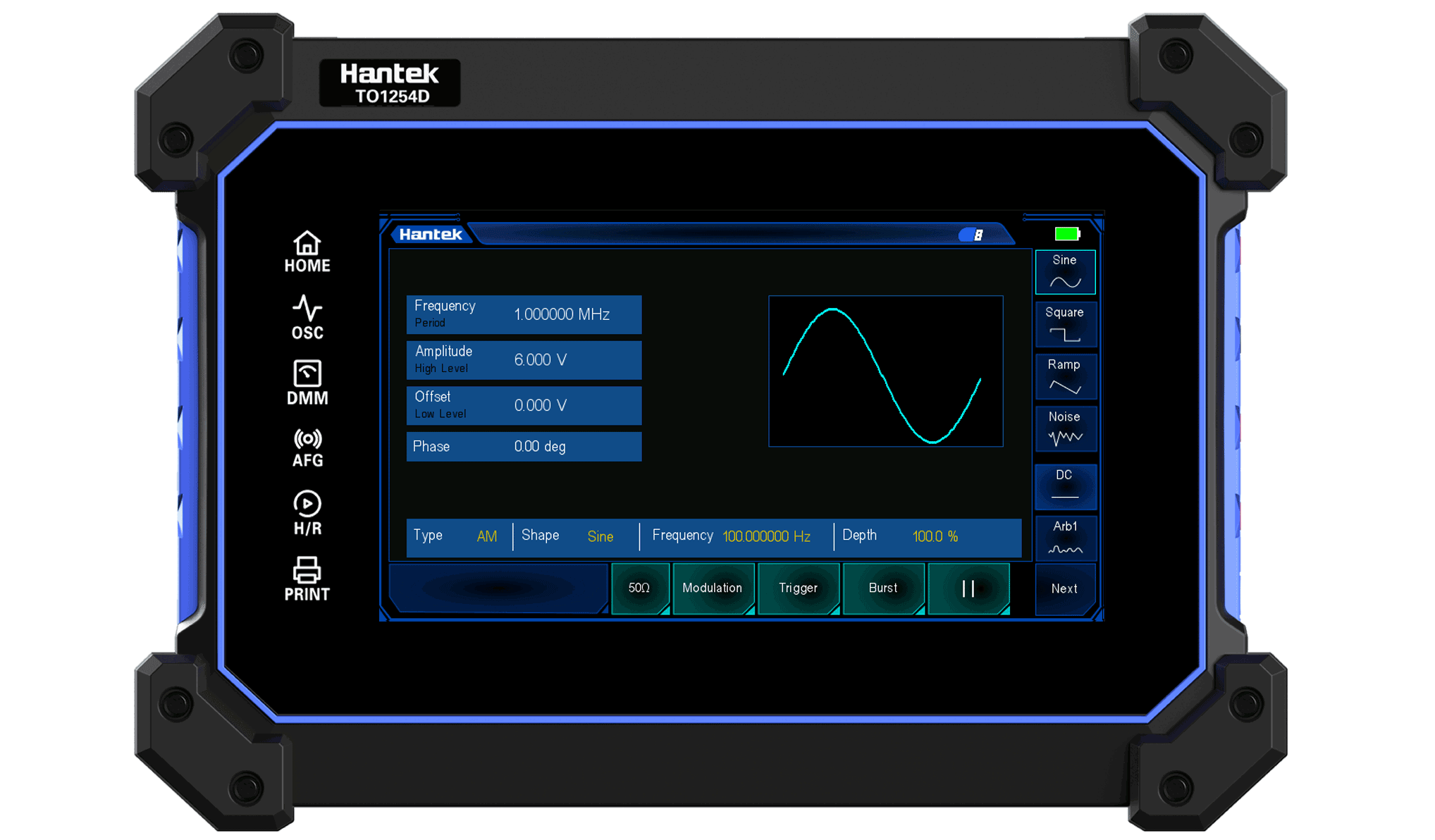

Function of arbitrary function signal generator
The highest output frequency reaches 25MHz, 12bit high resolution, 200Ms / s high sampling rate;
Built in a variety of arbitrary waves, support AM / FM modulation, output high resistance and low resistance can be switched.

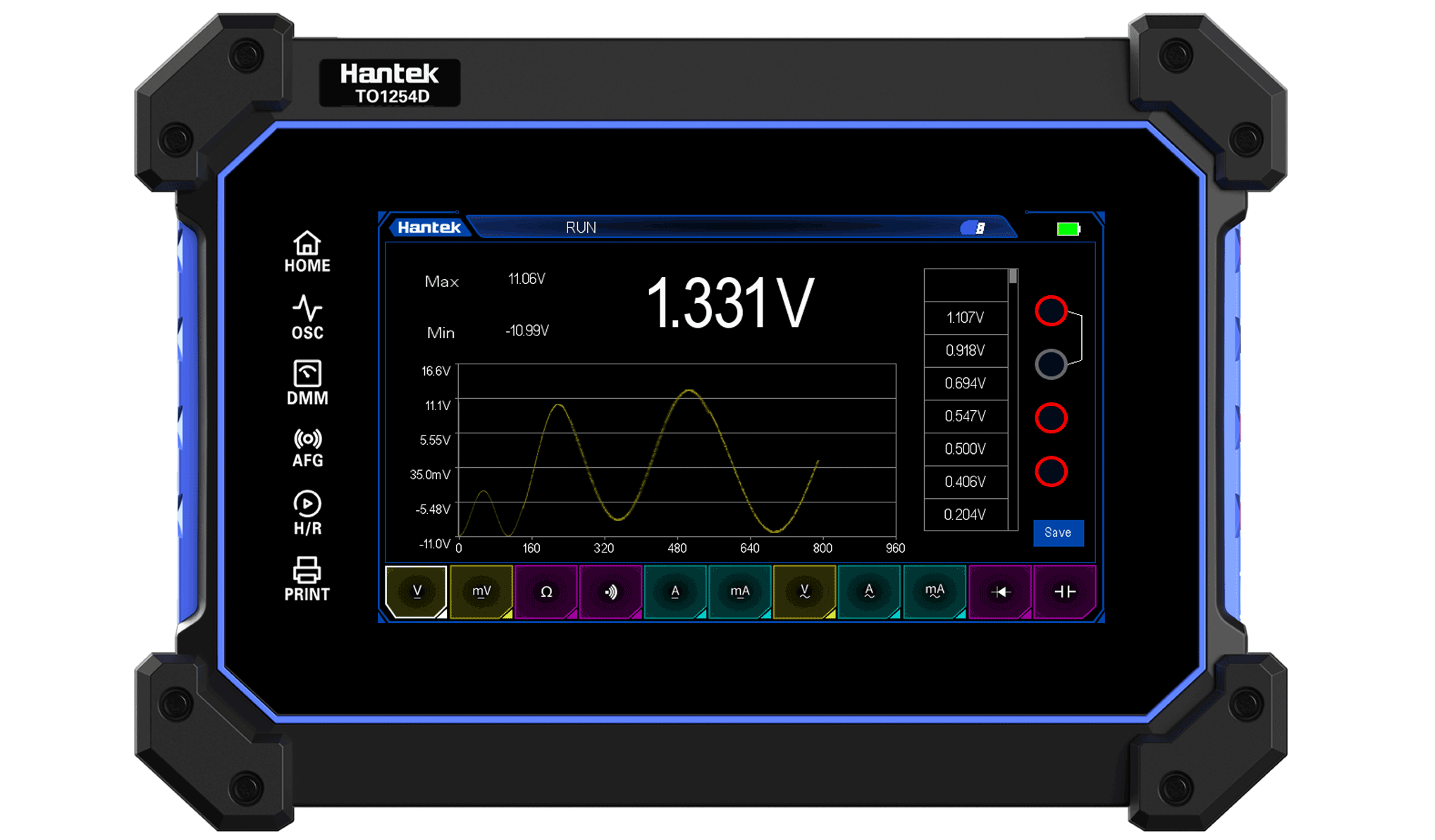

Digital multimeter function
AC and DC voltage, current, resistance, capacitance, diode, on-off measurement;
The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
Suspension foot、hands-free
Unique suspension foot design, free hands;
It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.

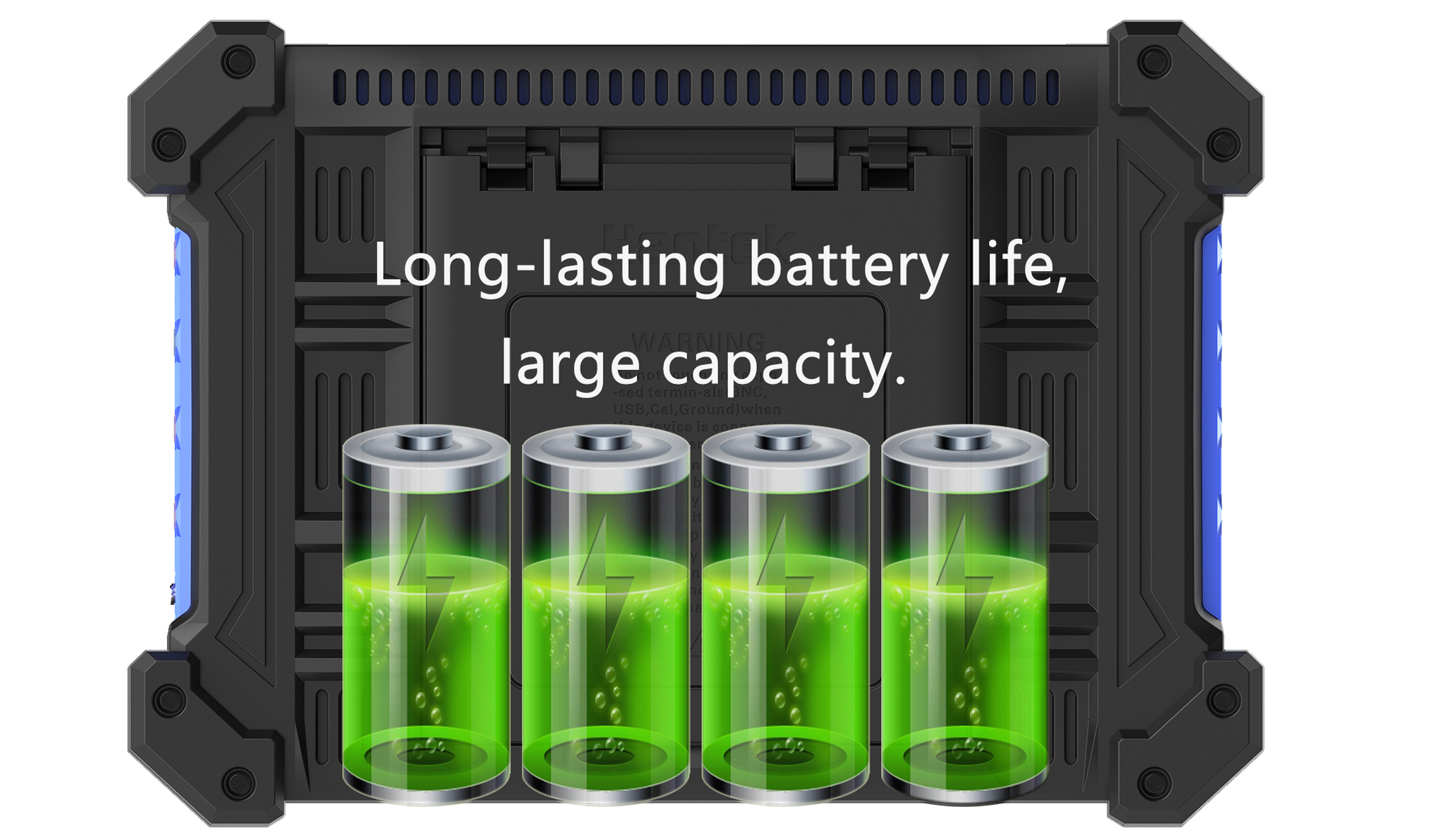

High power and long endurance
Built in 10000mah detachable lithium battery;
Full power, long endurance and standby time of up to half a year.

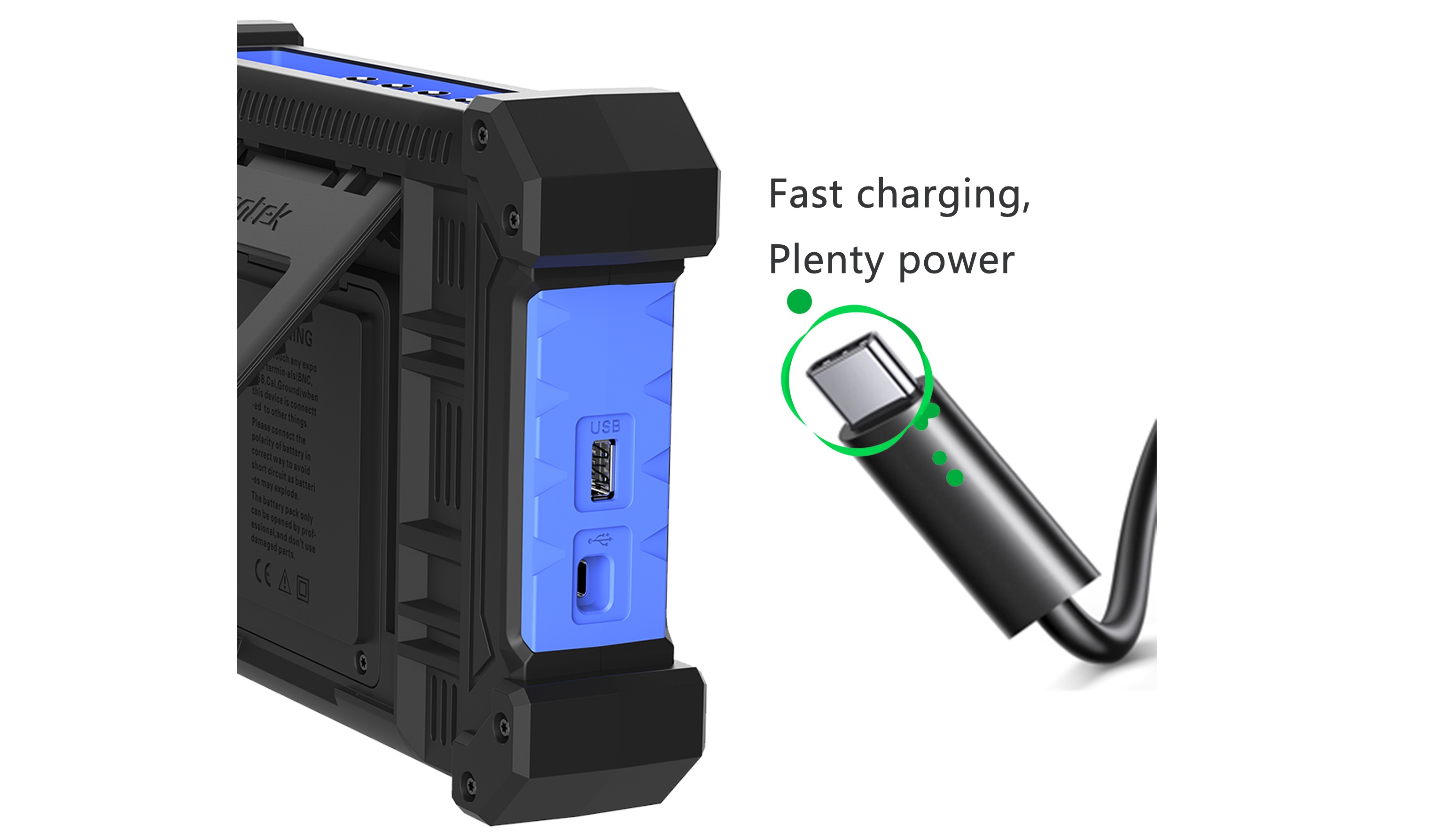

Support multiple fast charging protocols
Standard 18W charger for fast charging;
The type-C interface is compatible with mobile phones and can share a set of charging equipment.
