Hantek launched DPO6000 series 4 channels digital phosphor oscilloscope
October 8, 2018
1162
0

Hantek launched DPO6000 series 4 channels digital phosphor oscilloscope.DPO6000 series has 6 functions:4 channels oscilloscope,16 channels logic analyzer,2 channels waveform generator,digital voltmeter,serial protocol analyzer,FFT spectral analysis;bandwidth up to 200M,memory depth 64 Mpts,support segment storage(up to 80,000);the background noise is superior to the similar products in the market,up to 500uV/div;waveform capture rate is up to 400,000 fps(Sequence mode ),256-level intensity grading display and color temperature display;support multiple triggering modes,including serial bus triggering and decoding;compatible with SCPI command of mainstream oscilloscopes in the market.




 4 channels oscilloscope+2 channels waveform generator+16 channels logic analyzer,logic analyzer function can plug and play.Waveform generator function can extend to 3 channels.

 Digital fluorescence display,color temperature display,support 256-level intensity grading display and color temperature display

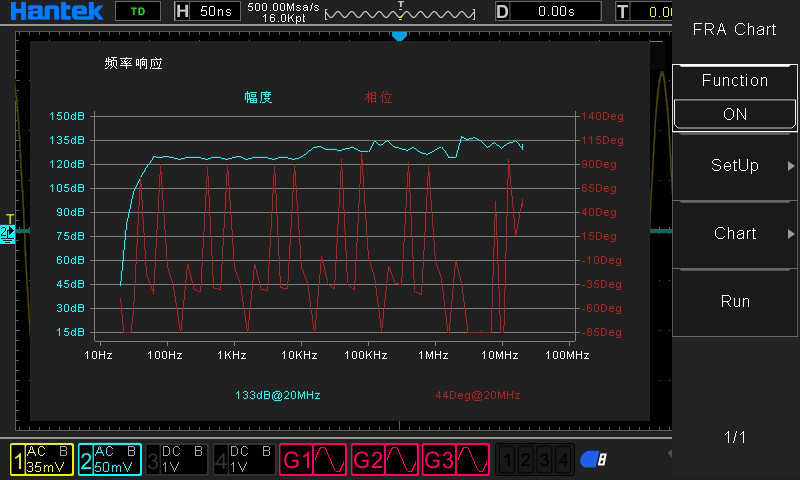

 Support bode diagram function Perform amplitude-frequency and phase-frequency characteristic scans,the results can be presented in a bode diagram or tabular form,the analysis of amplitude-frequency characteristics is more intuitive to the user


  Waveform capture rate is up to 400,000 fps,it can minimize the dead time of oscilloscope,capture abnormal signals and mutation signals


 FFT function scale display,support FFT,differential,integral and sqrt operation

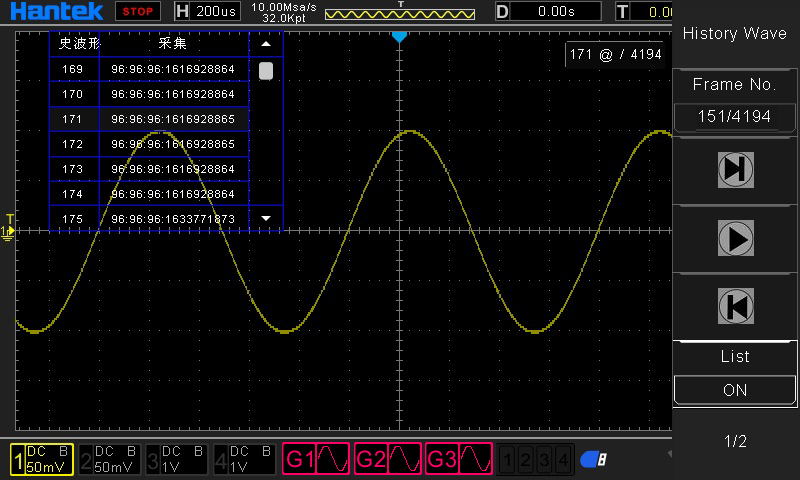

  Segmented acquisition and history waveform,up to 80,000 segments


 16 digital channels,multiple level selection,support user-defined level


 64M memory depth,take the waveform global and display more details


  7 inch capacitive touch screen operation

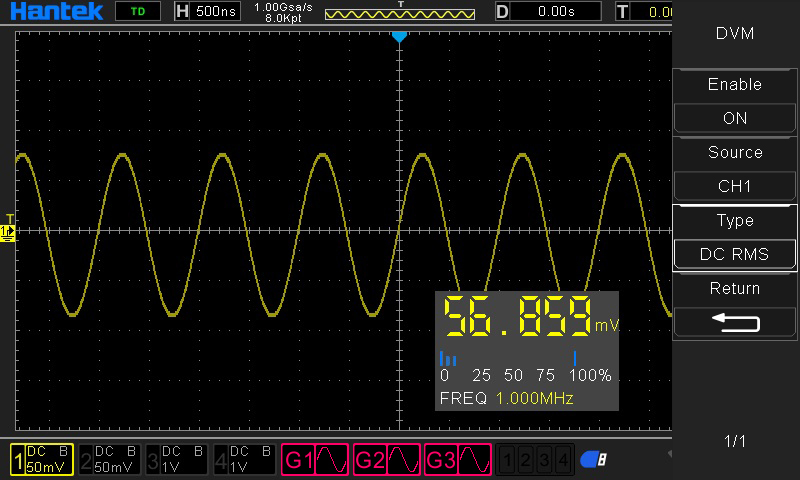

  5 bits digital voltmeter and 6 bits frequency meter function
